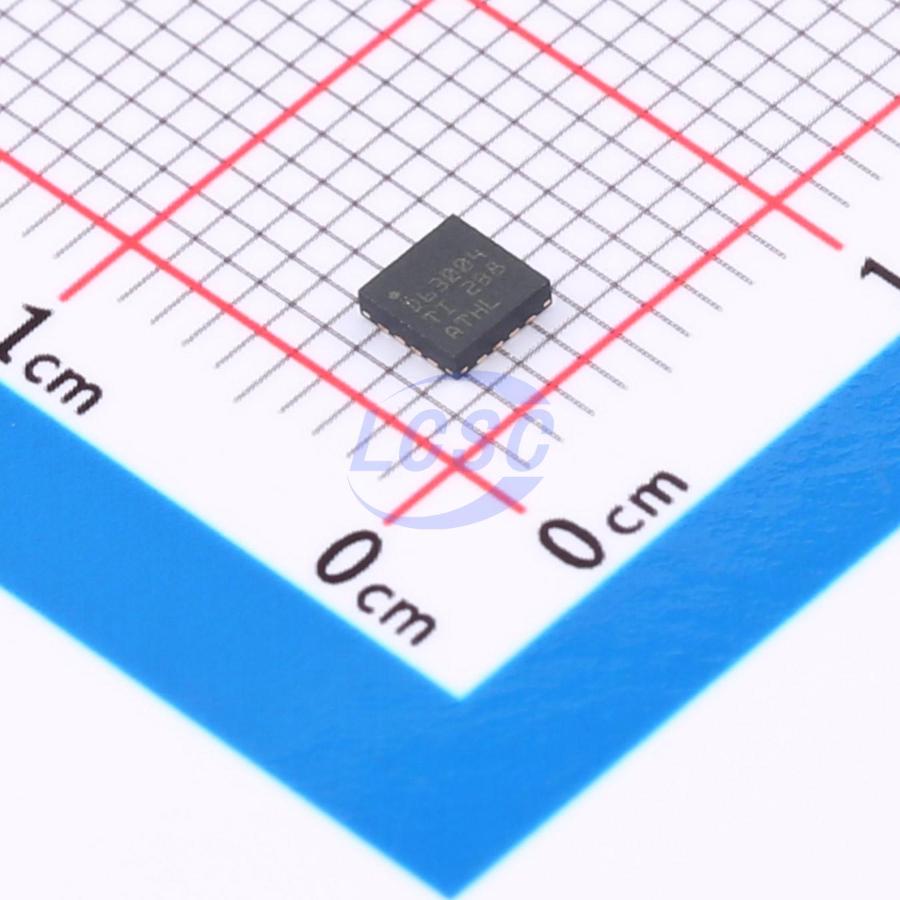

DAC63004RTER

The 12-bit DAC63004 and 10-bit DAC53004 (DACx3004) are a pin-compatible series of ultra-low-power, quad-channel, buffered, voltage-output and current-output smart digital-to-analog converters (DACs). These DACx3004 devices support a high-impedance power-down mode and provide high-impedance outputs when powered down. The DAC outputs offer a force-sense option and can be used as programmable comparators and current sinks. Multi-function GPIOs, function generation, and NVM make these smart DACs suitable for processorless applications and design reuse. These devices automatically detect I2C, PMBus, and SPI interfaces and include an internal reference. The combination of these feature sets with a tiny package and ultra-low power makes these smart DACs ideal for bias, calibration, and waveform generation in land mobile radios, pulse oximeters, laptops, and other battery-powered applications.

Applications

• Land mobile radio
• Pulse oximeter
• Optical module
• Standard laptop computer

Key features

• Programmable voltage or current output with flexible configuration
• Voltage output: 1LSB INL and DNL (10-bit), 1x, 1.5x, 2x, 3x, and 4x gain
• Current output: 1LSB INL and DNL (8-bit), unipolar and bipolar output range options from 25μA to 250μA
• 35μA/channel IDD in voltage output mode
• Programmable comparator mode for all channels
• High-impedance output when VDD is off
• High-impedance and resistive pull-down power-down modes
• 50MHz SPI-compatible interface
• Auto-detect I2C, PMBus, or SPI interface
• 1.62V VIH (ΔVDD = 5.5V)
• GPIO configurable for multiple functions
• Predefined waveform generation: sine, triangle, sawtooth
• User-programmable NVM
• Internal, external, or supply reference
• Wide operating voltage range: 1.8V to 5.5V supply, -40°C to +125°C temperature range
• Compact package: 16-pin WQFN (3mm×3mm)
