DIODESDatasheet (PDF)

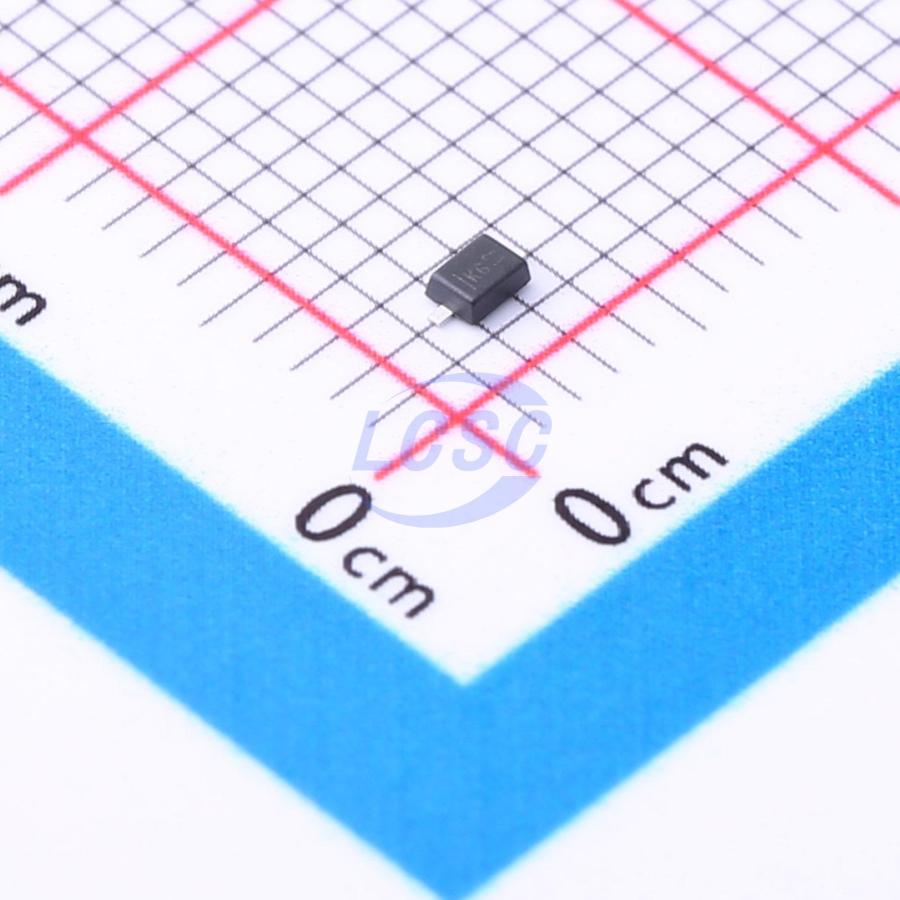

DDZ3V3BSF-7
Zener Diode 3.43V 500mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 3.43V 500mW SOD-323F
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ3V3BSF-7
- Store part #
- C156333
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,265 in stock
#C156333
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.19 | ₹90.95 |
| 50+ | ₹14.58 | ₹729.00 |
| 150+ | ₹12.77 | ₹1,915.50 |
| 500+ | ₹11.42 | ₹5,710.00 |
| 3,000+ | ₹10.33 | ₹30,990.00 |
| 6,000+ | ₹9.79 | ₹58,740.00 |
5 × ₹18.19
₹90.95
excl. GST
₹107.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ3V3BSF-7
₹90.95 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 20uA@1V
- Impedance(Zzt)
- 130Ω
- Zener Voltage(Range)
- 3.32V~3.53V
- Zener Voltage(Nom)
- 3.43V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Key features
- 500mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZ3V3ASF-7#C460851DIODES · SOD-323F | DIODES | SOD-323F | 1,205 | ₹32.24 · 1,205 in stock | View |
 | LUDZS3.3BT1G#C417301LRC · SOD-323 | LRC | SOD-323 | 1,880 | ₹3.36 · 1,880 in stock | View |
 | DDZ3V6ASF-7#C560270DIODES · SOD-323F | DIODES | SOD-323F | On request | ₹7.24 · 0 in stock | View |
 | UDZVTE-173.3B#C209557ROHM · SOD-323FL | ROHM | SOD-323FL | 20 | ₹3.59 · 20 in stock | View |
 | UDZSTE-173.3B#C559750ROHM · SOD-323FL | ROHM | SOD-323FL | 10 | ₹5.13 · 10 in stock | View |
