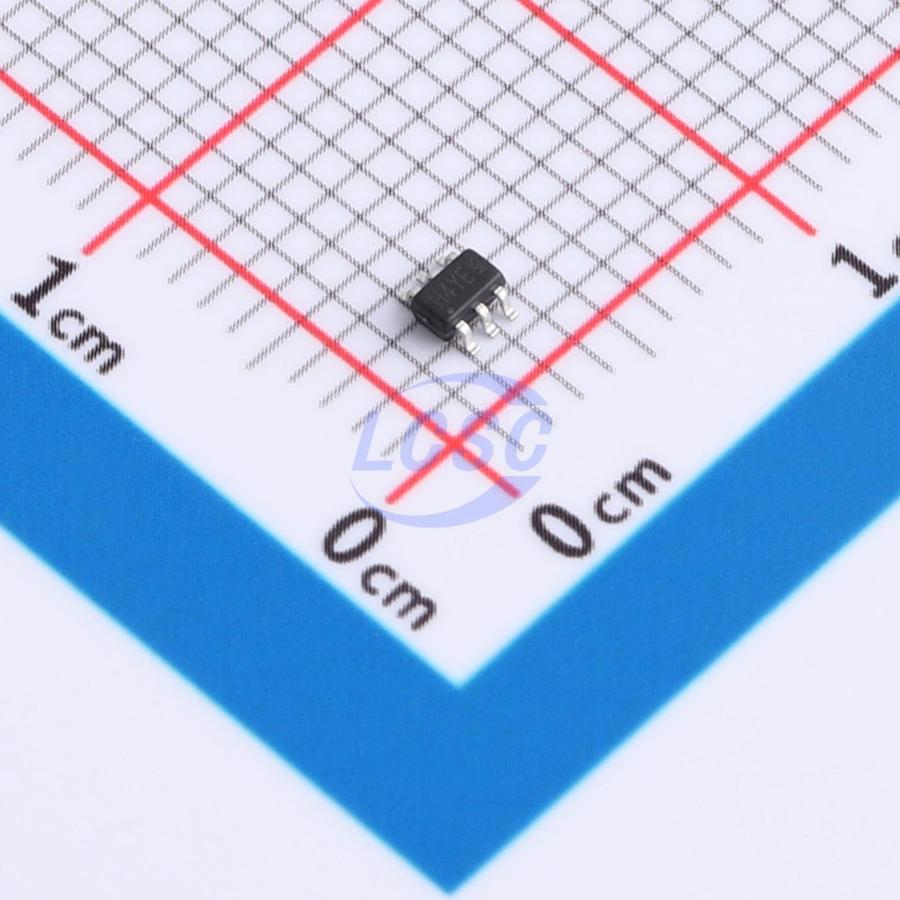

DG4157EDL-T1-GE3-MS

DG4157EDL-T1-GE3-MS is an advanced CMOS analog switch fabricated using silicon-gate CMOS technology. It achieves ultra-low propagation delay while maintaining the low power consumption characteristic of CMOS. Analog and digital voltages can swing across the full supply voltage range (from VCC to GND). The select pin features overvoltage protection, allowing voltages up to 6.0V above VCC to be present on the pin without damaging the device or disrupting its operation, regardless of the operating voltage.

Key features

• Low power consumption
• High speed
• Standard CMOS logic levels
• High bandwidth with improved linearity
• Switchable standard NTSC/PAL video, audio, SPDIF, and HDTV signals
• Suitable for clock switching, data multiplexing, and more
• Low on-resistance
• Break-before-make circuitry to prevent accidental short circuits
• Operating temperature range: -25℃ ~ +85℃
• Package: SC70-6
