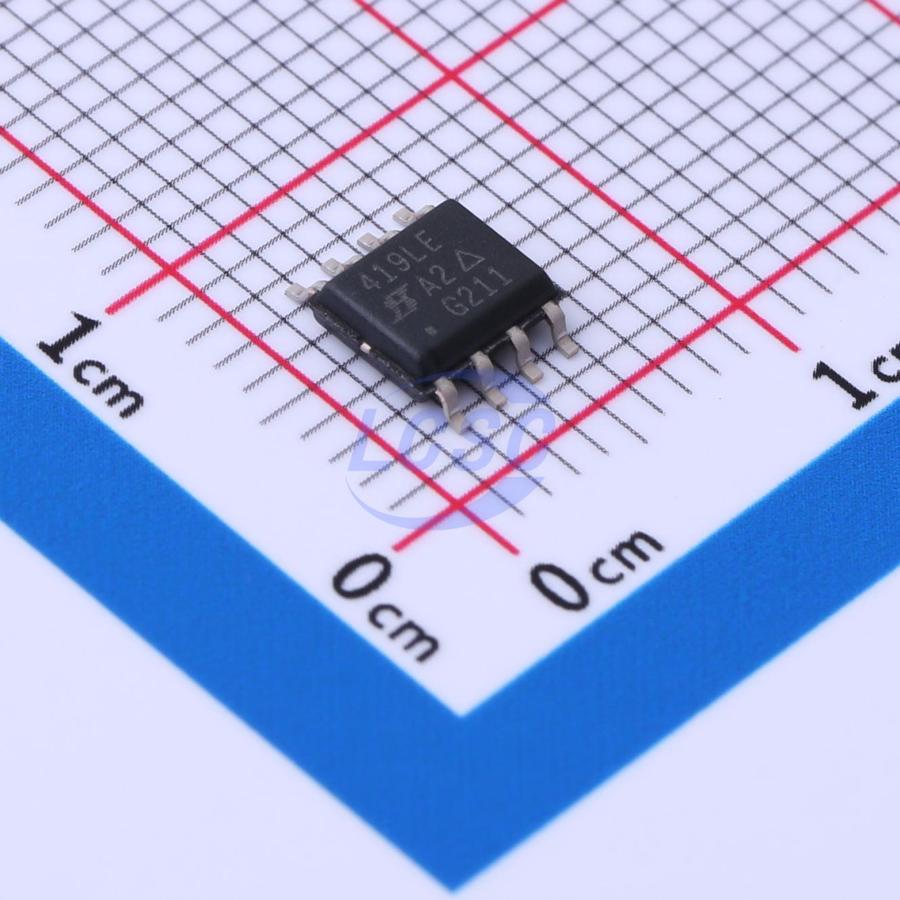

DG419LEDY-T1-GE4

DG417LE, DG418LE, DG419LE analog switches are designed to operate from +3 V to +16 V single supply or ±3 V to ±8 V dual supply and are fully specified at +12 V, ±5 V, +5 V, and +3 V. The DG417LE, DG418LE, DG419LE are lower voltage pin-for-pin compatible companion devices to the industry standard DG417, DG418, and DG419. Each switch conducts equally well in both directions when on, blocks input voltages up to the supply level when off, and exhibits break before switching action. Fabricated with advanced CMOS technology, the parts provide low on resistance and fast switching speed with low power dissipation. The DG417LE, DG418LE, DG419LE operating temperature range is -40 °C to +85 °C and devices are available in 8 lead TSSOP and SOIC packages.

Applications

• Data acquisition systems
• Medical instruments
• Precision instruments
• Communications systems
• Automated test equipment
• Sample and hold circuit
• Audio and video signal routing

Key features

• +3 V to +16 V single supply, or ±3 V to ±8 V dual supply
• On resistance: 6 Ω for DG417LE, DG418LE 11 Ω for DG419LE
• Fast switching speeds: ton = 20 ns, toFF = 15 ns
• Break-before-make switching for DG419LE
• Fully specified at +12 V, ±5 V, +5 V, and +3 V
• V+ to V- analog signal range
• CMOS / TTL compatible
• Control logic input can be over V+
• 8 pin TSSOP and 8 pin SOIC packages
