DIOODatasheet (PDF)

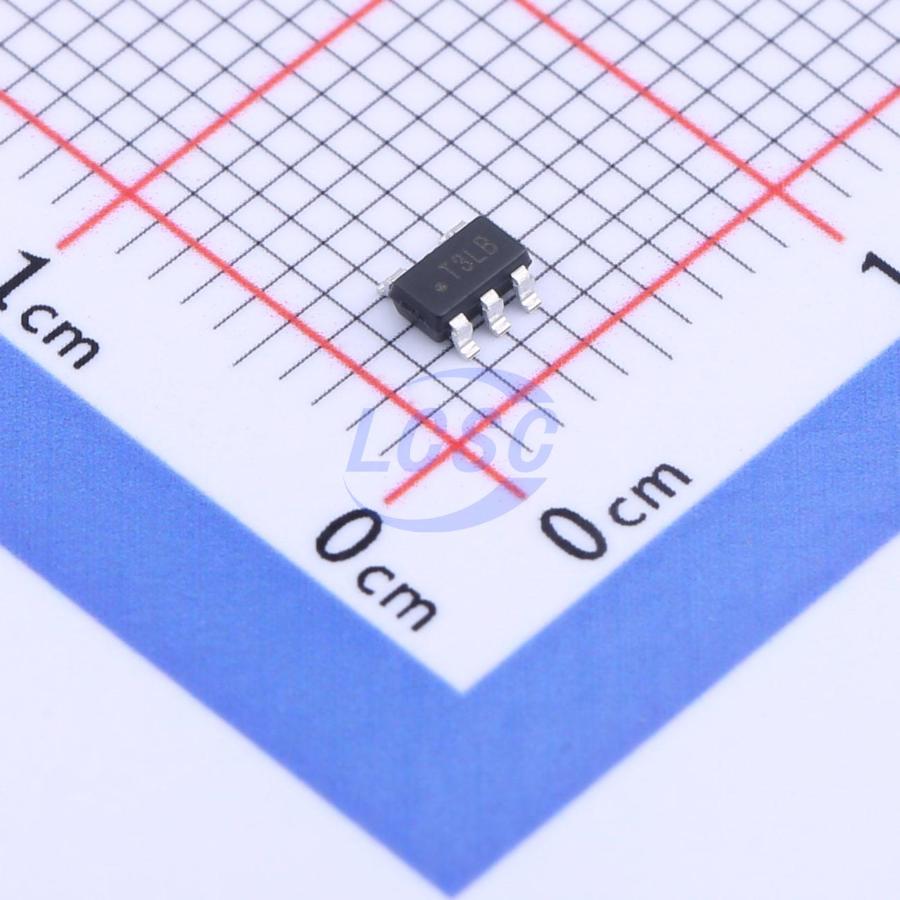

DIO7003LBST5
1 Active Low 700mA Load Switch SOT-23-5 Power Distribution Switches, Load Drivers RoHS
SOT-23-5ROHS CompliantActive
Low Loss Power Distribution Switch
- Manufacturer
- DIOO
- Manufacturer part #
- DIO7003LBST5
- Store part #
- C2920627
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,780 in stock
#C2920627
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.94 | ₹99.70 |
| 50+ | ₹16.00 | ₹800.00 |
| 150+ | ₹14.04 | ₹2,106.00 |
| 500+ | ₹12.56 | ₹6,280.00 |
| 3,000+ | ₹10.24 | ₹30,720.00 |
| 6,000+ | ₹9.64 | ₹57,840.00 |
5 × ₹19.94
₹99.70
excl. GST
₹117.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO7003LBST5
₹99.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking
- number of channels
- 1
- Control Input Logic
- Active Low
- Maximum Continuous Current
- 700mA
- RDS(on)
- 75mΩ
- Operating Voltage
- 2.7V~5.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
The DIO7003 power distribution switch is intended for applications where precision current limiting is required or heavy capacitive loads and short circuits are encountered. The power switch rising and falling times are controlled to minimize current surges during turning on/off. The DIO7003A/B/C/D/E provide separately 350mA/700mA/1A/1.5A/2A five current levels. The DIO7003 device limits the output current under a safe level by using a constant current mode when the output load exceeds the current limit threshold. The DIO7003 is available in the SOT23-5, SOIC-8, EP-MSOP8 and MSOP-8 packages. It is rated over the -40°C to ±85°C temperature range.
Applications
- USB Ports/Hubs
- Digital TV Set-Top Boxes
- VOIP Phones
Key features
- Input voltage: 2.7V to 5.5V
- Five different continuous current versions
- Enable polarity: active high or active low
- Over temperature protection
- Reverse blocking (no body diode)
- OUT can be forced higher than IN at shutdown
- Compact SOT23-5, SOIC-8, EP-MSOP8 and MSOP-8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DIO7002BST5#C5140058DIOO · SOT-23-5 | DIOO | SOT-23-5 | 2,890 | ₹20.85 · 2,890 in stock | View |
