DIOO

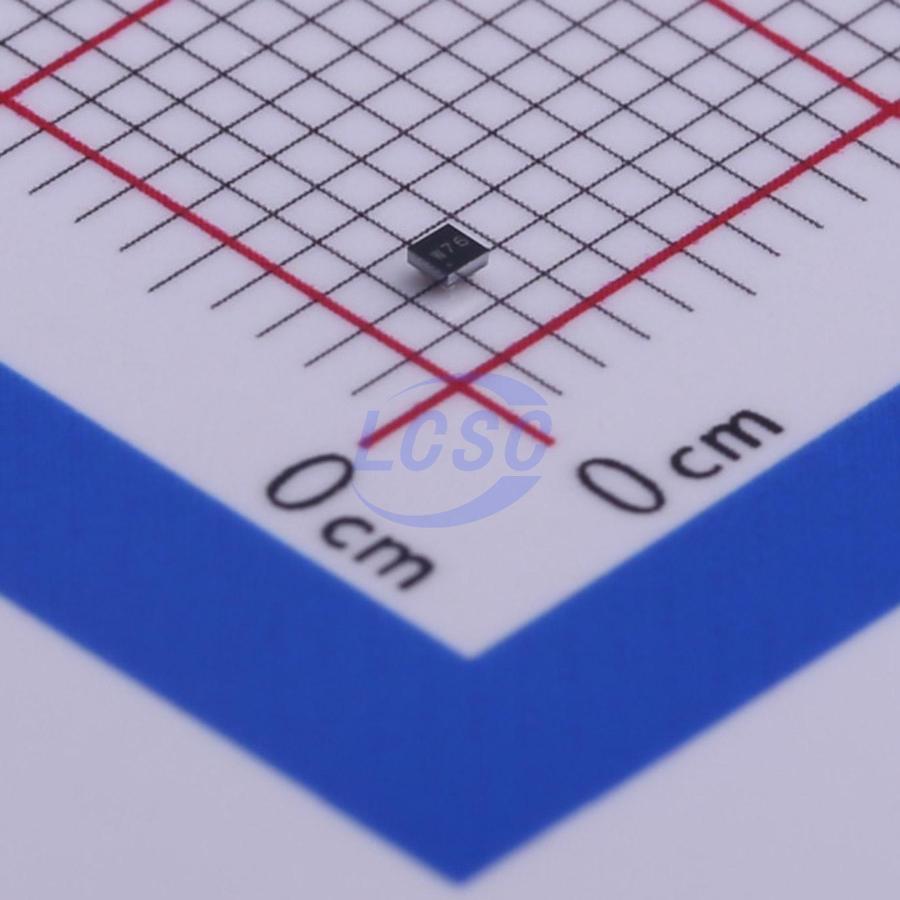

DIO7296WL4

Active High 500mA Load Switch WLCSP-4 Power Distribution Switches, Load Drivers

WLCSP-4RoHSActive

Ultra-Small, Low-Input Voltage, Low Ron Load Switch

Manufacturer: DIOO
Manufacturer part #: DIO7296WL4
Store part #: C444648
Package / case: WLCSP-4
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,550 in stock

#C444648

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹14.74	₹73.70
50+	₹12.93	₹646.50
150+	₹12.16	₹1,824.00
500+	₹11.19	₹5,595.00
3,000+	₹10.28	₹30,840.00
6,000+	₹10.03	₹60,180.00

Quantity (min 5, multiples of 5)

5 × ₹14.74

₹73.70

excl. GST

₹86.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

DIO7296WL4

₹73.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Output discharge function;Soft-start
Control Input Logic: Active High
Maximum Continuous Current: 500mA
RDS(on): 201mΩ
Operating Voltage: 1V~5.5V
Type: Load Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.024 g

Overview

DIO7296 device is an ultra-small, low ON-state resistance(Ron) load switch with controlled turn on. The device contains a P-channel MOsFET that operates over an input voltage range of 1.0V to 5.5V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low voltage control signals. A 120Ω on chip load resistor is added for output quick discharge when the switch is turned off. Dlo7296 is available in a space saving 4 terminal WLcSP with 0.5mm pitch (YZV). The device is characterized for operation over the free-air temperature range of -40°C to 85°C

Applications

Personal Digital Assistants (PDAs)
Cellular Phones
GPS Devices
MP3 Players
Digital Cameras
Peripheral Ports
Portable Instrumentation
RF Modules

Key features

Low-Input Voltage: 1.0V to 5.5
Ultra-Low ON-State Resistance
500mA Maximum Continuous Switch Current
Ultra-Low Quiescent Current: 72nA at 1.8V
Ultra-Low Shutdown Current: 41nA at 1.8V
Low Control Input Thresholds Enable Use of 1.2V/1.8V/2.5V/3.3V/5V Logic
Controlled Slew Rate to Avoid Inrush Current: 244μs tr
Four-Terminal Wafer-Chip-Scale Package (WLCSP) 0.9mm x 0.9mm, 0.5mm Pitch, 0.5mm Height
