DIODESDatasheet (PDF)

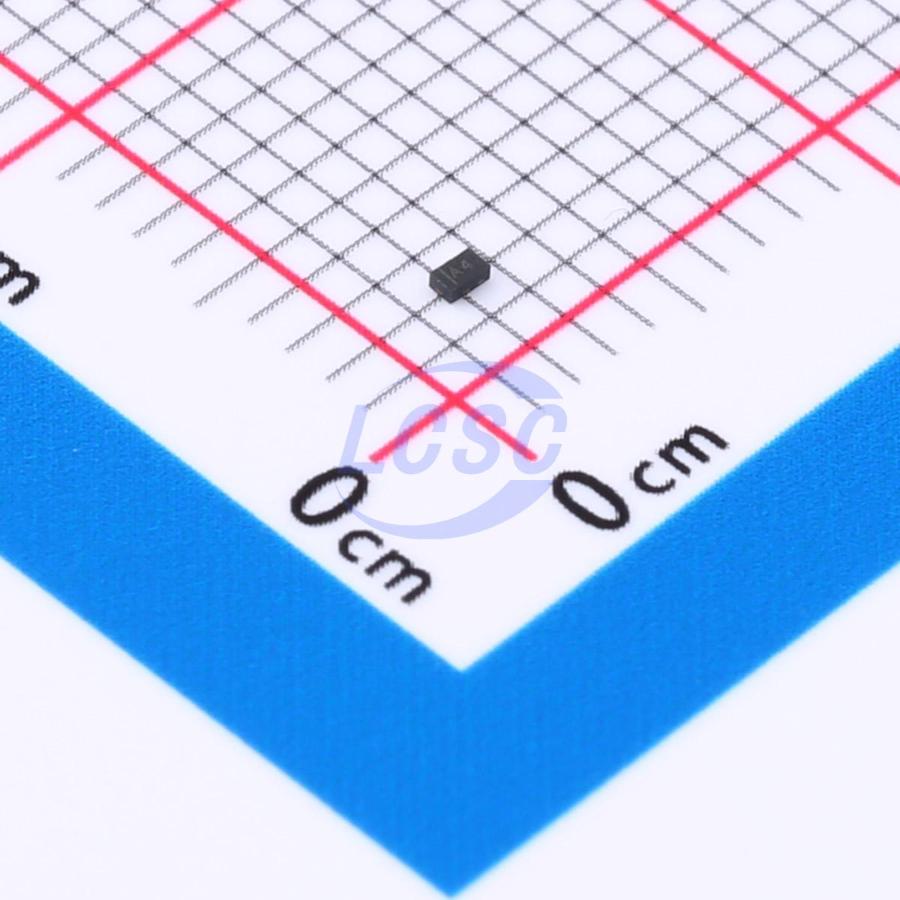

DLLFSD01LPH4-7B
Diode 80V 100mA Surface Mount X2-DFN1006-2
X2-DFN1006-2ROHS3 CompliantActive
DIODE GP 80V 100mA X2-DFN1006-2
- Manufacturer
- DIODES
- Manufacturer part #
- DLLFSD01LPH4-7B
- Store part #
- C5157738
- Package / case
- X2-DFN1006-2
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C5157738
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.02 | ₹80.20 |
| 100+ | ₹6.46 | ₹646.00 |
| 300+ | ₹5.68 | ₹1,704.00 |
| 1,000+ | ₹4.90 | ₹4,900.00 |
| 5,000+ | ₹4.42 | ₹22,100.00 |
| 10,000+ | ₹4.19 | ₹41,900.00 |
10 × ₹8.02
₹80.20
excl. GST
₹94.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DLLFSD01LPH4-7B
₹80.20 for 10 + GST
Specifications
- Reverse Recovery Time (trr)
- 4ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 80V
- Pd - Power Dissipation
- 350mW
- Voltage - Forward(Vf@If)
- 1.2V@100mA
- Reverse Leakage Current (Ir)
- 10nA
- Current - Rectified
- 100mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
Key features
- Ultra-Small, Leadless Surface Mount Package (1.0×0.6mm)
- Ultra-Low Profile Package (0.4mm)
- Fast Switching Speed, Fast Reverse Recovery Time
- Ultra-Low Reverse Leakage Current (∼5nA @ VR = 5V)
- Very Low Capacitance (<1pF @ VR = 0V)
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAS16LTH-G3-08#C17345152VISHAY · DFN1006-2A | VISHAY | DFN1006-2A | 397 | ₹61.36 · 397 in stock | View |
 | BAS16LS-QYL#C5259064Nexperia · SOD-882 | Nexperia | SOD-882 | 1,790 | ₹46.95 · 1,790 in stock | View |
 | DK400LED02#C2910448JSCJ · WBFBP-02C | JSCJ | WBFBP-02C | 6,720 | ₹2.92 · 6,720 in stock | View |
 | TPL1SS400BST5G#C28642294TECH PUBLIC · DFN-2L(1x0.6) | TECH PUBLIC | DFN-2L(1x0.6) | 9,800 | ₹4.63 · 9,800 in stock | View |
 | TPLBAS16BST5G#C28642295TECH PUBLIC · DFN-2L(1x0.6) | TECH PUBLIC | DFN-2L(1x0.6) | 340 | ₹4.25 · 340 in stock | View |
