HXY MOSFETDatasheet (PDF)

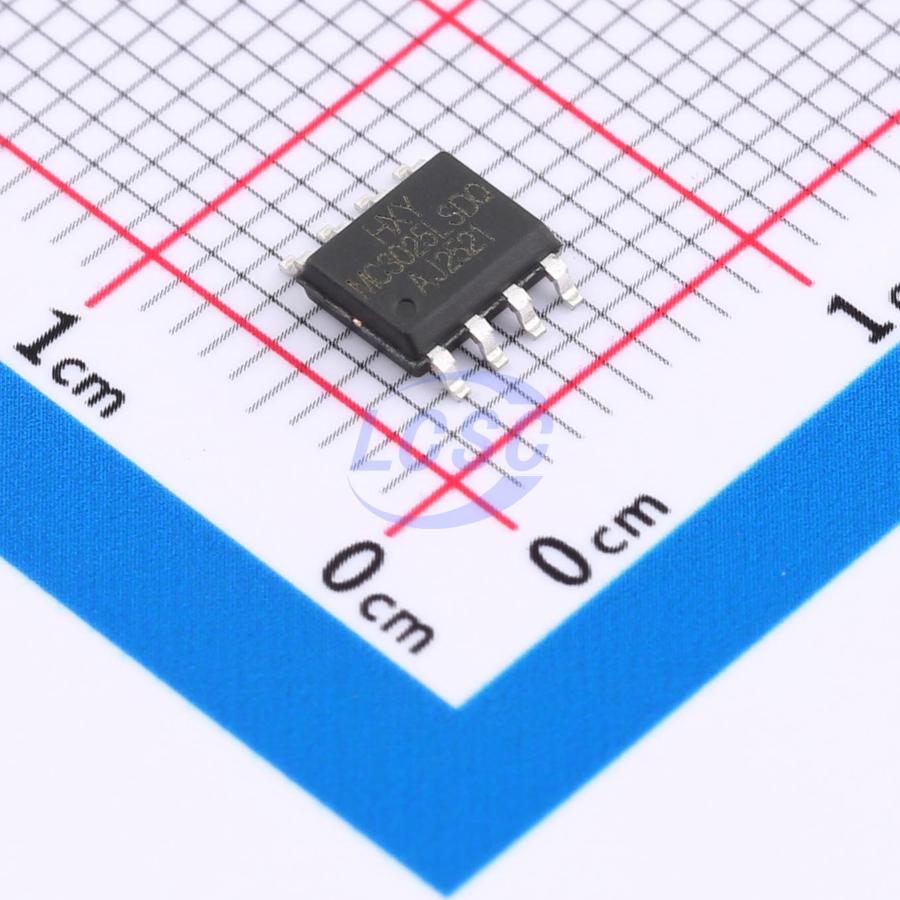

DMC3025LSDQ-13-HXY
30V 6A 2W 16mΩ@10V 1 N-Channel + 1 P-Channel N-Channel + P-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
MOSFET N/P-CH 30V 6A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMC3025LSDQ-13-HXY
- Store part #
- C49256930
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
160 in stock
#C49256930
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.85 | ₹239.25 |
| 50+ | ₹38.33 | ₹1,916.50 |
| 150+ | ₹34.24 | ₹5,136.00 |
| 500+ | ₹29.15 | ₹14,575.00 |
| 3,000+ | ₹26.88 | ₹80,640.00 |
| 6,000+ | ₹25.52 | ₹1,53,120.00 |
5 × ₹47.85
₹239.25
excl. GST
₹282.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMC3025LSDQ-13-HXY
₹239.25 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6A
- Output Capacitance(Coss)
- 45pF
- Ciss-Input Capacitance
- 255pF
- Pd - Power Dissipation
- 2W
- Reverse Transfer Capacitance (Crss)
- 35pF
- RDS(on)
- 16mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 5.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.118 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF7319TRPBF-HXY#C20606229HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 30 | ₹27.77 · 30 in stock | View |
 | IRF7105TRPBF-HXY#C22366480HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 60 | ₹26.43 · 60 in stock | View |
 | DMC3021LSD-13-HXY#C49256404HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 100 | ₹30.59 · 100 in stock | View |
 | DMC3025LSD-13-HXY#C49256929HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 130 | ₹17.05 · 130 in stock | View |
 | AO4616-HXY#C22366929HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 2,330 | ₹22.70 · 2,330 in stock | View |
