HXY MOSFETDatasheet (PDF)

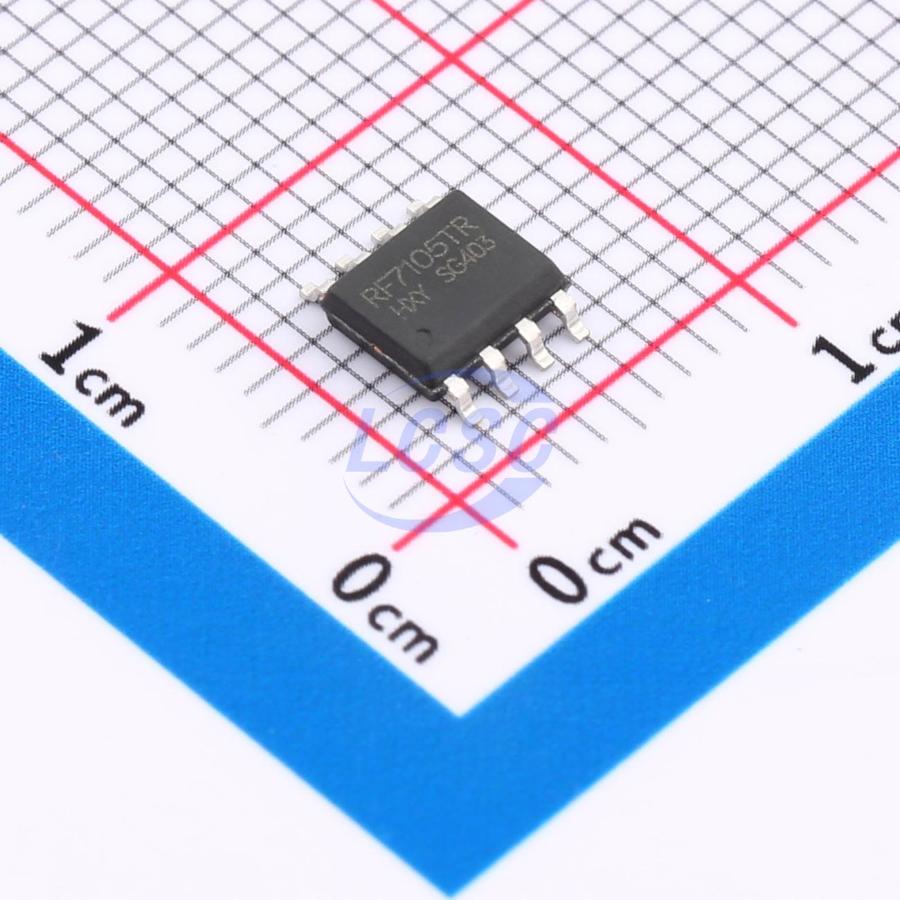

IRF7105TRPBF-HXY
N-Channel+P-Channel Array 30V 6A 2W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET N-CH+P-CH ARR 30V 6A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IRF7105TRPBF-HXY
- Store part #
- C22366480
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C22366480
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.43 | ₹132.15 |
| 50+ | ₹20.94 | ₹1,047.00 |
| 150+ | ₹18.59 | ₹2,788.50 |
| 500+ | ₹15.65 | ₹7,825.00 |
| 3,000+ | ₹14.34 | ₹43,020.00 |
| 6,000+ | ₹13.55 | ₹81,300.00 |
5 × ₹26.43
₹132.15
excl. GST
₹155.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRF7105TRPBF-HXY
₹132.15 for 5 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 45pF
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 255pF
- Pd - Power Dissipation
- 2W
- Reverse Transfer Capacitance (Crss)
- 35pF
- RDS(on)
- 16mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 5.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.126 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF7319TRPBF-HXY#C20606229HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 30 | ₹27.77 · 30 in stock | View |
 | DMC3021LSD-13-HXY#C49256404HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 100 | ₹30.59 · 100 in stock | View |
 | DMC3025LSD-13-HXY#C49256929HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 130 | ₹17.05 · 130 in stock | View |
 | DMC3025LSDQ-13-HXY#C49256930HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 160 | ₹47.85 · 160 in stock | View |
 | AO4616-HXY#C22366929HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 2,330 | ₹22.70 · 2,330 in stock | View |
