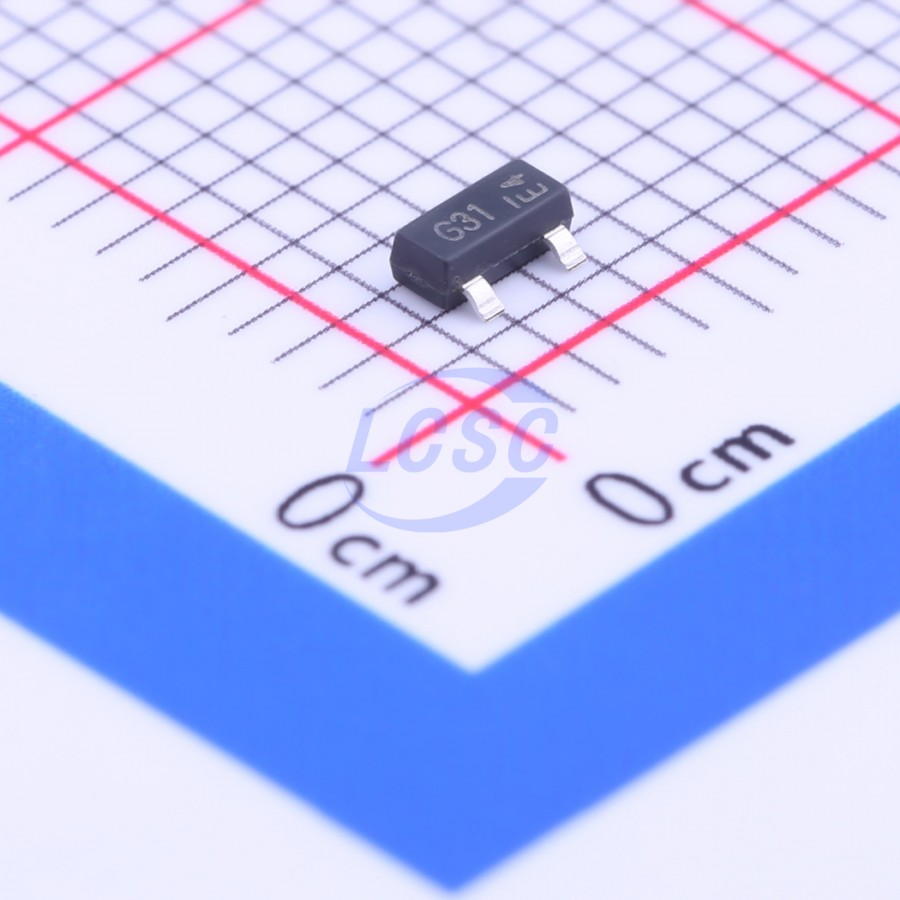

DMG3420U-7
20V 5.47A 740mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 20V 5.47A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMG3420U-7
- Store part #
- C154722
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
670 in stock
#C154722
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.77 | ₹113.85 |
| 50+ | ₹19.08 | ₹954.00 |
| 150+ | ₹17.23 | ₹2,584.50 |
| 500+ | ₹15.85 | ₹7,925.00 |
| 3,000+ | ₹13.88 | ₹41,640.00 |
| 6,000+ | ₹13.32 | ₹79,920.00 |
5 × ₹22.77
₹113.85
excl. GST
₹134.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMG3420U-7
₹113.85 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 69.1pF
- Current - Continuous Drain(Id)
- 5.47A
- Ciss-Input Capacitance
- 434.7pF
- Pd - Power Dissipation
- 740mW
- Reverse Transfer Capacitance (Crss)
- 61.2pF
- RDS(on)
- 21mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.4nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 950mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
This next-generation MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- General-purpose interface switch
- Power management function
Key features
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMG3420UQ-7#C5157847DIODES · SOT-23 | DIODES | SOT-23 | 305 | ₹13.52 · 305 in stock | View |
 | TW1515ASl#C2903536TWGMC · SOT-23 | TWGMC | SOT-23 | 2,600 | ₹5.91 · 2,600 in stock | View |
 | TPM20V6NLS3#C5182059TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,595 | ₹14.37 · 2,595 in stock | View |
 | HSS2300A#C518780HUASHUO · SOT-23 | HUASHUO | SOT-23 | 1,900 | ₹4.84 · 1,900 in stock | View |
 | FS2312#C784613FUXINSEMI · SOT-23(TO-236) | FUXINSEMI | SOT-23(TO-236) | 1,890 | ₹7.57 · 1,890 in stock | View |
