DIODESDatasheet (PDF)

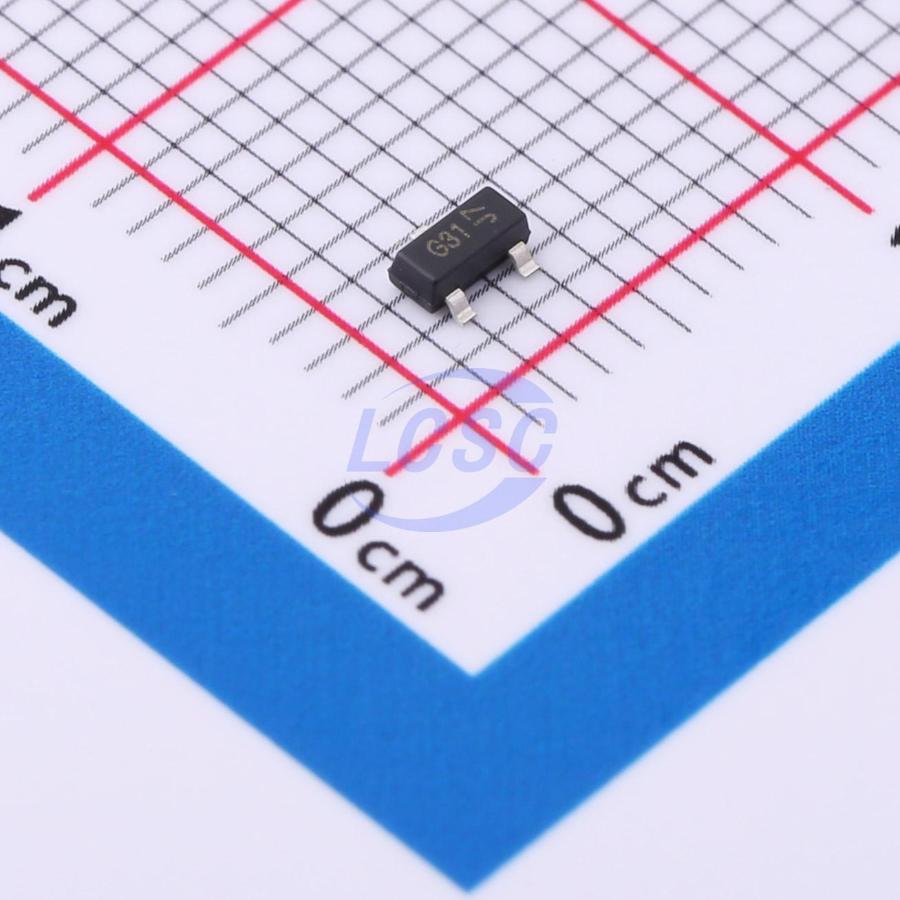

DMG3420UQ-7
N-Channel 20V 5.47A 740mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 20V 5.47A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMG3420UQ-7
- Store part #
- C5157847
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
305 in stock
#C5157847
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.52 | ₹67.60 |
| 50+ | ₹13.31 | ₹665.50 |
| 150+ | ₹13.16 | ₹1,974.00 |
| 500+ | ₹13.02 | ₹6,510.00 |
5 × ₹13.52
₹67.60
excl. GST
₹79.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMG3420UQ-7
₹67.60 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 69.1pF
- Current - Continuous Drain(Id)
- 5.47A
- Ciss-Input Capacitance
- 434.7pF
- Pd - Power Dissipation
- 740mW
- Reverse Transfer Capacitance (Crss)
- 61.2pF
- RDS(on)
- 21mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.4nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 950mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It is AEC-Q101 compliant and PPAP documentation is available.
Applications
- General-purpose interface switch - Power management function
Key features
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free, "green" device
- AEC-Q101 high-reliability qualified
- PPAP capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMG3420U-7#C154722DIODES · SOT-23 | DIODES | SOT-23 | 670 | ₹22.77 · 670 in stock | View |
 | BN3400J#C55497937BORN · SOT-23 | BORN | SOT-23 | 9,000 | ₹4.35 · 9,000 in stock | View |
 | SI2300A#C347480UMW · SOT-23 | UMW | SOT-23 | 62,480 | ₹3.96 · 62,480 in stock | View |
 | AP2306GN#C5123962TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,900 | ₹10.05 · 2,900 in stock | View |
 | DMN2050L#C5123964TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,660 | ₹9.50 · 1,660 in stock | View |
