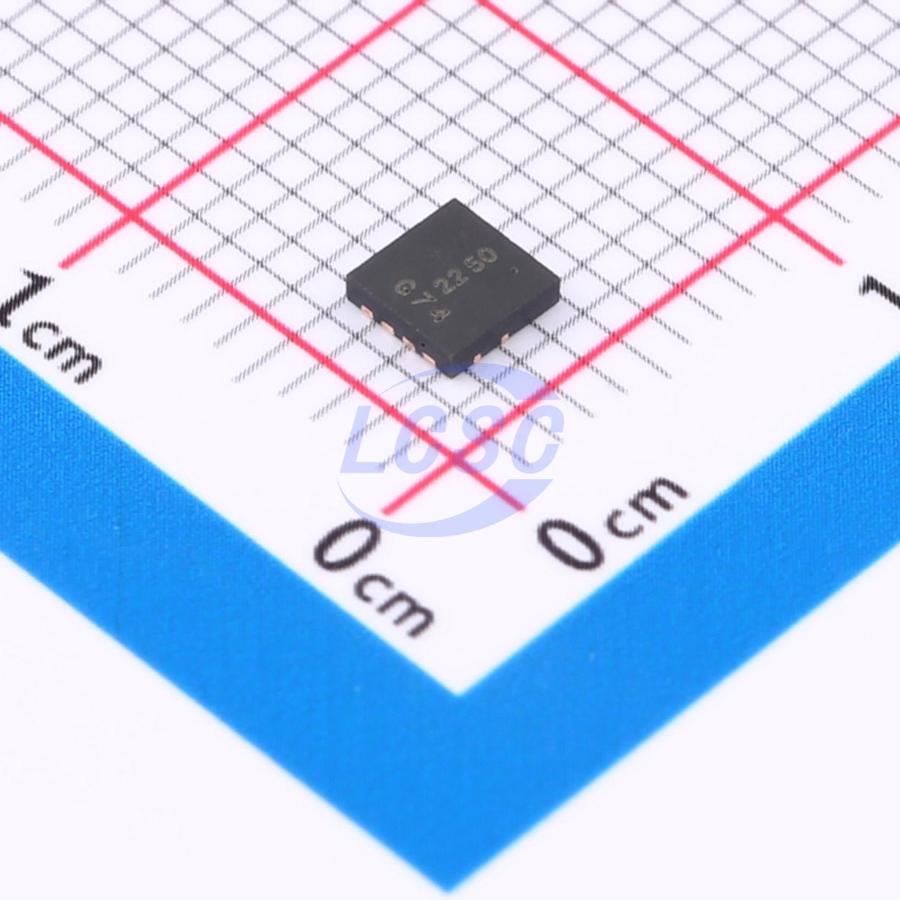

DMG7410SFG-13
N-Channel 30V 8A 3W Surface Mount PowerDI3333-8
POWERDI3333-8ROHS CompliantActive
MOSFET N-CH 30V 8A POWERDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMG7410SFG-13
- Store part #
- C780825
- Package / case
- POWERDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C780825
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.53 | ₹187.65 |
| 50+ | ₹37.00 | ₹1,850.00 |
| 150+ | ₹36.66 | ₹5,499.00 |
| 500+ | ₹36.30 | ₹18,150.00 |
5 × ₹37.53
₹187.65
excl. GST
₹221.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMG7410SFG-13
₹187.65 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 8A
- Pd - Power Dissipation
- 3W
- RDS(on)
- 20mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11.3nC@10V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.098 g
Overview
Low RDS(ON) – ensures on state losses are minimized. Small form factor thermally efficient package enables higher density end products. Occupies just 33% of the board area occupied by SO-8 enabling smaller end product. 100% UIS (Avalanche) rated. 100% Rg tested. Lead-Free Finish; RoHS Compliant. Halogen and Antimony Free. “Green” Device. Qualified to AEC-Q101 Standards for High Reliability. This MOSFET is designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlighting
- DC-DC Converters
- Power Management Functions
Key features
- Low RDS(ON) – ensures on state losses are minimized
- Small form factor thermally efficient package enables higher density end products
- Occupies just 33% of the board area occupied by SO-8 enabling smaller end product
- 100% UIS (Avalanche) rated
- 100% Rg tested
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJAB25N04#C504066JSCJ · PDFNWB3.3x3.3-8L | JSCJ | PDFNWB3.3x3.3-8L | 565 | ₹32.25 · 565 in stock | View |
 | CJAB25N04S#C504067JSCJ · PDFNWB3.3x3.3-8L | JSCJ | PDFNWB3.3x3.3-8L | 1,475 | ₹27.29 · 1,475 in stock | View |
 | TPN22006NH,LQ#C5802632TOSHIBA · TSON-8(3.3x3.3) | TOSHIBA | TSON-8(3.3x3.3) | 35 | ₹315.03 · 35 in stock | View |
| SIS472BDN-T1-GE3#C727404VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 495 | ₹107.60 · 495 in stock | View | |
 | CSD19538Q3A#C478471TI · VSONP-8(3.3x3.3) | TI | VSONP-8(3.3x3.3) | 287 | ₹163.81 · 287 in stock | View |
