DIODESDatasheet (PDF)

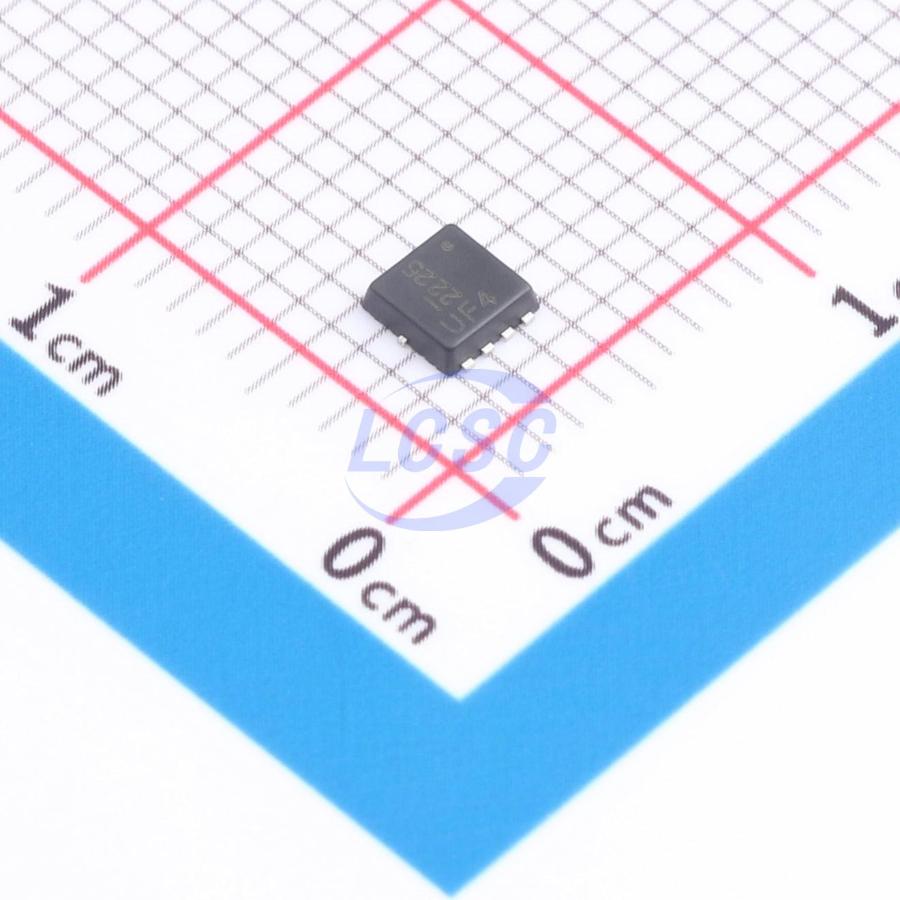

DMN1004UFV-13
12V 70A 1.9W 5.1mΩ 1 N-channel PowerDI-3333-8 Single FETs, MOSFETs RoHS
PowerDI-3333-8ROHS CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMN1004UFV-13
- Store part #
- C5248831
- Package / case
- PowerDI-3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C5248831
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹176.55 | ₹176.55 |
| 10+ | ₹147.59 | ₹1,475.90 |
| 30+ | ₹131.70 | ₹3,951.00 |
| 100+ | ₹113.86 | ₹11,386.00 |
| 500+ | ₹105.80 | ₹52,900.00 |
| 1,000+ | ₹102.32 | ₹1,02,320.00 |
1 × ₹176.55
₹176.55
excl. GST
₹208.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMN1004UFV-13
₹176.55 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 12V
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 2.385nF
- Pd - Power Dissipation
- 1.9W
- Reverse Transfer Capacitance (Crss)
- 520pF
- RDS(on)
- 5.1mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 26nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.074 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Power Management Functions
- DC-DC Converters Battery
Key features
- Low RDS(ON) – Ensures On-State Losses are Minimized
- Small Form Factor Thermally Efficient Package Enables Higher Density End Products Occupies just 33% of the Board Area Occupied by SO-8 Enabling Smaller End Product
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN1004UFV-7#C316138DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 315 | ₹43.13 · 315 in stock | View |
 | CMSC3006#C5444318Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 160 | ₹23.67 · 160 in stock | View |
 | AGM205AP#C42372660AGMSEMI · PDFN-8(3.3x3.3) | AGMSEMI | PDFN-8(3.3x3.3) | 70 | ₹16.79 · 70 in stock | View |
 | AGM2025AP#C46610119AGMSEMI · PDFN3.3x3.3-8 | AGMSEMI | PDFN3.3x3.3-8 | 45 | ₹20.92 · 45 in stock | View |
 | NTTFS4C05NTAG#C184139onsemi · PDFN-8(3.3x3.3) | onsemi | PDFN-8(3.3x3.3) | 824 | ₹70.70 · 824 in stock | View |
