DIODESDatasheet (PDF)

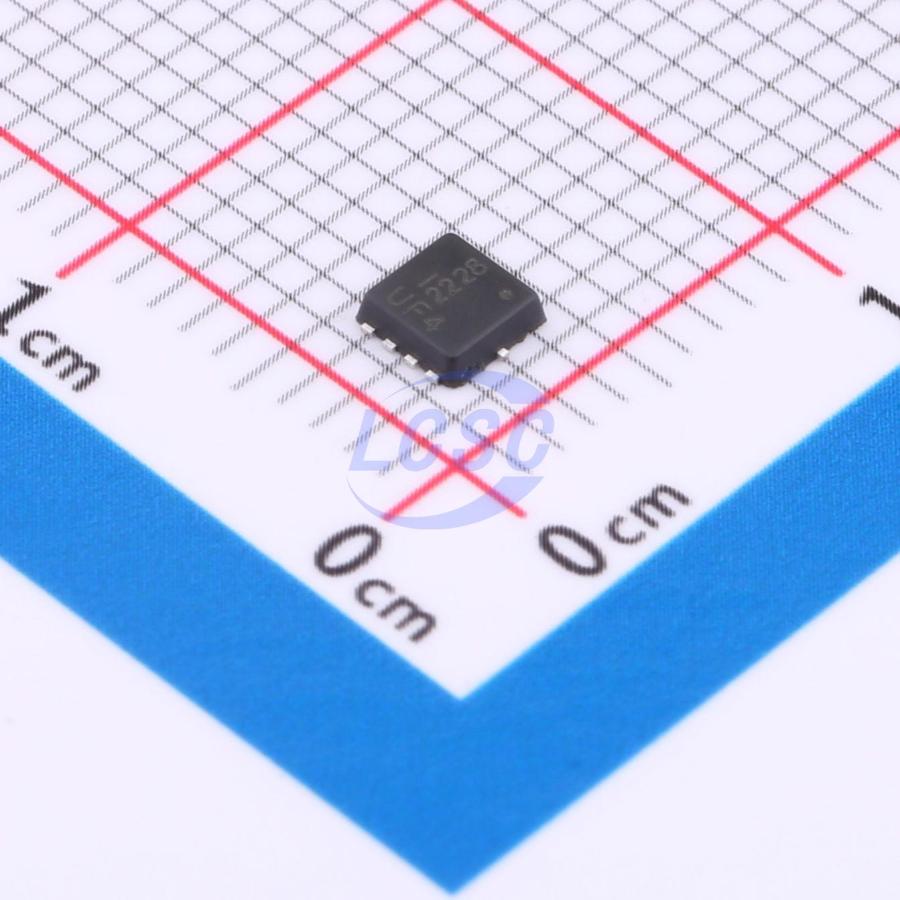

DMN1004UFV-7
N-Channel 12V 70A 1.9W Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantActive
MOSFET N-CH 12V 70A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMN1004UFV-7
- Store part #
- C316138
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
315 in stock
#C316138
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.13 | ₹215.65 |
| 50+ | ₹33.43 | ₹1,671.50 |
| 150+ | ₹29.28 | ₹4,392.00 |
| 500+ | ₹24.09 | ₹12,045.00 |
| 2,000+ | ₹21.79 | ₹43,580.00 |
| 4,000+ | ₹20.40 | ₹81,600.00 |
5 × ₹43.13
₹215.65
excl. GST
₹254.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMN1004UFV-7
₹215.65 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 12V
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 2.385nF
- Pd - Power Dissipation
- 1.9W
- Reverse Transfer Capacitance (Crss)
- 520pF
- RDS(on)
- 5.1mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.07 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Power Management Functions
- DC-DC Converters Battery
Key features
- Low RDS(ON) – Ensures On-State Losses are Minimized
- Small Form Factor Thermally Efficient Package Enables Higher Density End Products Occupies just 33% of the Board Area Occupied by SO-8 Enabling Smaller End Product
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
