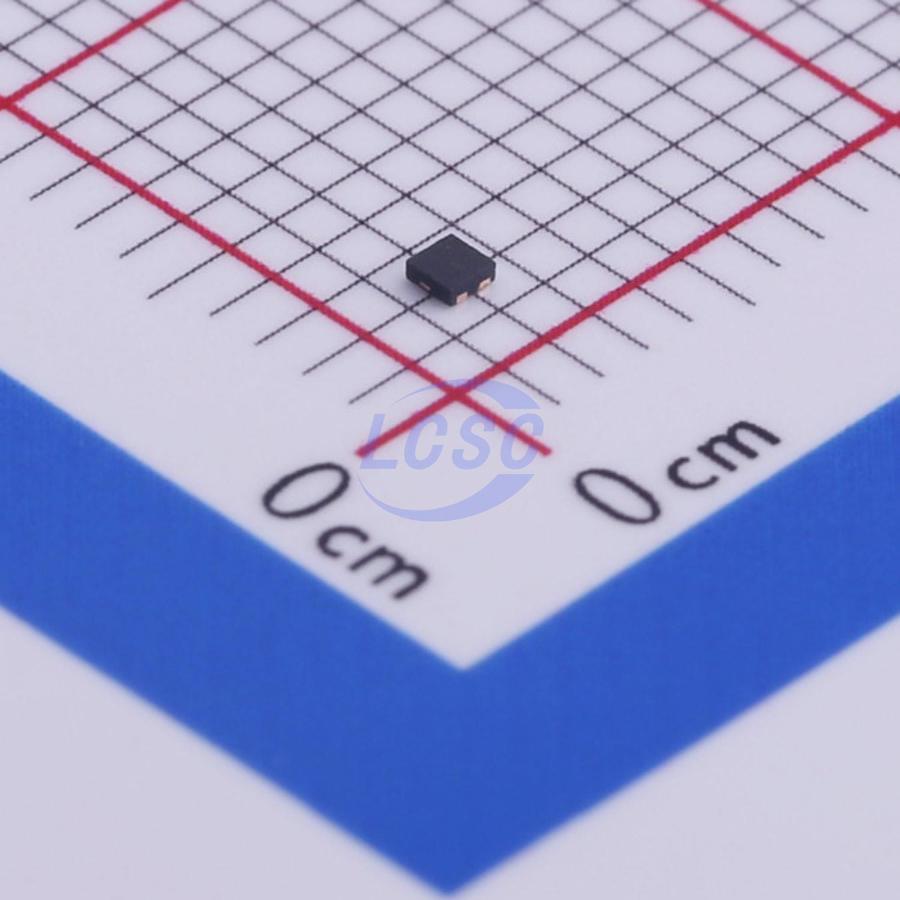

DMN1045UFR4-7
N-Channel 12V 3.2A 1.26W Surface Mount X2-DFN1010-3
X2-DFN1010-3ROHS3 CompliantActive
MOSFET N-CH 12V 3.2A X2-DFN1010-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMN1045UFR4-7
- Store part #
- C460988
- Package / case
- X2-DFN1010-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,225 in stock
#C460988
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.61 | ₹133.05 |
| 50+ | ₹22.00 | ₹1,100.00 |
| 150+ | ₹20.03 | ₹3,004.50 |
| 500+ | ₹17.57 | ₹8,785.00 |
| 3,000+ | ₹16.47 | ₹49,410.00 |
| 6,000+ | ₹15.81 | ₹94,860.00 |
5 × ₹26.61
₹133.05
excl. GST
₹157.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN1045UFR4-7
₹133.05 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 57pF
- Ciss-Input Capacitance
- 375pF
- Pd - Power Dissipation
- 1.26W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 12V
- Current - Continuous Drain(Id)
- 3.2A
- Reverse Transfer Capacitance (Crss)
- 51pF
- RDS(on)
- 45mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.8nC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
This next-generation MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlight Illumination - Load Switch
Key features
- Low on-resistance
- Low input/output leakage current
- Fast switching speed
- ESD-protected gate
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free. "Green" device
