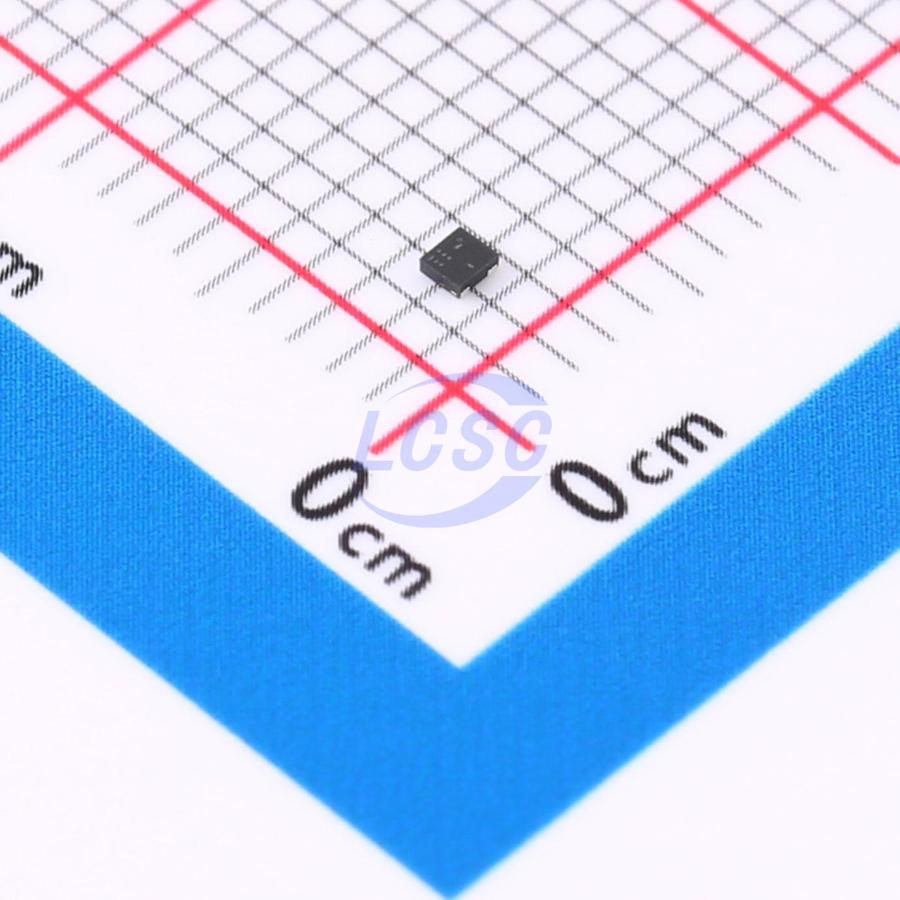

PMXB40UNEZ
N-Channel 12V 3.2A 8.33W Surface Mount DFN1010D-3
DFN1010D-3ROHS3 CompliantActive
MOSFET N-CH 12V 3.2A DFN1010D-3
- Manufacturer
- Nexperia
- Manufacturer part #
- PMXB40UNEZ
- Store part #
- C547272
- Package / case
- DFN1010D-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C547272
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.70 | ₹73.50 |
| 50+ | ₹11.58 | ₹579.00 |
| 150+ | ₹10.03 | ₹1,504.50 |
| 500+ | ₹8.86 | ₹4,430.00 |
| 2,500+ | ₹7.92 | ₹19,800.00 |
| 5,000+ | ₹7.46 | ₹37,300.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
Specifications
- Output Capacitance(Coss)
- 107pF
- Ciss-Input Capacitance
- 556pF
- Pd - Power Dissipation
- 8.33W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 12V
- Current - Continuous Drain(Id)
- 3.2A
- Reverse Transfer Capacitance (Crss)
- 94pF
- RDS(on)
- 45mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11.6nC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 900mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
N-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Applications
- Low-side load switch and charging switch for portable devices
- Power management in battery-driven portables
- LED driver
- DC-to-DC converters
Key features
- Trench MOSFET technology
- Leadless ultra small and thin SMD plastic package: 1.1×1.0×0.37 mm
- Exposed drain pad for excellent thermal conduction
- ElectroStatic Discharge (ESD) protection 1 kV
- Very low Drain-Source on-state resistance RDSon = 34 mΩ
