DIODESDatasheet (PDF)

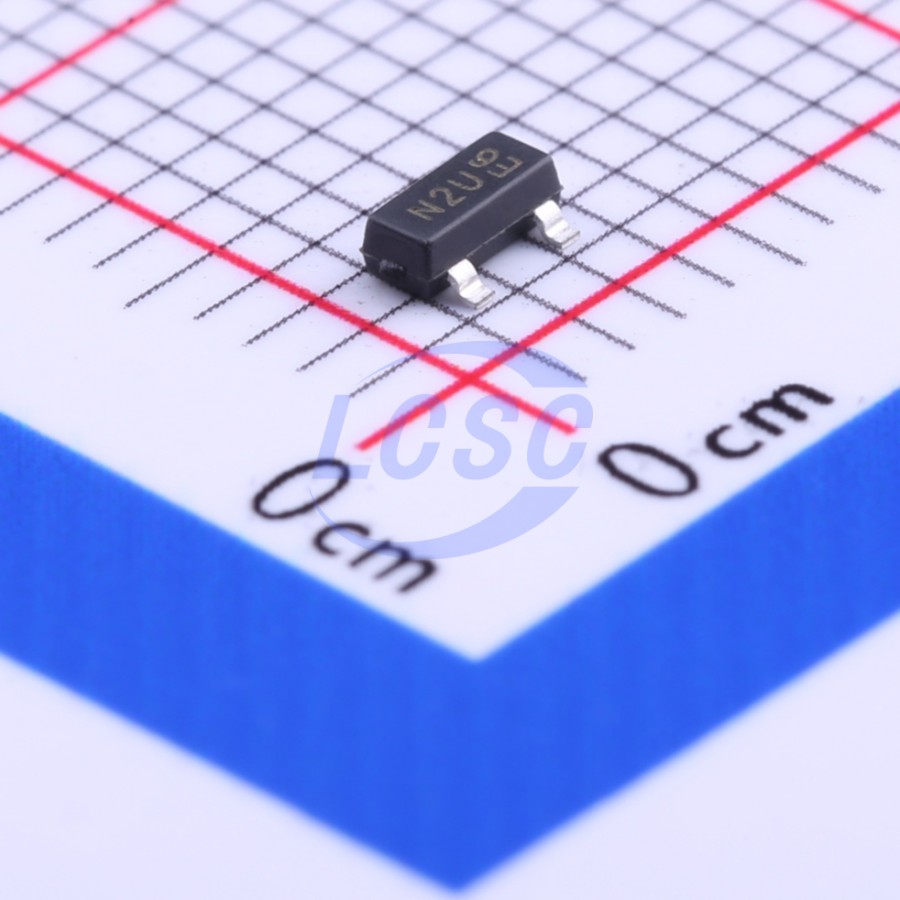

DMN2300U-7
N-Channel 20V 1.4A 0.55W Surface Mount SOT-23
SOT-23ROHS CompliantActive
MOSFET N-CH 20V 1.4A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2300U-7
- Store part #
- C151414
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
150 in stock
#C151414
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.57 | ₹102.85 |
| 50+ | ₹20.26 | ₹1,013.00 |
| 150+ | ₹20.06 | ₹3,009.00 |
| 500+ | ₹19.83 | ₹9,915.00 |
5 × ₹20.57
₹102.85
excl. GST
₹121.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN2300U-7
₹102.85 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 1.4A
- Pd - Power Dissipation
- 550mW
- RDS(on)
- 360mΩ@1.8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1.6nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 950mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Load Switch
Key features
- On Resistance < 200mΩ
- Low Gate Threshold Voltage
- Fast Switching Speed
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- ESD Protected Gate
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP2002KT2#C41354896Siliup · SOT-23 | Siliup | SOT-23 | 2,700 | ₹2.98 · 2,700 in stock | View |
 | SI2300A#C5310969TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 5,640 | ₹3.61 · 5,640 in stock | View |
 | DMN2310U-7#C5451811DIODES · SOT-23 | DIODES | SOT-23 | 390 | ₹10.89 · 390 in stock | View |
 | Si2302CDS-T1-GE3#C10488VISHAY · SOT-23 | VISHAY | SOT-23 | 64,985 | ₹13.75 · 64,985 in stock | View |
 | SI2302CDS-T1-BE3#C5344580VISHAY · SOT-23 | VISHAY | SOT-23 | 8,240 | ₹48.02 · 8,240 in stock | View |
