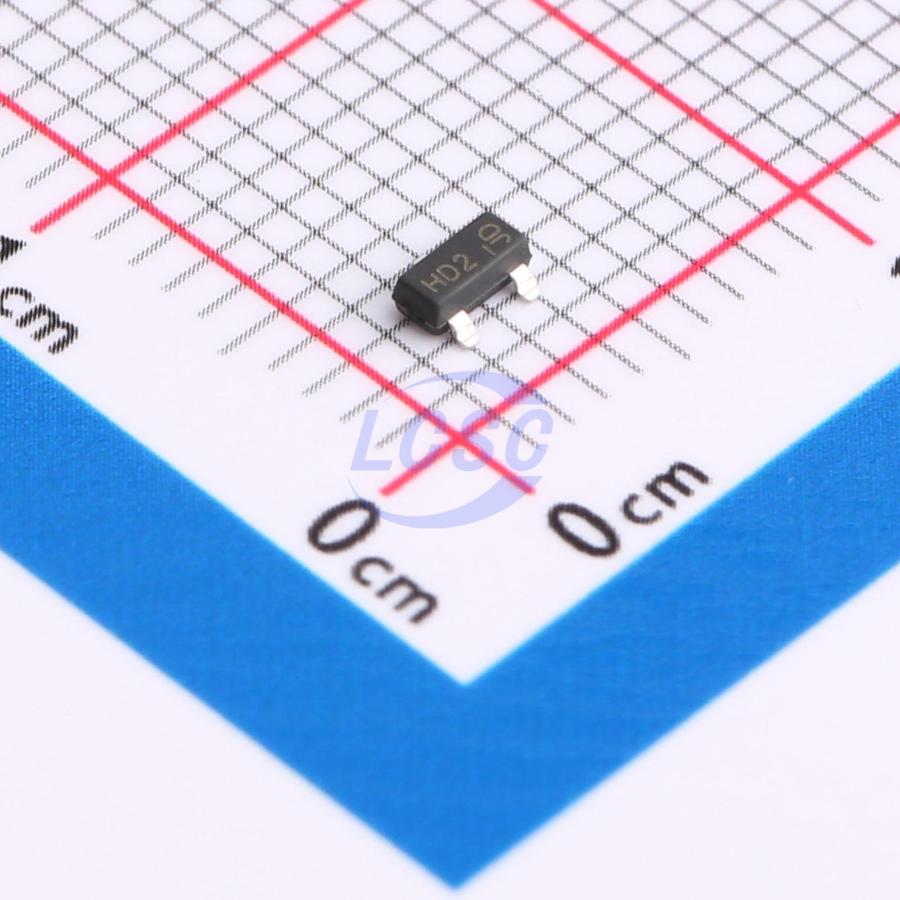

DMN2310U-7
N-Channel 20V 1.6A 0.48W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 20V 1.6A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2310U-7
- Store part #
- C5451811
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
390 in stock
#C5451811
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.89 | ₹108.90 |
| 100+ | ₹8.98 | ₹898.00 |
| 300+ | ₹8.03 | ₹2,409.00 |
| 3,000+ | ₹7.32 | ₹21,960.00 |
| 6,000+ | ₹6.75 | ₹40,500.00 |
| 9,000+ | ₹6.47 | ₹58,230.00 |
10 × ₹10.89
₹108.90
excl. GST
₹128.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN2310U-7
₹108.90 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 10pF
- Ciss-Input Capacitance
- 38pF
- Pd - Power Dissipation
- 480mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 1.6A
- Reverse Transfer Capacitance (Crss)
- 6pF
- RDS(on)
- 360mΩ@1.8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 700pC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 950mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Load Switch
Key features
- Low Gate Threshold Voltage
- Fast Switching Speed
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NXV40UNR#C3280963Nexperia · TO-236AB | Nexperia | TO-236AB | 2,780 | ₹29.37 · 2,780 in stock | View |
 | BSR202N L6327#C534587Infineon · SC-59-3 | Infineon | SC-59-3 | 11 | ₹109.99 · 11 in stock | View |
 | YJL03N06C#C5339868YANGJIE · SOT-23(TO-236) | YANGJIE | SOT-23(TO-236) | 9,380 | ₹6.72 · 9,380 in stock | View |
 | CCX3400A#C51953477Chao He · SOT-23-3L | Chao He | SOT-23-3L | 1,49,060 | ₹3.00 · 1,49,060 in stock | View |
 | MOT2N10B2#C53055729MOT · SOT-23 | MOT | SOT-23 | 40 | ₹8.67 · 40 in stock | View |
