DIODESDatasheet (PDF)

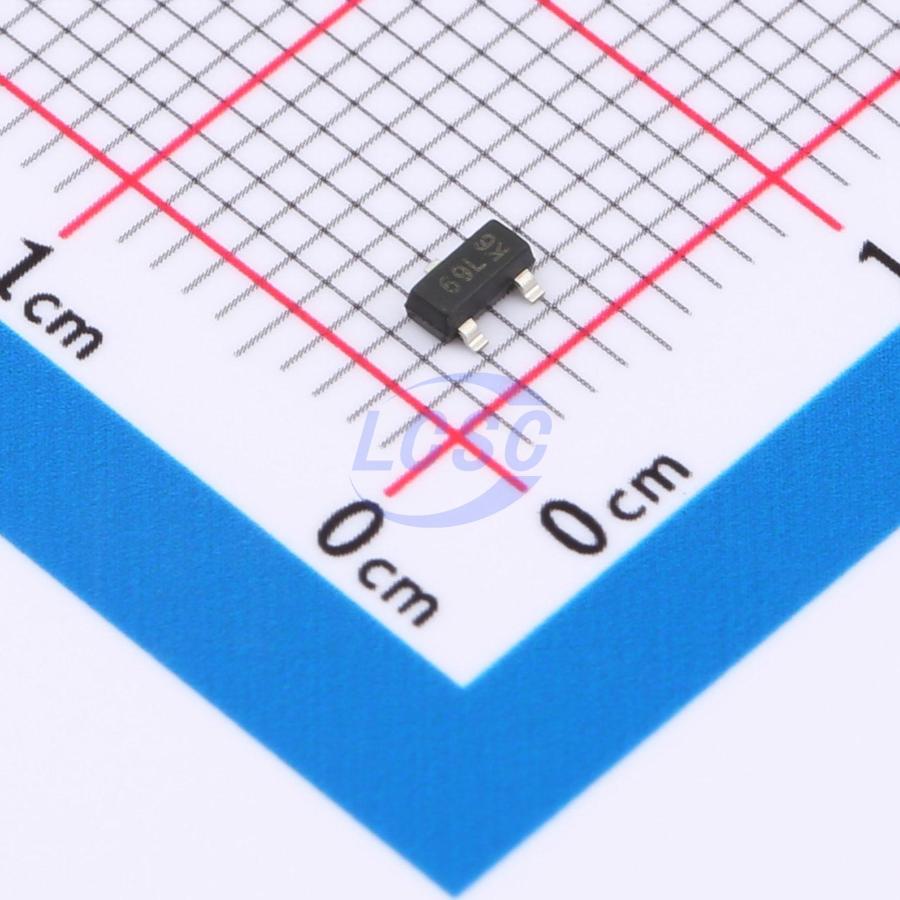

DMN3069L-7
30V 5.3A 1.3W 30mΩ@10V 1 N-channel SOT-23 Single FETs, MOSFETs RoHS
SOT-23ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3069L-7
- Store part #
- C5245315
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
610 in stock
#C5245315
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.26 | ₹56.30 |
| 50+ | ₹10.97 | ₹548.50 |
| 150+ | ₹10.77 | ₹1,615.50 |
| 500+ | ₹10.58 | ₹5,290.00 |
5 × ₹11.26
₹56.30
excl. GST
₹66.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN3069L-7
₹56.30 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 5.3A
- Ciss-Input Capacitance
- 309pF
- Pd - Power Dissipation
- 1.3W
- Reverse Transfer Capacitance (Crss)
- 47pF
- RDS(on)
- 30mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.1nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
This next-generation MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Load Switch - DC-DC Converter - Power Management Function
Key features
- Low on-resistance
- Low gate threshold voltage
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- Gate ESD protection
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSS3008#C51025825HUASHUO · SOT-23L | HUASHUO | SOT-23L | On request | ₹6.23 · 0 in stock | View |
 | DMN3023L-7#C443825DIODES · SOT-23 | DIODES | SOT-23 | 11,090 | ₹24.83 · 11,090 in stock | View |
| DMN3023L-13#C6183673DIODES · SOT-23-3 | DIODES | SOT-23-3 | 10 | ₹129.75 · 10 in stock | View | |
 | DMN3404LQ-7#C461021DIODES · SOT-23 | DIODES | SOT-23 | 3,000 | ₹59.34 · 3,000 in stock | View |
 | DMG3404L-7#C96615DIODES · SOT-23 | DIODES | SOT-23 | 1,670 | ₹20.82 · 1,670 in stock | View |
