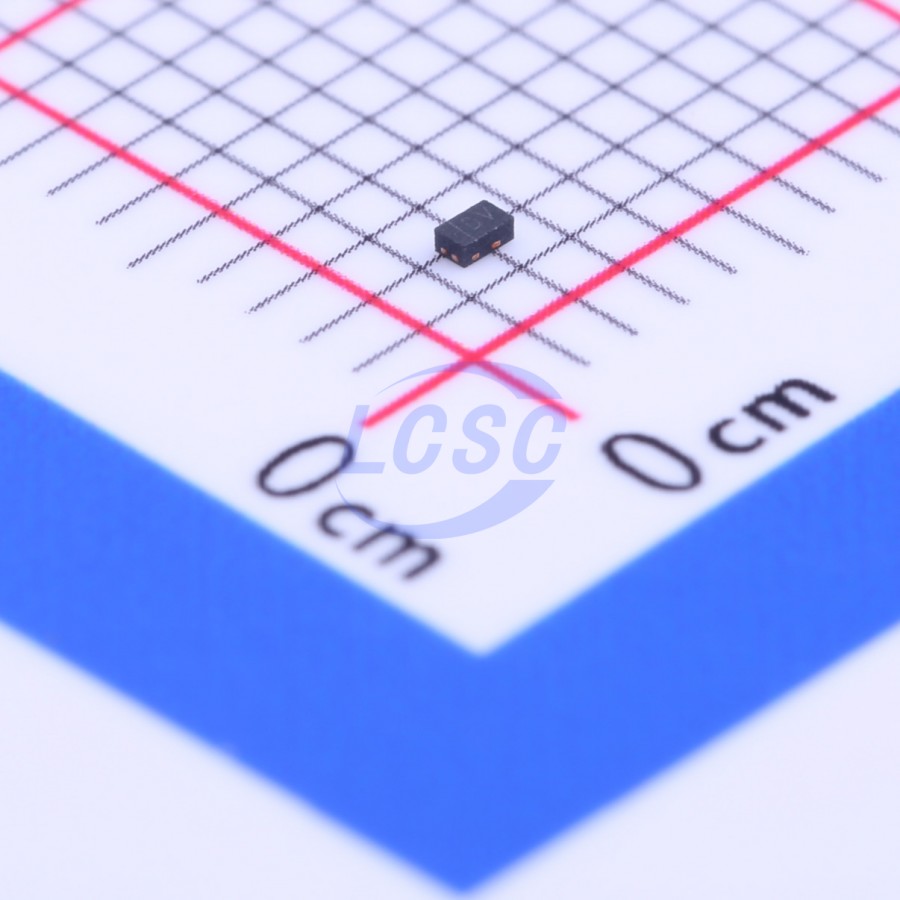

DIODESDatasheet (PDF)
DMN32D2LFB4-7
30V 300mA 350mW Surface Mount X2-DFN1006-3
X2-DFN1006-3ROHS3 CompliantActive
MOSFET 30V 300mA X2-DFN1006-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMN32D2LFB4-7
- Store part #
- C151382
- Package / case
- X2-DFN1006-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,600 in stock
#C151382
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.77 | ₹87.70 |
| 100+ | ₹7.01 | ₹701.00 |
| 300+ | ₹6.14 | ₹1,842.00 |
| 3,000+ | ₹5.48 | ₹16,440.00 |
| 6,000+ | ₹4.95 | ₹29,700.00 |
| 9,000+ | ₹4.70 | ₹42,300.00 |
10 × ₹8.77
₹87.70
excl. GST
₹103.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN32D2LFB4-7
₹87.70 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 20pF
- Ciss-Input Capacitance
- 78pF
- Pd - Power Dissipation
- 350mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 300mA
- Reverse Transfer Capacitance (Crss)
- 7.2pF
- RDS(on)
- 1.5Ω@2.5V
- Number
- 1 N-channel
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.025 g
Overview
This MOSFET is designed to minimize the on-state resistance and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlighting
- Power Management Functions
- DC-DC Converters
Key features
- Low On-Resistance
- Very Low Gate Threshold Voltage, 1.2V Max
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- Ultra-Small Surface Mount Package
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPNX7002BKMBYL#C52817290TECH PUBLIC · DFN1006-3L | TECH PUBLIC | DFN1006-3L | 11,200 | ₹4.52 · 11,200 in stock | View |
 | TPNX7002BKMYL#C52817291TECH PUBLIC · DFN1006-3L | TECH PUBLIC | DFN1006-3L | 2,300 | ₹4.43 · 2,300 in stock | View |
| 2N7002KL3-TP#C3288243MCC · DFN1006-3 | MCC | DFN1006-3 | On request | ₹7.63 · 0 in stock | View | |
 | TPWNM3025-3/TR#C28642313TECH PUBLIC · DFN1006-3L | TECH PUBLIC | DFN1006-3L | 6,480 | ₹4.62 · 6,480 in stock | View |
 | SSM3K72KCT,L3F#C5199984TOSHIBA · CST-3 | TOSHIBA | CST-3 | 225 | ₹9.58 · 225 in stock | View |
