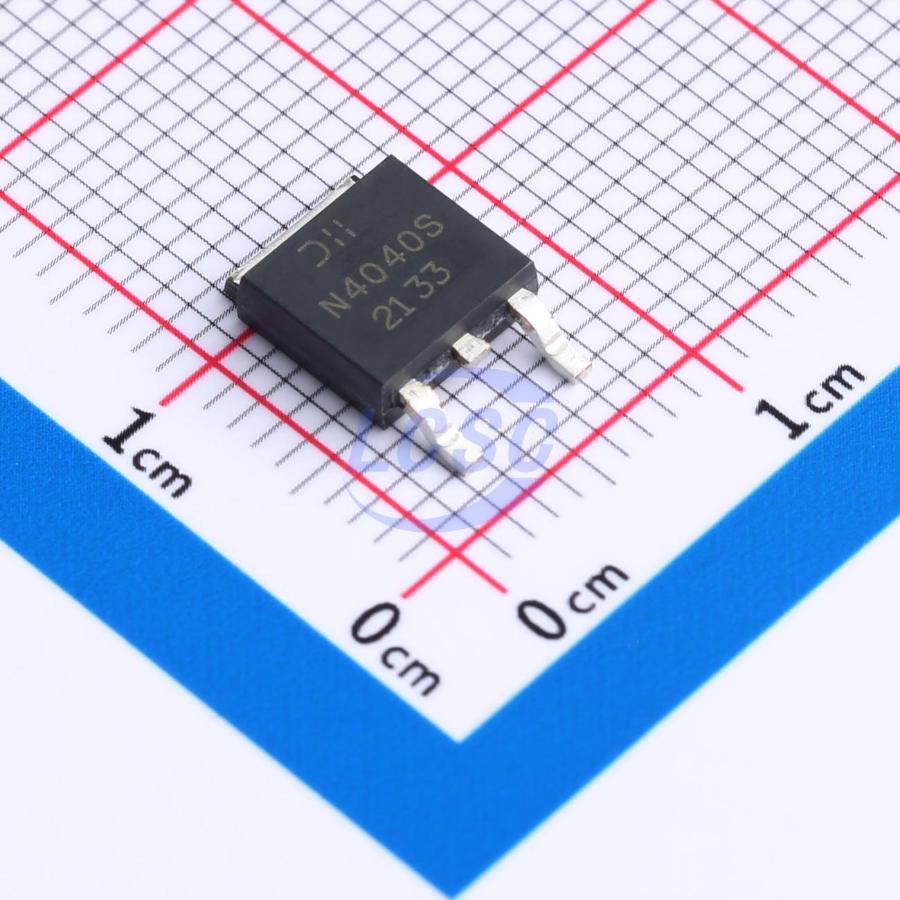

DMN4040SK3-13
N-Channel 40V 13.8A 8.9W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET N-CH 40V 13.8A TO-252(DPAK)
- Manufacturer
- DIODES
- Manufacturer part #
- DMN4040SK3-13
- Store part #
- C5245321
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
480 in stock
#C5245321
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.87 | ₹244.35 |
| 50+ | ₹38.90 | ₹1,945.00 |
| 150+ | ₹34.61 | ₹5,191.50 |
| 500+ | ₹29.28 | ₹14,640.00 |
| 2,500+ | ₹26.90 | ₹67,250.00 |
| 5,000+ | ₹25.48 | ₹1,27,400.00 |
5 × ₹48.87
₹244.35
excl. GST
₹288.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMN4040SK3-13
₹244.35 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 13.8A
- Ciss-Input Capacitance
- 945pF
- Pd - Power Dissipation
- 8.9W
- Reverse Transfer Capacitance (Crss)
- 58pF
- RDS(on)
- 54mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18.6nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.51 g
Overview
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Backlighting
- DC-DC converters
- Power management functions
Key features
- Low On-Resistance
- Low Input Capacitance Fast Switching Speed
- Low Input/Output Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBE1410#C416255VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 32 | ₹54.44 · 32 in stock | View |
 | AOD4184A#C5370959TECH PUBLIC · TO-252-3L | TECH PUBLIC | TO-252-3L | 140 | ₹35.23 · 140 in stock | View |
 | CMD15N06#C51793154Cmos · TO-252 | Cmos | TO-252 | 170 | ₹13.72 · 170 in stock | View |
 | RD3L150SNFRATL#C3281238ROHM · TO-252 | ROHM | TO-252 | 45 | ₹188.62 · 45 in stock | View |
 | FQD50N06#C42417219KTP · TO-252 | KTP | TO-252 | 90 | ₹19.36 · 90 in stock | View |
