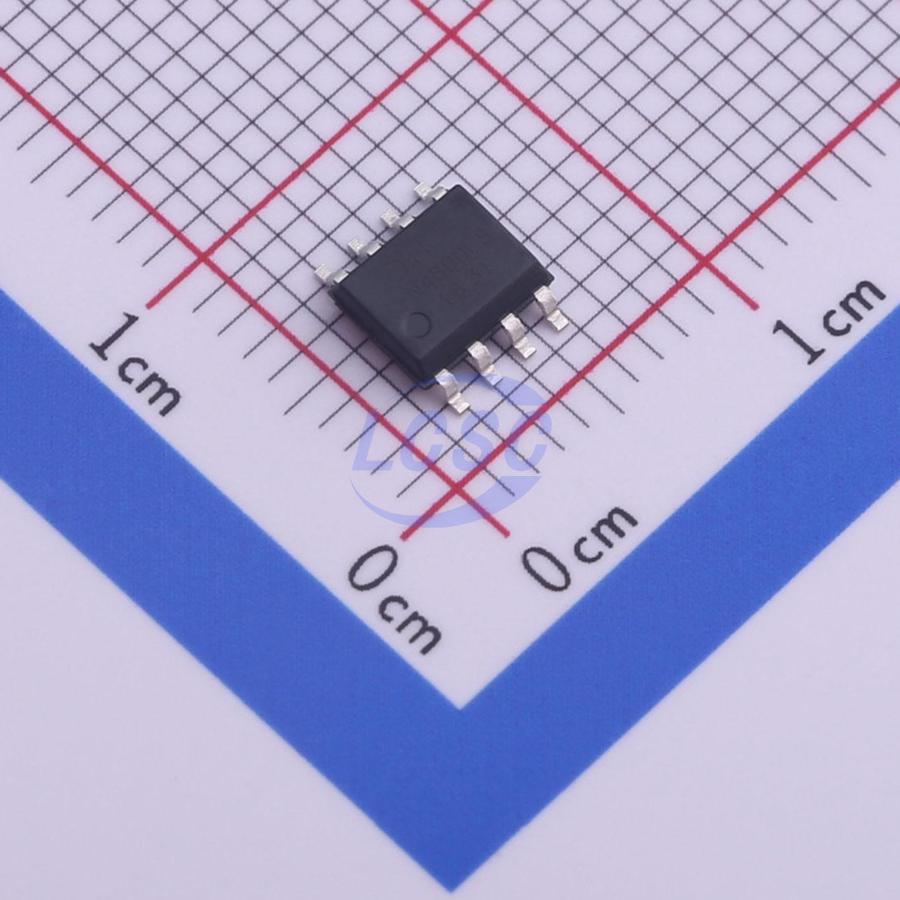

DMN4800LSS-13
N-Channel 30V 8.3A 1.46W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET N-CH 30V 8.3A SO-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMN4800LSS-13
- Store part #
- C444963
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
425 in stock
#C444963
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.14 | ₹70.70 |
| 50+ | ₹13.77 | ₹688.50 |
| 150+ | ₹13.53 | ₹2,029.50 |
| 500+ | ₹13.30 | ₹6,650.00 |
5 × ₹14.14
₹70.70
excl. GST
₹83.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMN4800LSS-13
₹70.70 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 128pF
- Ciss-Input Capacitance
- 798pF
- Pd - Power Dissipation
- 1.46W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 8.3A
- Reverse Transfer Capacitance (Crss)
- 122pF
- RDS(on)
- 14mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.7nC
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.114 g
Overview
This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Backlighting Power Management Functions
- DC-DC Converters
Key features
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN4800LSSQ-13#C461027DIODES · SO-8 | DIODES | SO-8 | 25 | ₹47.20 · 25 in stock | View |
 | DMN4800LSSL-13#C674416DIODES · SO-8 | DIODES | SO-8 | 1,195 | ₹39.90 · 1,195 in stock | View |
| SP30N15P8#C41354878Siliup · SOP-8L | Siliup | SOP-8L | 2,920 | ₹9.59 · 2,920 in stock | View | |
 | IRF7471TRPBF-TP#C41348193TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 2,390 | ₹24.50 · 2,390 in stock | View |
 | TPNCE4009S#C41348294TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 5,395 | ₹13.96 · 5,395 in stock | View |
