DIODESDatasheet (PDF)

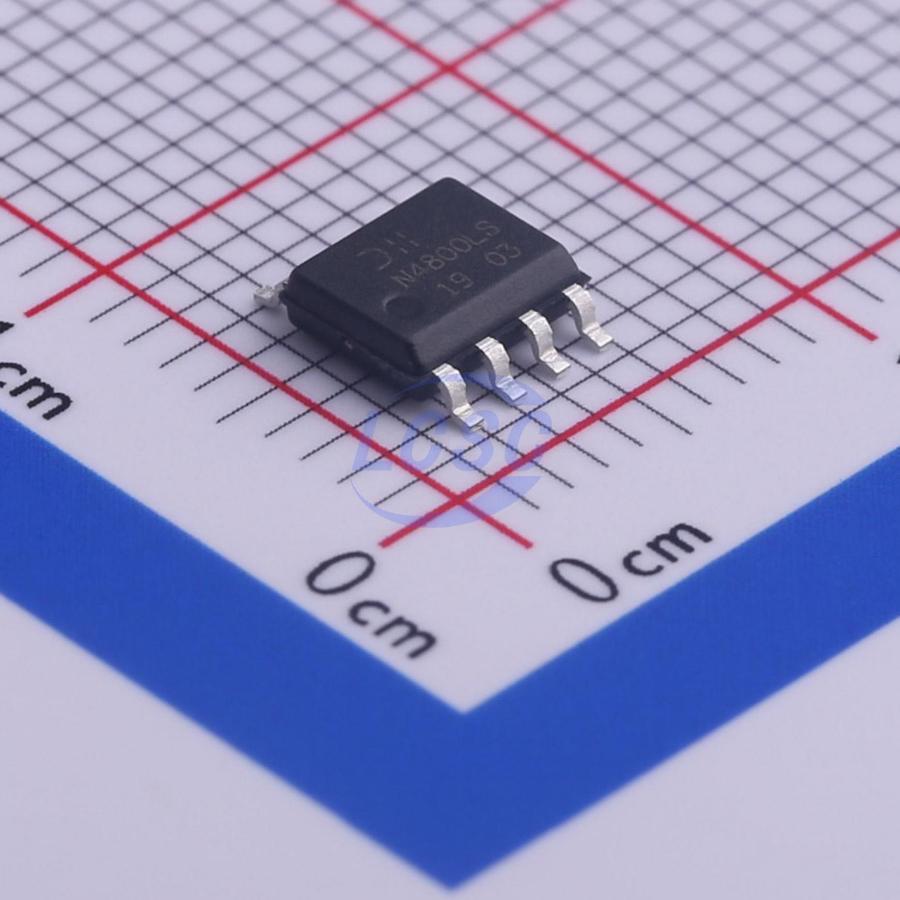

DMN4800LSSQ-13
N-Channel 30V 8.6A 1.46W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET N-CH 30V 8.6A SO-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMN4800LSSQ-13
- Store part #
- C461027
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C461027
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.20 | ₹236.00 |
| 50+ | ₹37.56 | ₹1,878.00 |
| 150+ | ₹33.43 | ₹5,014.50 |
| 500+ | ₹28.27 | ₹14,135.00 |
| 2,500+ | ₹25.98 | ₹64,950.00 |
| 5,000+ | ₹24.61 | ₹1,23,050.00 |
5 × ₹47.20
₹236.00
excl. GST
₹278.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMN4800LSSQ-13
₹236.00 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 128pF
- Ciss-Input Capacitance
- 798pF
- Pd - Power Dissipation
- 1.46W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 8.6A
- Reverse Transfer Capacitance (Crss)
- 122pF
- RDS(on)
- 20mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.7nC
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.114 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlighting
- Power Management Functions
- DC-DC Converters
Key features
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN4800LSS-13#C444963DIODES · SO-8 | DIODES | SO-8 | 425 | ₹14.14 · 425 in stock | View |
 | DMN4800LSSL-13#C674416DIODES · SO-8 | DIODES | SO-8 | 1,195 | ₹39.90 · 1,195 in stock | View |
 | IRF7471TRPBF-TP#C41348193TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 2,390 | ₹24.50 · 2,390 in stock | View |
 | TPNCE4009S#C41348294TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 5,395 | ₹13.96 · 5,395 in stock | View |
| LWN3010AS#C54221210Lewa Micro · SOP-8 | Lewa Micro | SOP-8 | 4,000 | ₹14.38 · 4,000 in stock | View | |
