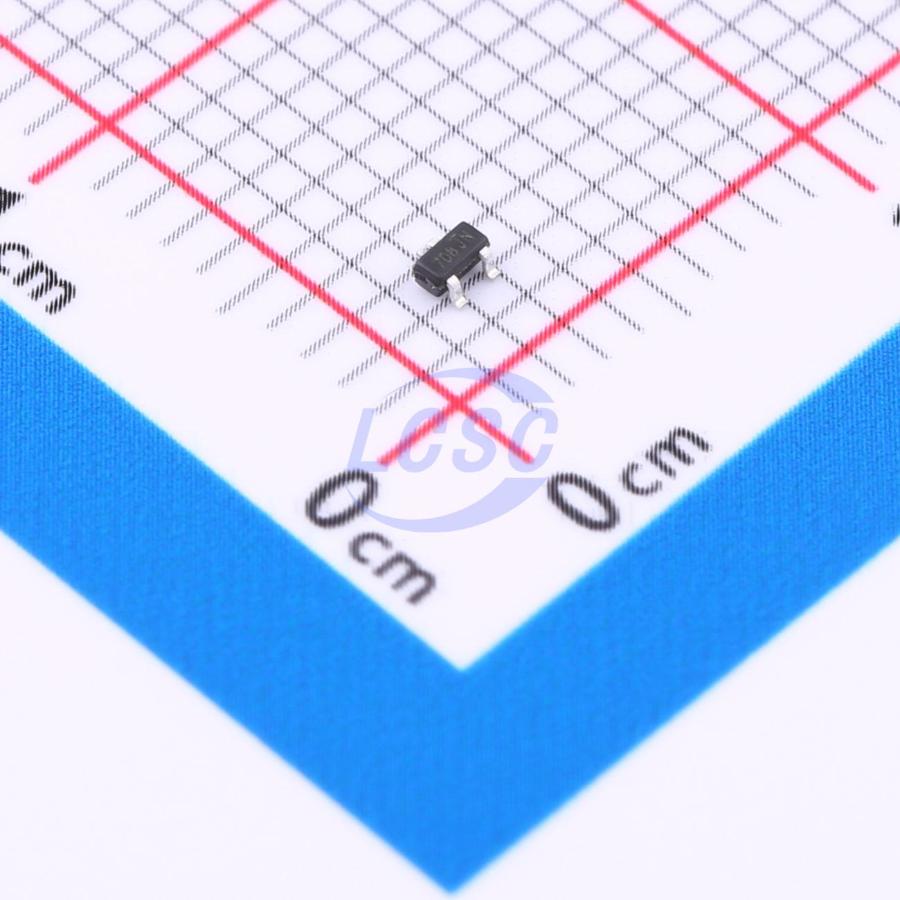

DMN67D8LT-13
N-Channel 60V 210mA 260mW Surface Mount SOT-523
SOT-523ROHS3 CompliantSold out at source
MOSFET N-CH 60V 210mA SOT-523
- Manufacturer
- DIODES
- Manufacturer part #
- DMN67D8LT-13
- Store part #
- C3277023
- Package / case
- SOT-523
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C3277023
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹7.10 | ₹35.50 |
| 50+ | ₹6.96 | ₹348.00 |
| 150+ | ₹6.85 | ₹1,027.50 |
| 500+ | ₹6.76 | ₹3,380.00 |
5 × ₹7.10
₹35.50
excl. GST
₹41.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMN67D8LT-13
₹35.50 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 4.1pF
- Current - Continuous Drain(Id)
- 210mA
- Ciss-Input Capacitance
- 22pF
- Pd - Power Dissipation
- 260mW
- Reverse Transfer Capacitance (Crss)
- 2.5pF
- RDS(on)
- 7.5Ω@5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 821pC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Motor Control - Power Management Functions
Key features
- Low on-resistance: RDS(ON)
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- Fully lead-free and fully RoHS compliant
- Halogen and antimony-free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN67D8LT-7#C3276087DIODES · SOT-523 | DIODES | SOT-523 | 30 | ₹10.77 · 30 in stock | View |
 | RE1L002SNTL#C509963ROHM · SC-89 | ROHM | SC-89 | 1,960 | ₹5.99 · 1,960 in stock | View |
| 2N7002KT#C52117606TWGMC · SOT-523 | TWGMC | SOT-523 | 750 | ₹2.61 · 750 in stock | View | |
 | DMN601TK-7#C508202DIODES · SOT-523 | DIODES | SOT-523 | 1,890 | ₹13.71 · 1,890 in stock | View |
 | DMN65D8LT-7#C7172036DIODES · SOT-523 | DIODES | SOT-523 | 50 | ₹7.00 · 50 in stock | View |
