DIODESDatasheet (PDF)

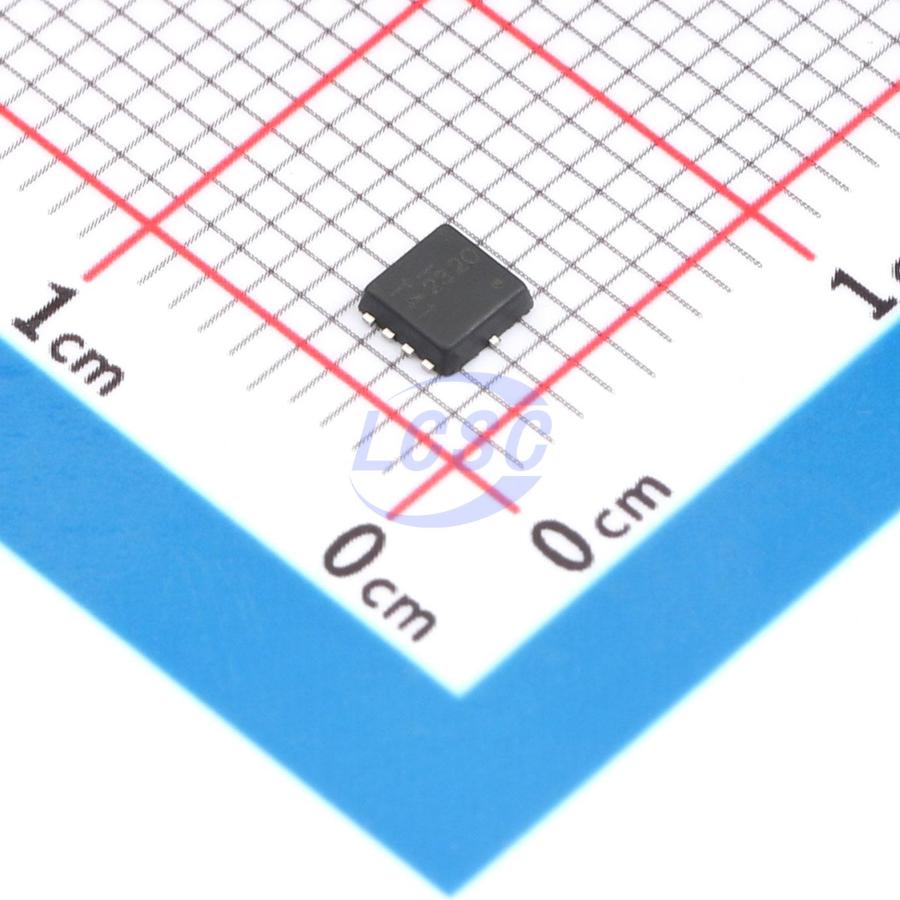

DMP1011LFV-7
P-Channel 12V 19A 2.16W Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantSold out at source
MOSFET P-CH 12V 19A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP1011LFV-7
- Store part #
- C3279392
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C3279392
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹152.63 | ₹152.63 |
| 10+ | ₹149.39 | ₹1,493.90 |
| 30+ | ₹147.02 | ₹4,410.60 |
| 100+ | ₹144.87 | ₹14,487.00 |
1 × ₹152.63
₹152.63
excl. GST
₹180.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMP1011LFV-7
₹152.63 for 1 + GST
Specifications
- Drain to Source Voltage
- 12V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 19A
- Ciss-Input Capacitance
- 913pF
- Pd - Power Dissipation
- 2.16W
- RDS(on)
- 18.6mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 9.5nC@6V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.087 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlight Illumination - Power Management Function - DC-DC Converter
Key features
- Low RDS(ON) — minimizes conduction losses
- Small footprint, thermally efficient package for higher density end products (PowerDI)
- Occupies only 33% of the board area of an SO-8 package, enabling smaller end products
- ESD protection up to 3kV
- Fully lead-free, fully RoHS compliant
- Halogen- and antimony-free "green" device
- AEC-Q101 qualified for high reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP2010UFV-7#C177036DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 386 | ₹64.97 · 386 in stock | View |
 | NCE40P20Q1#C5208054NCE · DFN3.3x3.3-8L | NCE | DFN3.3x3.3-8L | 3,140 | ₹113.06 · 3,140 in stock | View |
 | AONR21357#C7603350TECH PUBLIC · PDFN3333-8 | TECH PUBLIC | PDFN3333-8 | 2,770 | ₹34.37 · 2,770 in stock | View |
 | DMP3011SFVWQ-7#C3289385DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 3 | ₹128.38 · 3 in stock | View |
 | WSD30L30DN33#C719099Winsok Semicon · WDFN-8(3.3x3.3) | Winsok Semicon | WDFN-8(3.3x3.3) | 340 | ₹30.35 · 340 in stock | View |
