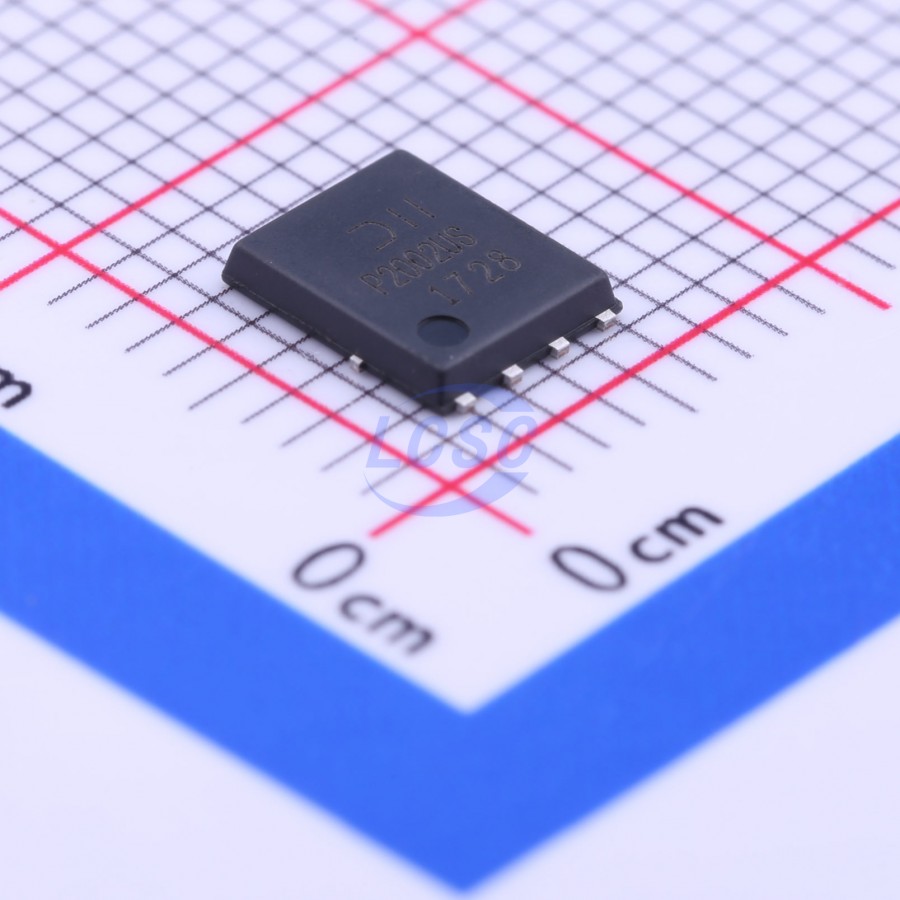

DMP2002UPS-13
P-Channel 20V 60A Surface Mount PowerDI5060-8
PowerDI5060-8ROHS3 CompliantActive
MOSFET P-CH 20V 60A PowerDI5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP2002UPS-13
- Store part #
- C154869
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
89 in stock
#C154869
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹170.15 | ₹170.15 |
| 10+ | ₹144.07 | ₹1,440.70 |
| 30+ | ₹131.03 | ₹3,930.90 |
| 100+ | ₹118.21 | ₹11,821.00 |
| 500+ | ₹110.39 | ₹55,195.00 |
| 1,000+ | ₹106.49 | ₹1,06,490.00 |
1 × ₹170.15
₹170.15
excl. GST
₹200.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP2002UPS-13
₹170.15 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.547nF
- Ciss-Input Capacitance
- 12.826nF
- Pd - Power Dissipation
- 2.3W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 1.924nF
- RDS(on)
- 3.8mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 585nC@10V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
This new generation P-Channel Enhancement Mode MOSFET is designed to minimize RDS(ON) and yet maintain superior switching performance. This device is ideal for use in notebook battery power management and load switch.
Applications
- Switch
Key features
- Thermally Efficient Package - Cooler Running Applications
- High Conversion Efficiency
- Low RDS(ON) – Minimizes On State Losses
- <1.1mm Package Profile – Ideal for Thin Applications
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC - Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA1119#C42376807HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 1,373 | ₹76.05 · 1,373 in stock | View |
 | AON6411#C81007AOS · DFN-8(5x6) | AOS | DFN-8(5x6) | 4,440 | ₹140.60 · 4,440 in stock | View |
 | SI7157DP-T1-GE3#C3279562VISHAY · PowerPAK-SO-8 | VISHAY | PowerPAK-SO-8 | 2,615 | ₹245.10 · 2,615 in stock | View |
 | LWP3007AD5#C54740918Lewa Micro · PDFN-8L(5x6) | Lewa Micro | PDFN-8L(5x6) | 4,995 | ₹48.18 · 4,995 in stock | View |
 | NC006PG-B#C54157804DOINGTER · DFN-8(5x6) | DOINGTER | DFN-8(5x6) | 130 | ₹30.14 · 130 in stock | View |
