VISHAYDatasheet (PDF)

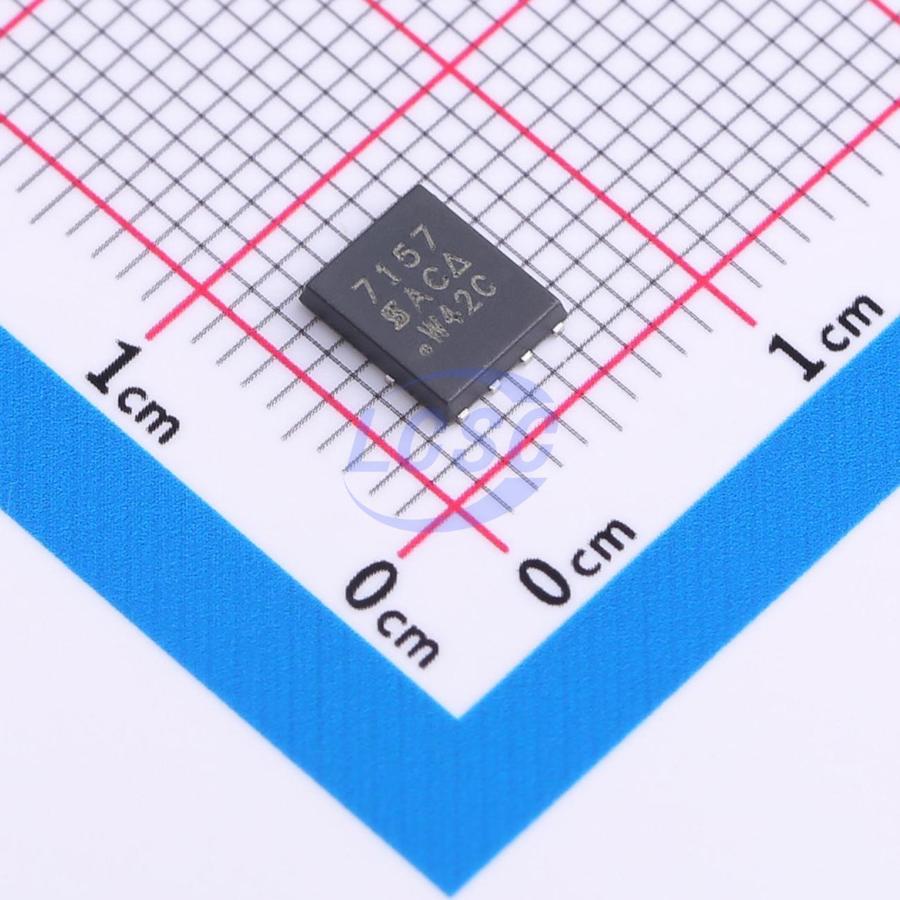

SI7157DP-T1-GE3
P-Channel 20V 60A 61.25W Surface Mount PowerPAK-SO-8
PowerPAK-SO-8ROHS3 CompliantActive
MOSFET P-CH 20V 60A PowerPAK-SO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7157DP-T1-GE3
- Store part #
- C3279562
- Package / case
- PowerPAK-SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,615 in stock
#C3279562
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹245.10 | ₹245.10 |
| 10+ | ₹206.85 | ₹2,068.50 |
| 30+ | ₹182.96 | ₹5,488.80 |
| 100+ | ₹158.40 | ₹15,840.00 |
| 500+ | ₹147.32 | ₹73,660.00 |
| 1,000+ | ₹142.54 | ₹1,42,540.00 |
1 × ₹245.10
₹245.10
excl. GST
₹289.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI7157DP-T1-GE3
₹245.10 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 22nF
- Pd - Power Dissipation
- 61.25W
- Reverse Transfer Capacitance (Crss)
- 415pF
- RDS(on)
- 3.2mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 305nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.177 g
Overview
Applications
- Mobile computing
- Adapter switching
- Battery switching
- Load switching
- Power management
Key features
- TrenchFET 3rd generation P-channel power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA90P02#C22359240HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 450 | ₹70.17 · 450 in stock | View |
 | HSBA1119#C42376807HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 1,373 | ₹76.05 · 1,373 in stock | View |
 | LWP2004AD5#C54740808Lewa Micro · PDFN-8L(5x6) | Lewa Micro | PDFN-8L(5x6) | 4,986 | ₹63.15 · 4,986 in stock | View |
 | SIRA01DP-T1-GE3-HXY#C22367088HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 419 | ₹105.81 · 419 in stock | View |
 | IRFH9310TRPBF-MS#C51927999MSKSEMI · DFN-8L(5x6) | MSKSEMI | DFN-8L(5x6) | 472 | ₹70.62 · 472 in stock | View |
