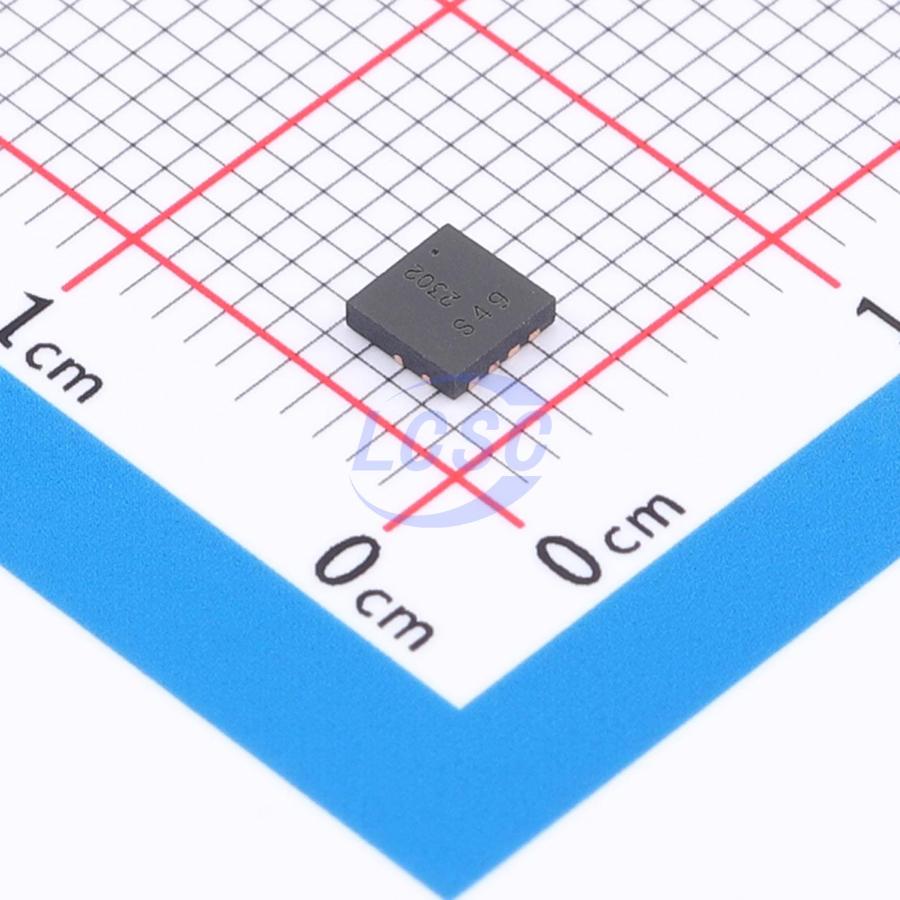

DMP2010UFG-7
P-Channel 20V 900mW Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantActive
MOSFET P-CH 20V PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP2010UFG-7
- Store part #
- C5673576
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C5673576
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.03 | ₹146.03 |
| 10+ | ₹118.43 | ₹1,184.30 |
| 30+ | ₹104.74 | ₹3,142.20 |
| 100+ | ₹91.05 | ₹9,105.00 |
| 500+ | ₹82.79 | ₹41,395.00 |
| 1,000+ | ₹78.67 | ₹78,670.00 |
1 × ₹146.03
₹146.03
excl. GST
₹172.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMP2010UFG-7
₹146.03 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 3.35nF
- Pd - Power Dissipation
- 900mW
- RDS(on)
- 9.5mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 103nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.232 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Load switches
- Power management functions
Key features
- Low RDS(ON) – Ensures On State Losses Are Minimized
- Small Form Factor
- Thermally Efficient Package Enables Higher Density End Products
- Occupies Just 33% of The Board Area Occupied by SO - 8 Enabling Smaller End Product
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP2010UFV-7#C177036DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 386 | ₹64.97 · 386 in stock | View |
| DMP2010UFV-13#C5245350DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 3 | ₹43.91 · 3 in stock | View | |
 | TPM3050PD8#C5311003TECH PUBLIC · PDFN3333-8 | TECH PUBLIC | PDFN3333-8 | 275 | ₹24.46 · 275 in stock | View |
 | TPM3050PD8-1#C5311004TECH PUBLIC · PDFN3333-8 | TECH PUBLIC | PDFN3333-8 | 370 | ₹43.02 · 370 in stock | View |
 | AONR21357#C7603350TECH PUBLIC · PDFN3333-8 | TECH PUBLIC | PDFN3333-8 | 2,770 | ₹34.37 · 2,770 in stock | View |
