HXY MOSFETDatasheet (PDF)

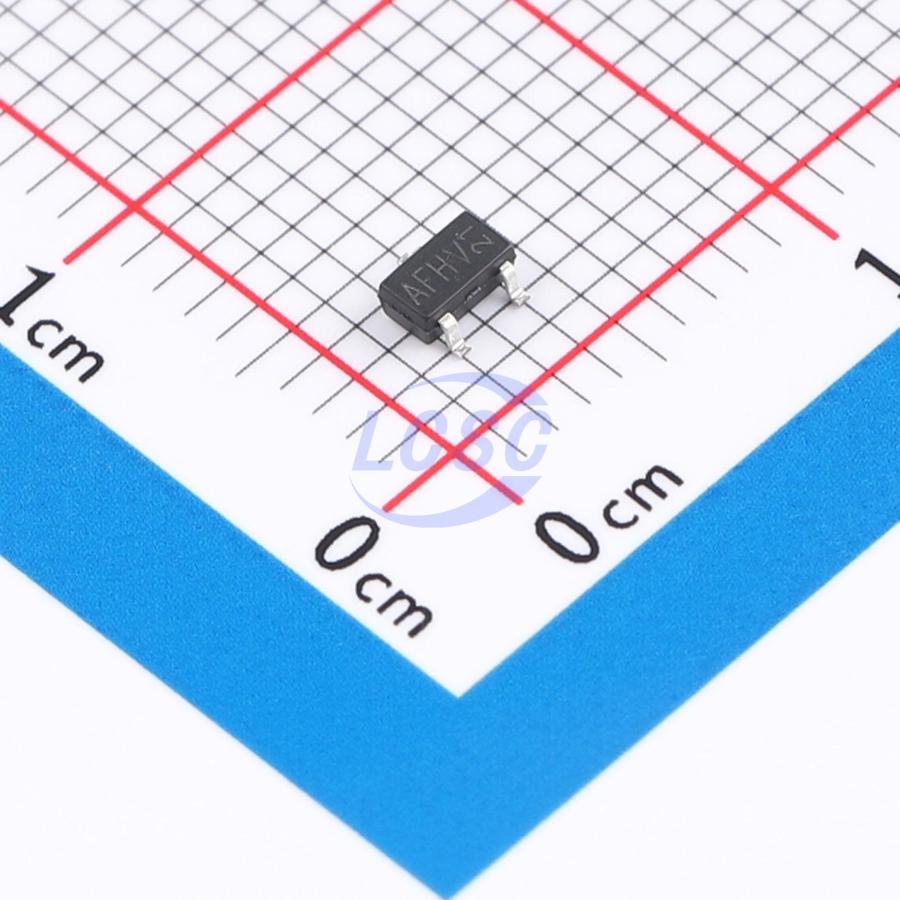

DMP2045UQ-13-HXY
20V 4.1A 1.4W 34mΩ@4.5V 1 P-Channel P-Channel SOT-23-3L Single FETs, MOSFETs
SOT-23-3LRoHSActive
MOSFET P-CH 20V 4.1A SOT-23-3L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMP2045UQ-13-HXY
- Store part #
- C51949178
- Package / case
- SOT-23-3L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C51949178
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.45 | ₹107.25 |
| 50+ | ₹17.71 | ₹885.50 |
| 150+ | ₹15.85 | ₹2,377.50 |
| 500+ | ₹14.45 | ₹7,225.00 |
| 3,000+ | ₹11.92 | ₹35,760.00 |
| 6,000+ | ₹11.36 | ₹68,160.00 |
5 × ₹21.45
₹107.25
excl. GST
₹126.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP2045UQ-13-HXY
₹107.25 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 165pF
- Current - Continuous Drain(Id)
- 4.1A
- Ciss-Input Capacitance
- 950pF
- Pd - Power Dissipation
- 1.4W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 34mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 550mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM3415SRL-HXY#C22366618HXY MOSFET · SOT-23-3L | HXY MOSFET | SOT-23-3L | 50 | ₹7.12 · 50 in stock | View |
 | FDN306P-HXY#C22367221HXY MOSFET · SOT-23-3L | HXY MOSFET | SOT-23-3L | 2,920 | ₹6.85 · 2,920 in stock | View |
 | AO3419-HXY#C22367222HXY MOSFET · SOT-23-3L | HXY MOSFET | SOT-23-3L | 10 | ₹7.70 · 10 in stock | View |
 | HXY3415MI#C3033392HXY MOSFET · SOT-23-3L | HXY MOSFET | SOT-23-3L | 80 | ₹6.14 · 80 in stock | View |
 | HDMG3415U7#C42401390HXY MOSFET · SOT-23-3L | HXY MOSFET | SOT-23-3L | 5 | ₹11.44 · 5 in stock | View |
