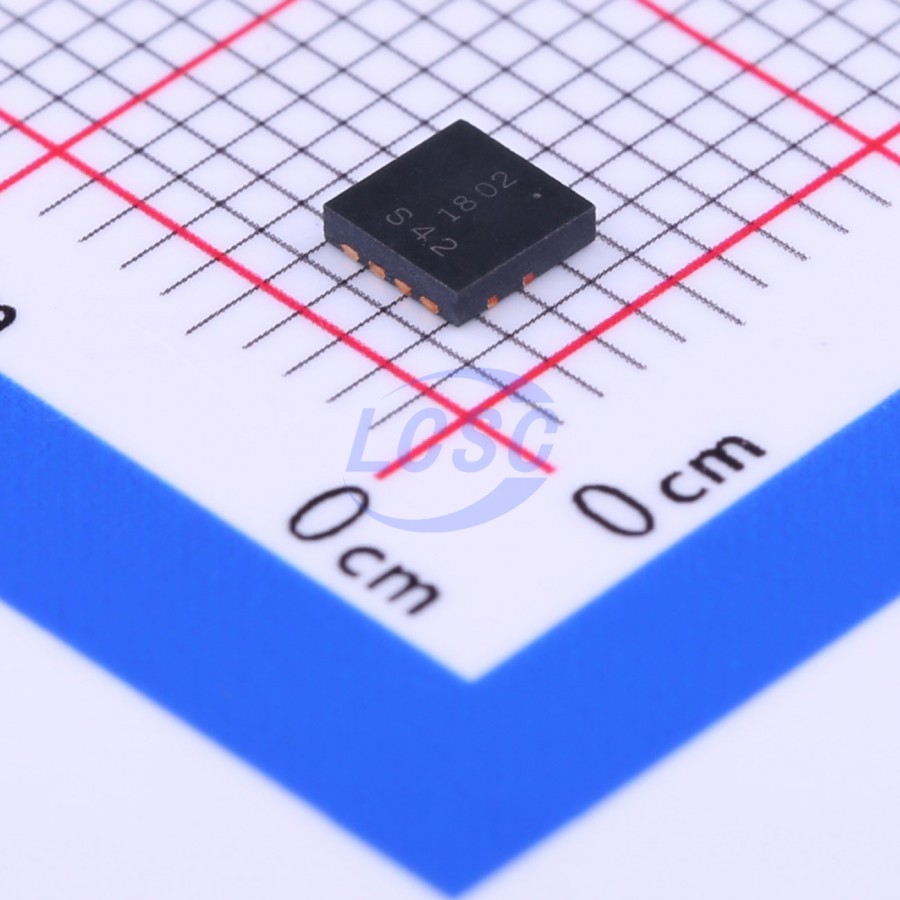

DMP26M7UFG-7
P-Channel 20V 40A 41W Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantActive
MOSFET P-CH 20V 40A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP26M7UFG-7
- Store part #
- C264094
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
679 in stock
#C264094
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.11 | ₹92.11 |
| 10+ | ₹75.90 | ₹759.00 |
| 30+ | ₹68.98 | ₹2,069.40 |
| 100+ | ₹60.12 | ₹6,012.00 |
| 500+ | ₹54.27 | ₹27,135.00 |
| 1,000+ | ₹52.11 | ₹52,110.00 |
1 × ₹92.11
₹92.11
excl. GST
₹108.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMP26M7UFG-7
₹92.11 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 835pF
- Ciss-Input Capacitance
- 5.94nF
- Pd - Power Dissipation
- 41W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 40A
- Reverse Transfer Capacitance (Crss)
- 728pF
- RDS(on)
- 9mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 156nC@10V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.087 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Load Switch Power Management Functions
Key features
- Low RDS(ON) – ensures on state losses are minimized
- Small form factor thermally efficient package enables higher density end products Occupies just 33% of the board area occupied by SO-8 enabling smaller end product
- ESD HBM Protected up to 1KV
- Totally Lead-Free & Fully RoHS Compliant Halogen and Antimony Free. “Green” Device
