VISHAYDatasheet (PDF)

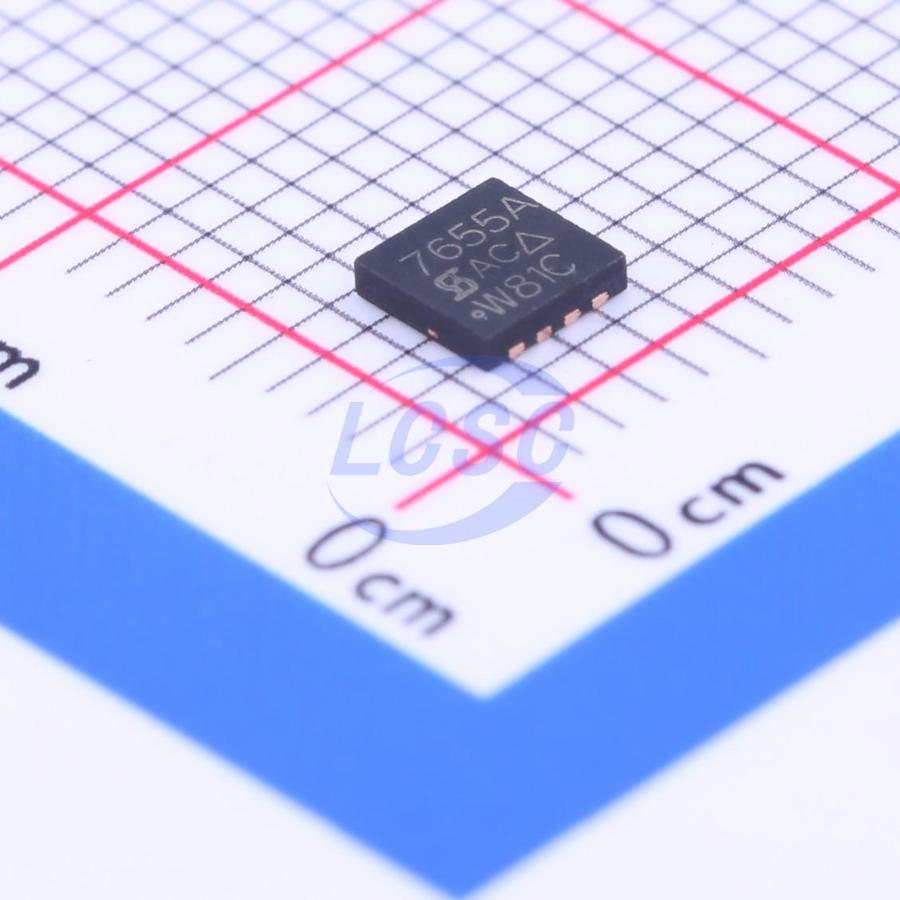

SI7655ADN-T1-GE3
P-Channel 20V 40A 57W Surface Mount PowerPAK1212-8S
PowerPAK1212-8SROHS3 CompliantActive
MOSFET P-CH 20V 40A PowerPAK1212-8S
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7655ADN-T1-GE3
- Store part #
- C222495
- Package / case
- PowerPAK1212-8S
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,495 in stock
#C222495
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹143.59 | ₹143.59 |
| 10+ | ₹112.96 | ₹1,129.60 |
| 30+ | ₹97.76 | ₹2,932.80 |
| 100+ | ₹82.54 | ₹8,254.00 |
| 500+ | ₹73.43 | ₹36,715.00 |
| 1,000+ | ₹68.86 | ₹68,860.00 |
1 × ₹143.59
₹143.59
excl. GST
₹169.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI7655ADN-T1-GE3
₹143.59 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 890pF
- Ciss-Input Capacitance
- 6.6nF
- Pd - Power Dissipation
- 57W
- Operating Temperature
- -50℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 40A
- Reverse Transfer Capacitance (Crss)
- 930pF
- RDS(on)
- 9mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 150nC@10V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Applications
- Smart Phones
- Tablet PCs
- Mobile Computing
- Battery Switch
- Load Switch
Key features
- TrenchFET Power MOSFET
- Low Thermal Resistance
- PowerPAK RoHS Package with Small Size and Low 0.75 mm Profile
- HALOGEN FREE
- 100 % Rg and UIS Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| HSCE1218#C42376799HUASHUO · DFN-8(3.3x3.3) | HUASHUO | DFN-8(3.3x3.3) | 2,575 | ₹46.91 · 2,575 in stock | View | |
 | DMP26M7UFG-7#C264094DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 679 | ₹92.11 · 679 in stock | View |
| CMSC6683A#C54443167Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 200 | ₹23.68 · 200 in stock | View | |
 | DMP2004UFG-7#C19949915DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 39 | ₹367.56 · 39 in stock | View |
 | NTTFS015P03P8ZTAG#C604495onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 19 | ₹295.33 · 19 in stock | View |
