HXY MOSFETDatasheet (PDF)

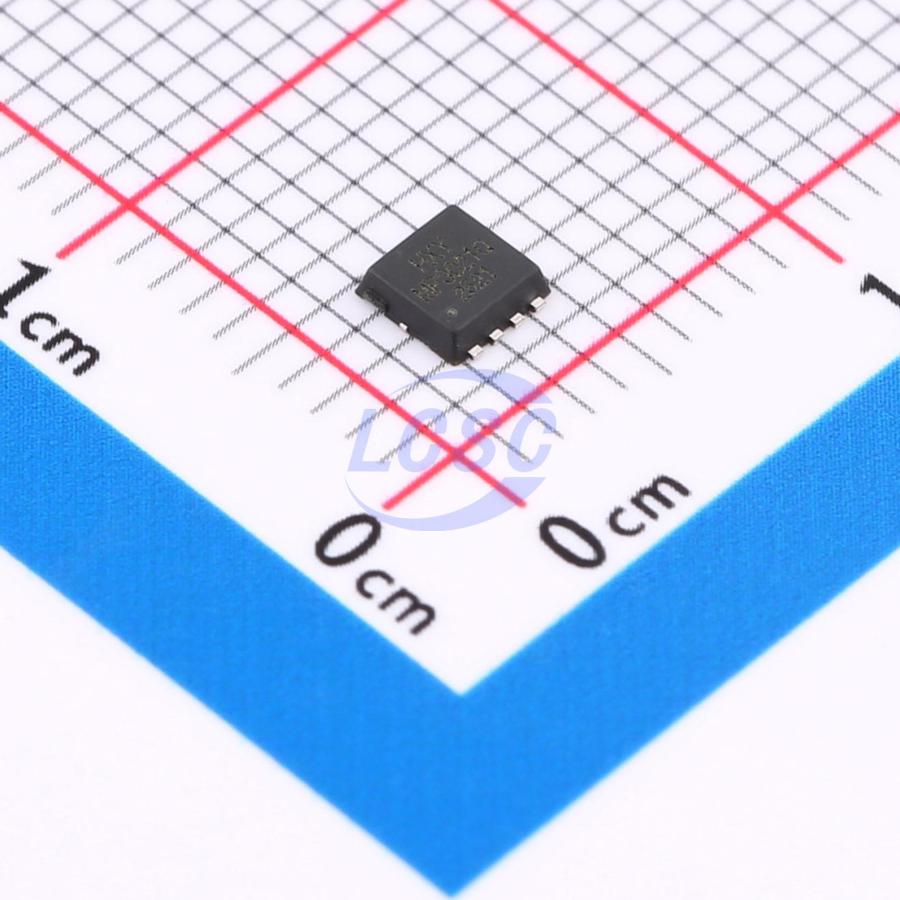

DMP3021SFVWQ-13-HXY
30V 32A 3.57W 10mΩ@10V 1 P-Channel P-Channel DFN-8(3x3) Single FETs, MOSFETs
DFN-8(3x3)RoHSActive
MOSFET P-CH 30V 50A DFN-8(3x3)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMP3021SFVWQ-13-HXY
- Store part #
- C49256417
- Package / case
- DFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
296 in stock
#C49256417
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.45 | ₹73.45 |
| 10+ | ₹58.85 | ₹588.50 |
| 30+ | ₹52.63 | ₹1,578.90 |
| 100+ | ₹44.89 | ₹4,489.00 |
| 500+ | ₹41.24 | ₹20,620.00 |
| 1,000+ | ₹39.31 | ₹39,310.00 |
1 × ₹73.45
₹73.45
excl. GST
₹86.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DMP3021SFVWQ-13-HXY
₹73.45 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 32A
- Output Capacitance(Coss)
- 194pF
- Ciss-Input Capacitance
- 1.345nF
- Pd - Power Dissipation
- 3.57W
- Reverse Transfer Capacitance (Crss)
- 158pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12.5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.95V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.056 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MDV3604URH-HXY#C22366846HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 213 | ₹76.28 · 213 in stock | View |
 | HXY3419DF#C3033459HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 378 | ₹26.70 · 378 in stock | View |
 | AON3419-HXY#C4748765HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 4,985 | ₹26.98 · 4,985 in stock | View |
 | SI7617DN-T1-GE3-HXY#C49256412HXY MOSFET · DFN-8(3x3) | HXY MOSFET | DFN-8(3x3) | 141 | ₹59.76 · 141 in stock | View |
 | SI7129DN-T1-GE3-HXY#C49256413HXY MOSFET · DFN-8(3x3) | HXY MOSFET | DFN-8(3x3) | 450 | ₹34.58 · 450 in stock | View |
