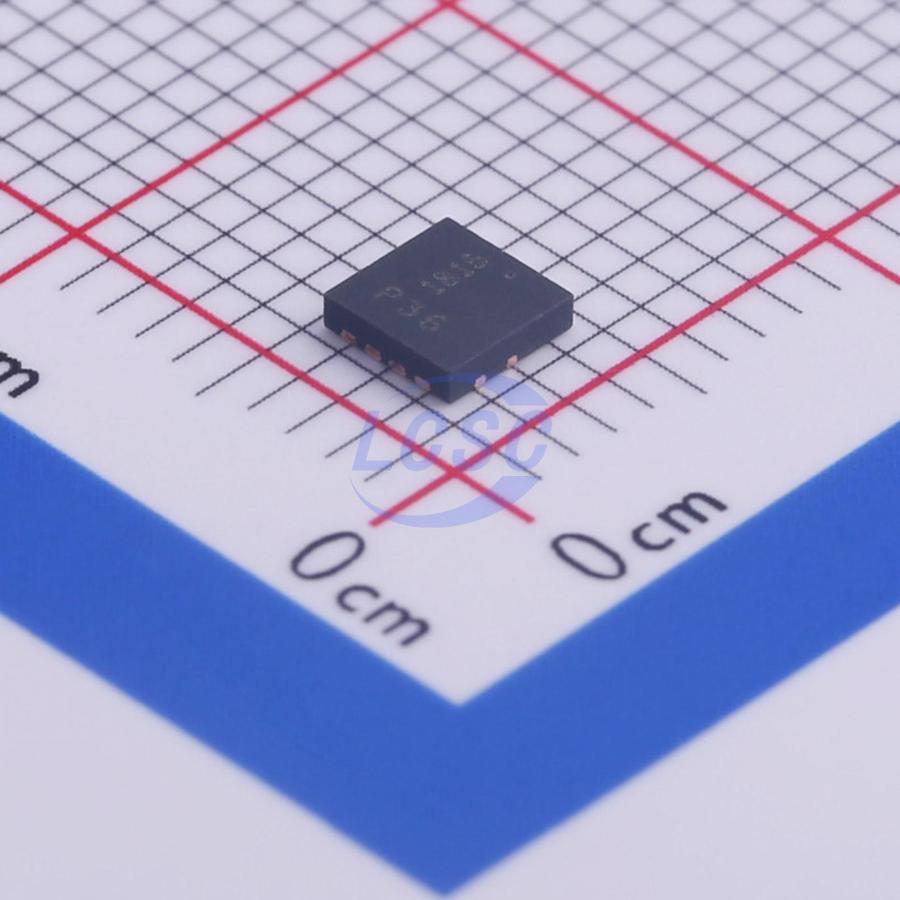

DMP3036SFG-7
P-Channel 30V 8.7A 950mW Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantActive
MOSFET P-CH 30V 8.7A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP3036SFG-7
- Store part #
- C461081
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
53 in stock
#C461081
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.27 | ₹107.27 |
| 10+ | ₹90.69 | ₹906.90 |
| 30+ | ₹82.41 | ₹2,472.30 |
| 100+ | ₹74.13 | ₹7,413.00 |
| 500+ | ₹69.11 | ₹34,555.00 |
| 1,000+ | ₹66.72 | ₹66,720.00 |
1 × ₹107.27
₹107.27
excl. GST
₹126.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMP3036SFG-7
₹107.27 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 8.7A
- Ciss-Input Capacitance
- 1.931nF
- Pd - Power Dissipation
- 950mW
- RDS(on)
- 20mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 16.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.058 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.
Applications
- Backlighting
- Power-management functions
- DC-DC converters
Key features
- Low RDS(ON) – ensures on state losses are minimized.
- Small form factor thermally efficient package enables higher density end products.
- Occupies just 33% of the board area occupied by SO-8 enabling smaller end product.
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| DMP3036SFG-13#C6183701DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 55 | ₹215.81 · 55 in stock | View | |
| DMP3036SFV-7#C6601849DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 3 | ₹201.61 · 3 in stock | View | |
| RQ3G270BJFRATCB#C27135145ROHM · HSMT-8 | ROHM | HSMT-8 | 10 | ₹143.59 · 10 in stock | View | |
 | DMP3036SFV-13#C460054DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 492 | ₹61.15 · 492 in stock | View |
 | CMSC7341#C6939765Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 35 | ₹21.60 · 35 in stock | View |
