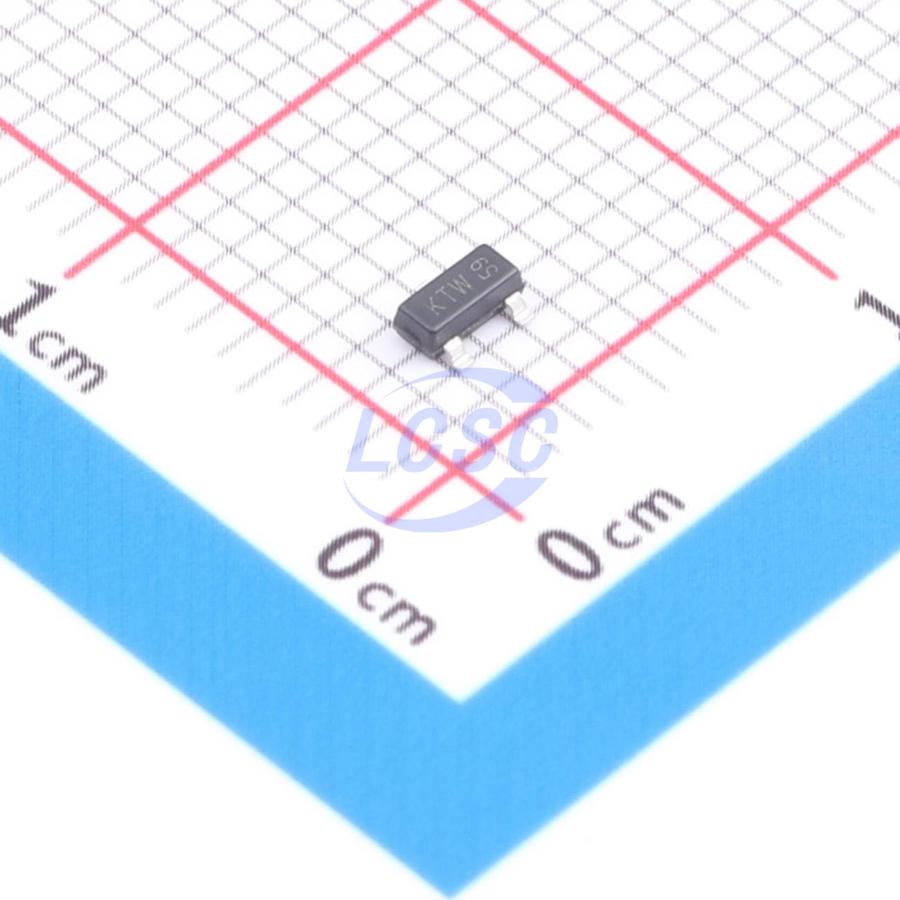

DMP31D0U-TP
30V 800mA 1.25W 300mΩ@4.5V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- DMP31D0U-TP
- Store part #
- C55042590
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C55042590
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.02 | ₹80.20 |
| 100+ | ₹6.31 | ₹631.00 |
| 300+ | ₹5.45 | ₹1,635.00 |
| 3,000+ | ₹4.80 | ₹14,400.00 |
| 6,000+ | ₹4.30 | ₹25,800.00 |
| 9,000+ | ₹4.04 | ₹36,360.00 |
10 × ₹8.02
₹80.20
excl. GST
₹94.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP31D0U-TP
₹80.20 for 10 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 800mA
- Output Capacitance(Coss)
- 80pF
- Ciss-Input Capacitance
- 200pF
- Pd - Power Dissipation
- 1.25W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 300mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 6nC
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 700mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NX3008PBK(TP)#C53340821TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹8.02 · 3,000 in stock | View |
 | DMP31D1U-TP#C55042591TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹8.02 · 3,000 in stock | View |
 | XP231P02013R-TP#C55042754TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹8.02 · 3,000 in stock | View |
 | XP231P0201TR-TP#C55042755TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹8.02 · 3,000 in stock | View |
 | BSH203(TP)#C52817073TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,870 | ₹10.82 · 2,870 in stock | View |
