DIODESDatasheet (PDF)

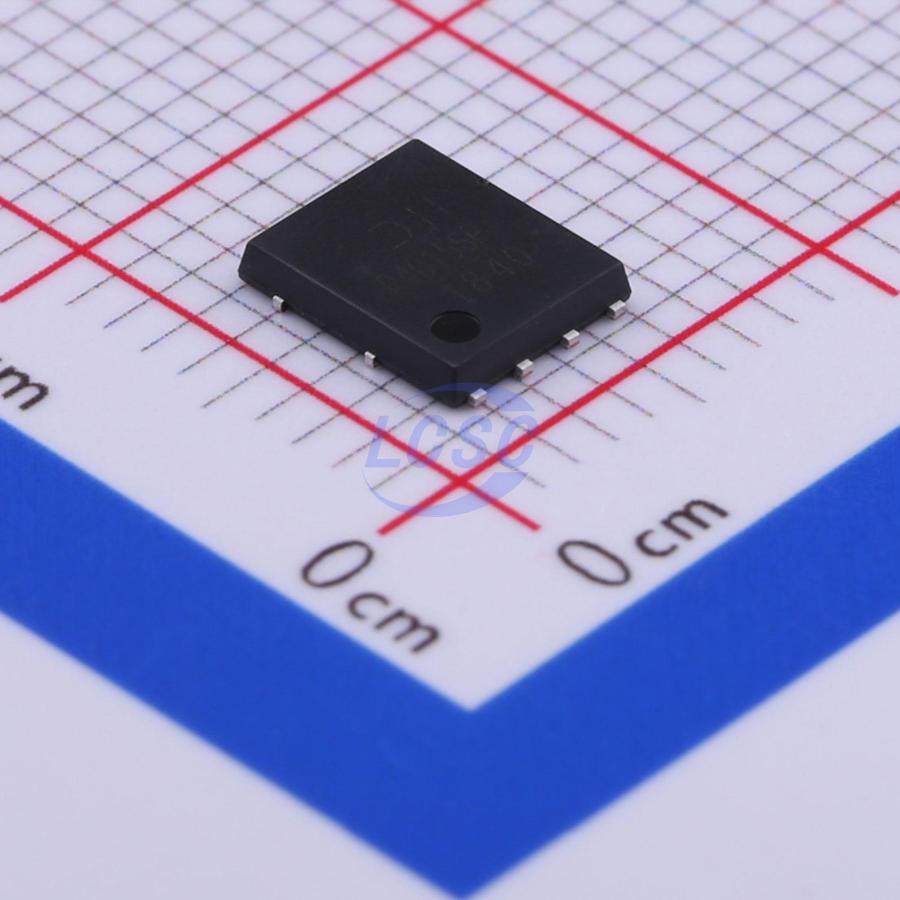

DMP4015SPSQ-13
P-Channel 40V 11A 2.1W Surface Mount PowerDI5060-8
PowerDI5060-8ROHS3 CompliantActive
MOSFET P-CH 40V 11A PowerDI5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP4015SPSQ-13
- Store part #
- C384564
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,222 in stock
#C384564
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹139.21 | ₹139.21 |
| 10+ | ₹111.89 | ₹1,118.90 |
| 30+ | ₹98.44 | ₹2,953.20 |
| 100+ | ₹85.00 | ₹8,500.00 |
| 500+ | ₹76.97 | ₹38,485.00 |
| 1,000+ | ₹72.65 | ₹72,650.00 |
1 × ₹139.21
₹139.21
excl. GST
₹164.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP4015SPSQ-13
₹139.21 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 1.036nF
- Current - Continuous Drain(Id)
- 11A
- Ciss-Input Capacitance
- 4.234nF
- Pd - Power Dissipation
- 2.1W
- Reverse Transfer Capacitance (Crss)
- 526pF
- RDS(on)
- 7mΩ@10V;9mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 47.5nC@5V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.395 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It is AEC-Q101 compliant with PPAP support, making it ideal for the following applications: DC-DC converters Power management functions Analog switches
Applications
- DC-DC Converter
- Power Management Function
- Analog Switch
Key features
- 100% Unclamped Inductive Switching (UIS) tested in production
- Low on-resistance
- Fast switching speed
- Lead-free surface finish; RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP4015SPS-13#C155290DIODES · TDSON-8-EP(5x6) | DIODES | TDSON-8-EP(5x6) | 183 | ₹114.43 · 183 in stock | View |
 | HSBA4115#C2903567HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 1,315 | ₹41.18 · 1,315 in stock | View |
 | SP60P08GNK#C49257262Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | 1,025 | ₹69.25 · 1,025 in stock | View |
 | NH100PG-C#C54157860DOINGTER · DFN-8(5x6) | DOINGTER | DFN-8(5x6) | 105 | ₹35.13 · 105 in stock | View |
 | DMP4011SPSQ-13#C5157848DIODES · PowerDI5060-8 | DIODES | PowerDI5060-8 | 3 | ₹249.57 · 3 in stock | View |
