DIODESDatasheet (PDF)

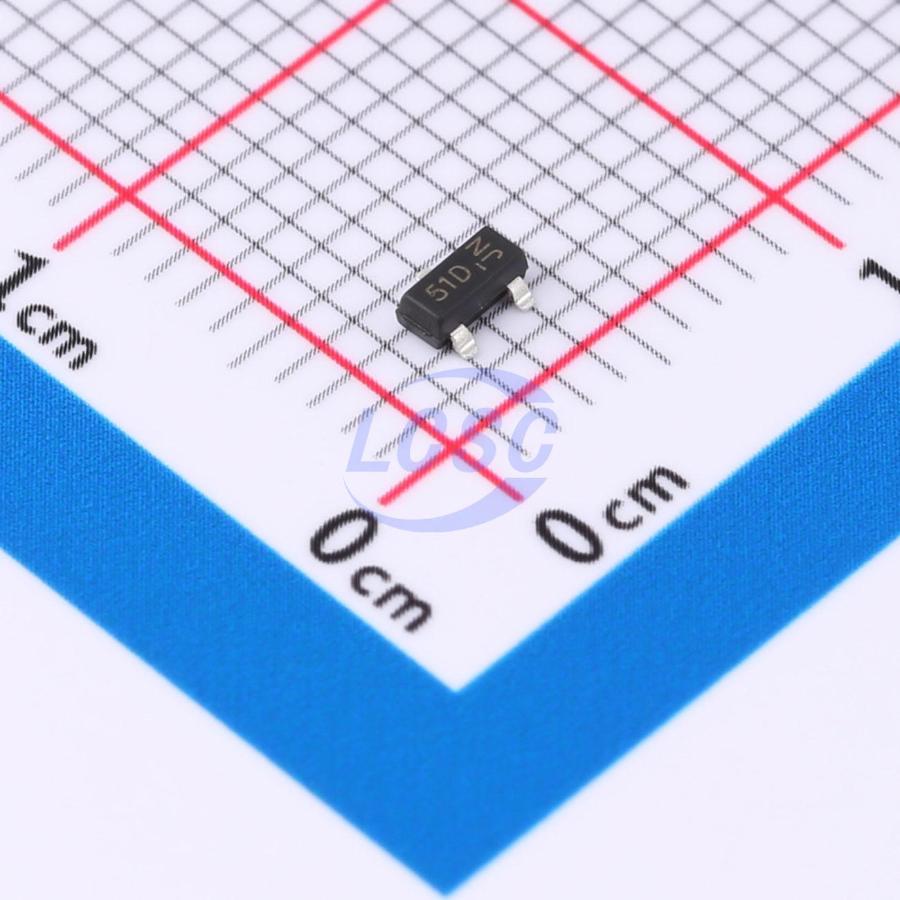

DMP510DL-13
50V 180mA 310mW Surface Mount SOT-23-3
SOT-23-3ROHS3 CompliantSold out at source
MOSFET 50V 180mA SOT-23-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMP510DL-13
- Store part #
- C3290041
- Package / case
- SOT-23-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C3290041
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.99 | ₹54.95 |
| 50+ | ₹10.84 | ₹542.00 |
| 150+ | ₹10.73 | ₹1,609.50 |
| 500+ | ₹10.61 | ₹5,305.00 |
5 × ₹10.99
₹54.95
excl. GST
₹64.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMP510DL-13
₹54.95 for 5 + GST
Specifications
- Drain to Source Voltage
- 50V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 180mA
- Ciss-Input Capacitance
- 24.6pF
- Pd - Power Dissipation
- 310mW
- Reverse Transfer Capacitance (Crss)
- 2.8pF
- RDS(on)
- 10Ω@5V
- Number
- 1 P-Channel
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- General Purpose Interfacing Switch
- Power Management Functions
- Analog Switch
Key features
- Low On-Resistance
- Low Gate Threshold Voltage
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- This part is qualified to JEDEC standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP610DL-7#C705095DIODES · SOT-23 | DIODES | SOT-23 | 4,070 | ₹21.70 · 4,070 in stock | View |
 | DMP510DL-7#C397953DIODES · SOT-23 | DIODES | SOT-23 | 4,650 | ₹18.44 · 4,650 in stock | View |
 | TP0610K-T1-E3#C74714VISHAY · SOT-23 | VISHAY | SOT-23 | 5,951 | ₹63.58 · 5,951 in stock | View |
 | WPM5001-3/TR#C2941877WILLSEMI · SOT-23 | WILLSEMI | SOT-23 | 2,710 | ₹6.71 · 2,710 in stock | View |
 | DMP610DLQ-7#C6601853DIODES · SOT-23-3 | DIODES | SOT-23-3 | 15 | ₹23.51 · 15 in stock | View |
