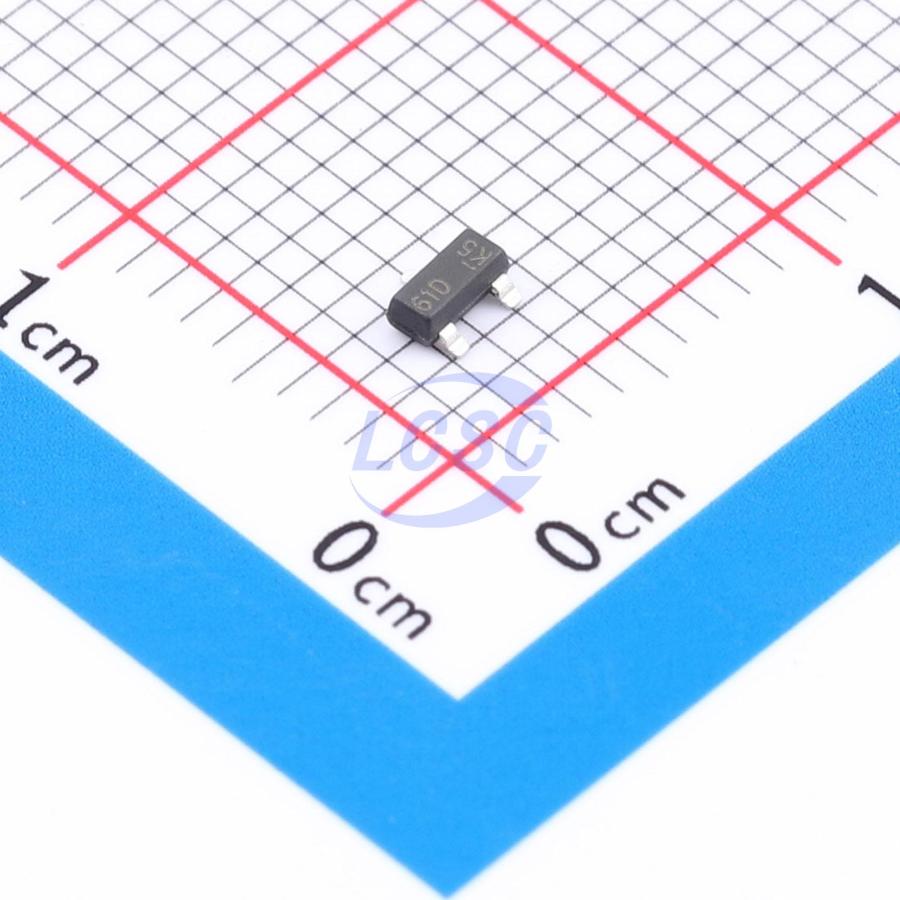

DMP610DLQ-7
60V 186mA 520mW 10Ω@5V 1 P-Channel SOT-23-3 Single FETs, MOSFETs RoHS
SOT-23-3ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMP610DLQ-7
- Store part #
- C6601853
- Package / case
- SOT-23-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C6601853
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.51 | ₹117.55 |
| 50+ | ₹22.95 | ₹1,147.50 |
| 150+ | ₹22.58 | ₹3,387.00 |
| 500+ | ₹22.21 | ₹11,105.00 |
5 × ₹23.51
₹117.55
excl. GST
₹138.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP610DLQ-7
₹117.55 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 186mA
- Ciss-Input Capacitance
- 40pF
- Pd - Power Dissipation
- 520mW
- RDS(on)
- 10Ω@5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 500pC@5V
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.117 g
Overview
This MOSFET is designed to meet the demanding requirements of automotive applications. It complies with AEC-Q101 and supports PPAP, making it ideal for: - General-purpose interface switching - Power management functions - Analog switching
Applications
- General-purpose interface switch
- Power management function
- Analog switch
Key features
- Low on-resistance
- Low gate threshold voltage
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free "Green" device
- Suitable for automotive applications requiring specific change control; AEC-Q101 qualified, PPAP capable, manufactured in IATF 16949 certified facility
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT310P6H5S#C55967580R+O · SOT-23 | R+O | SOT-23 | 90 | ₹15.04 · 90 in stock | View |
 | VBZ84#C699532VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 10 | ₹10.17 · 10 in stock | View |
 | 2SJ210-T1B-A-VB#C18212445VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 20 | ₹9.78 · 20 in stock | View |
 | BSS84AK-VB#C18212582VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 30 | ₹9.99 · 30 in stock | View |
 | 2SK209-VB#C20755055VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹11.21 · 50 in stock | View |
