HXY MOSFETDatasheet (PDF)

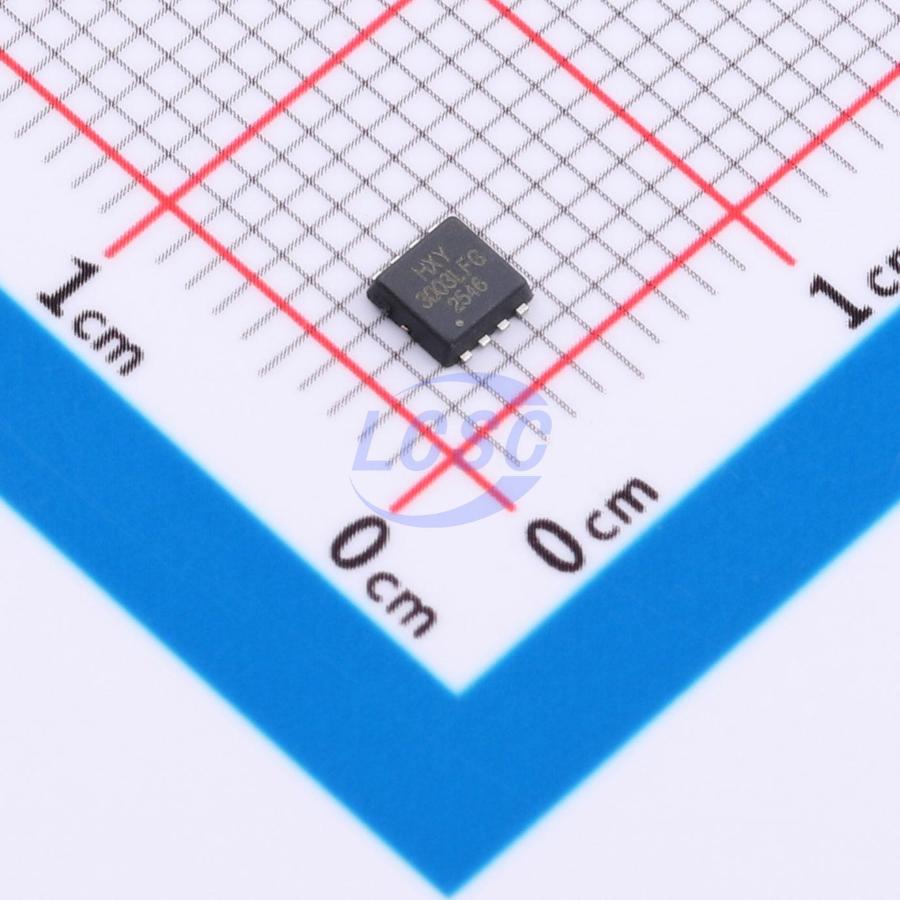

DMT3003LFGQ-7-HXY
31.7W 30V 100A 2.5mΩ@10V 1 N-channel N-Channel DFN-8L(3x3) Single FETs, MOSFETs
DFN-8L(3x3)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMT3003LFGQ-7-HXY
- Store part #
- C53263216
- Package / case
- DFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
93 in stock
#C53263216
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.19 | ₹97.19 |
| 10+ | ₹78.72 | ₹787.20 |
| 30+ | ₹69.70 | ₹2,091.00 |
| 100+ | ₹60.67 | ₹6,067.00 |
| 500+ | ₹55.21 | ₹27,605.00 |
| 1,000+ | ₹52.27 | ₹52,270.00 |
1 × ₹97.19
₹97.19
excl. GST
₹114.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DMT3003LFGQ-7-HXY
₹97.19 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 499pF
- Ciss-Input Capacitance
- 3.499nF
- Pd - Power Dissipation
- 31.7W
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 430pF
- RDS(on)
- 2.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 69nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.071 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AON7508#C53262982HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 4,975 | ₹30.30 · 4,975 in stock | View |
 | DMT3003LFG-7-HXY#C53263029HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 497 | ₹78.71 · 497 in stock | View |
 | DMT34M5LFVW-7-HXY#C53263049HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 95 | ₹53.83 · 95 in stock | View |
 | SQS124ELNW-T1_GE3-HXY#C53263054HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 98 | ₹95.80 · 98 in stock | View |
 | SISA10BDN-T1-GE3-HXY#C53263055HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 63 | ₹98.96 · 63 in stock | View |
