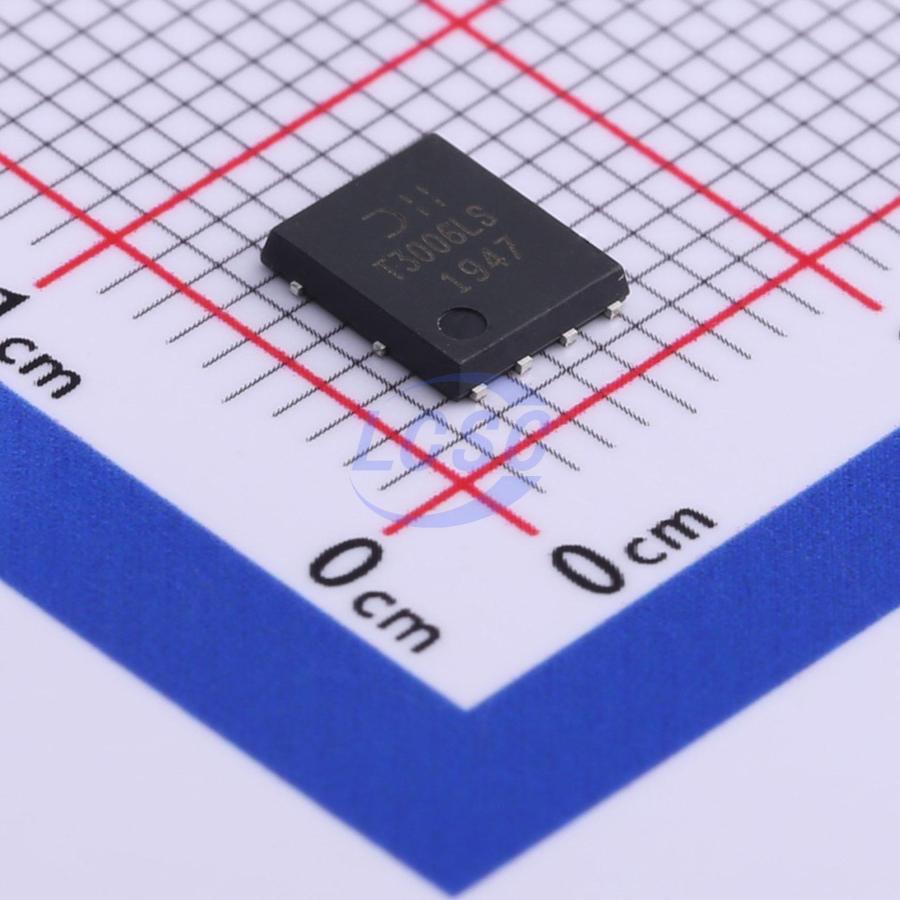

DMT3006LPS-13
N-Channel 30V 65A 42W Surface Mount PowerDI-5060-8
PowerDI-5060-8ROHS3 CompliantActive
MOSFET N-CH 30V 65A PowerDI-5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMT3006LPS-13
- Store part #
- C434457
- Package / case
- PowerDI-5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
163 in stock
#C434457
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.68 | ₹68.68 |
| 10+ | ₹54.98 | ₹549.80 |
| 30+ | ₹49.11 | ₹1,473.30 |
| 100+ | ₹41.73 | ₹4,173.00 |
| 500+ | ₹38.25 | ₹19,125.00 |
| 1,000+ | ₹34.77 | ₹34,770.00 |
1 × ₹68.68
₹68.68
excl. GST
₹81.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMT3006LPS-13
₹68.68 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 456pF
- Current - Continuous Drain(Id)
- 65A
- Ciss-Input Capacitance
- 1.155nF
- Pd - Power Dissipation
- 42W
- Reverse Transfer Capacitance (Crss)
- 72pF
- RDS(on)
- 4.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlight Illumination - Power Management Function - DC-DC Converter
Key features
- Low RDS(ON) — minimizes conduction losses
- Excellent Qgd x RDS(ON) figure of merit
- Advanced technology for DC-DC converters
- Small, thermally efficient package for higher-density end products
- 100% unclamped inductive switching — ensures higher reliability
- Lead-free finish; RoHS compliant
- Halogen-free and antimony-free. "Green" device
- Meets JEDEC standards (as referenced in AEC-Q) for high reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMT36M1LPS-13#C6225448DIODES · PowerDI5060-8 | DIODES | PowerDI5060-8 | 11 | ₹89.10 · 11 in stock | View |
 | SP30N06GNK#C22466704Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | 1,620 | ₹17.49 · 1,620 in stock | View |
 | HSBA3004#C2828500HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 2,930 | ₹24.44 · 2,930 in stock | View |
| HSBA3068#C28314519HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 415 | ₹31.22 · 415 in stock | View | |
 | SP30N06NK#C41354869Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | 4,720 | ₹18.81 · 4,720 in stock | View |
