DIODESDatasheet (PDF)

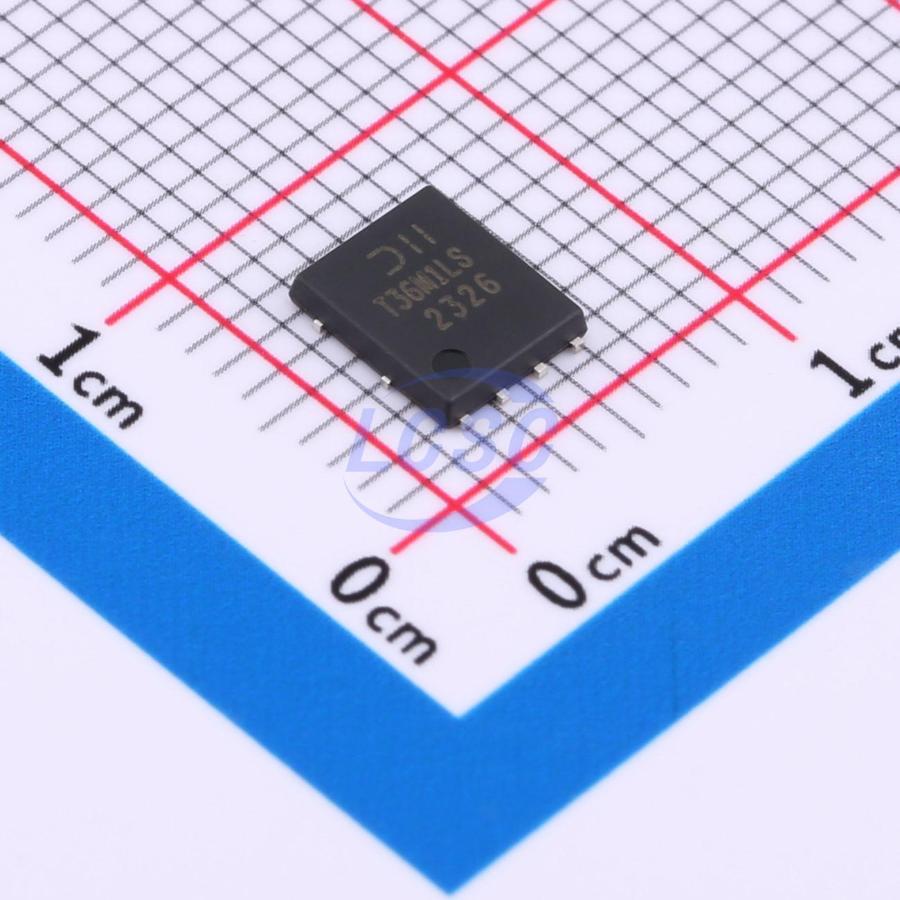

DMT36M1LPS-13
N-Channel 30V 65A 42W Surface Mount PowerDI5060-8
PowerDI5060-8ROHS3 CompliantActive
MOSFET N-CH 30V 65A PowerDI5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMT36M1LPS-13
- Store part #
- C6225448
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C6225448
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.10 | ₹89.10 |
| 10+ | ₹72.14 | ₹721.40 |
| 30+ | ₹63.89 | ₹1,916.70 |
| 100+ | ₹55.42 | ₹5,542.00 |
| 500+ | ₹50.42 | ₹25,210.00 |
| 1,000+ | ₹48.02 | ₹48,020.00 |
1 × ₹89.10
₹89.10
excl. GST
₹105.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMT36M1LPS-13
₹89.10 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 456pF
- Current - Continuous Drain(Id)
- 65A
- Ciss-Input Capacitance
- 1.155nF
- Pd - Power Dissipation
- 42W
- Reverse Transfer Capacitance (Crss)
- 72pF
- RDS(on)
- 4.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.261 g
Overview
This MOSFET is designed to minimize on-resistance RDS(ON) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlight source
- Power management function
- DC-DC converter
Key features
- Low R\textDS(ON) — minimizes conduction losses
- Excellent Qgd x RDS(ON) figure of merit
- Advanced technology for DC-DC converters
- Compact, thermally efficient package for higher-density end products
- 100% unclamped inductive switching — ensures higher reliability
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free. "Green" device
