HXY MOSFETDatasheet (PDF)

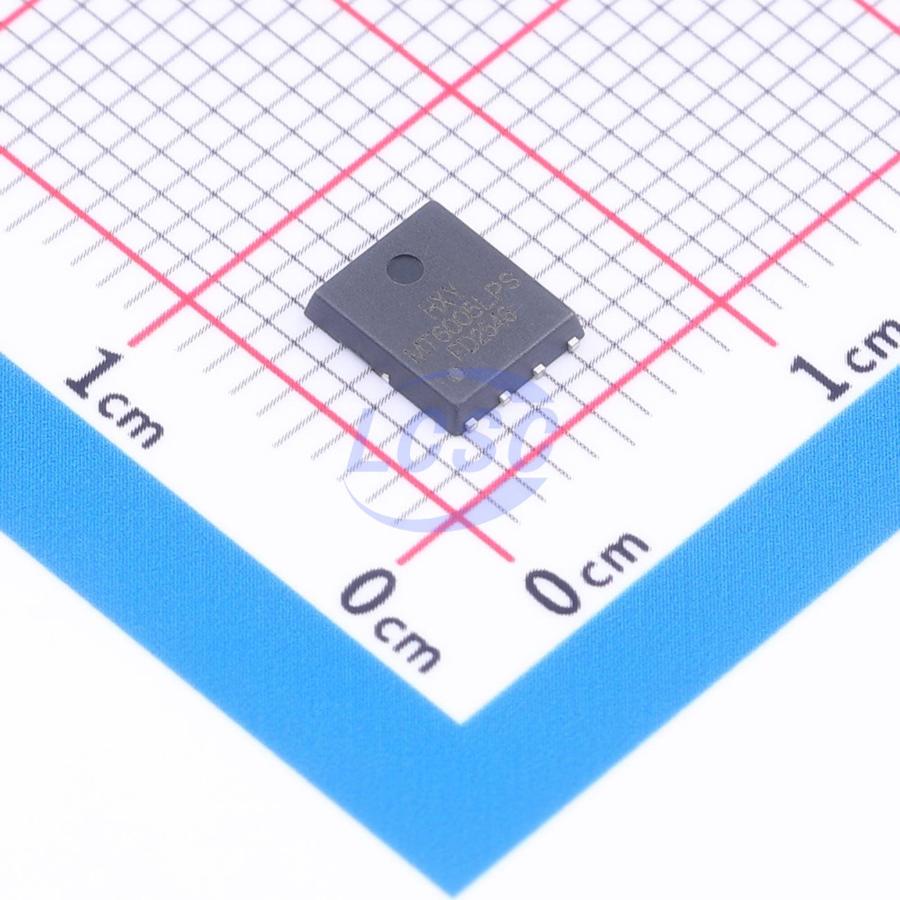

DMT6005LPSW-13-HXY
73.5W 60V 100A 3.7mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMT6005LPSW-13-HXY
- Store part #
- C53262862
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32 in stock
#C53262862
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.18 | ₹107.18 |
| 10+ | ₹87.85 | ₹878.50 |
| 30+ | ₹78.18 | ₹2,345.40 |
| 100+ | ₹68.73 | ₹6,873.00 |
| 500+ | ₹63.15 | ₹31,575.00 |
| 1,000+ | ₹60.14 | ₹60,140.00 |
1 × ₹107.18
₹107.18
excl. GST
₹126.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DMT6005LPSW-13-HXY
₹107.18 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 773pF
- Ciss-Input Capacitance
- 1.673nF
- Pd - Power Dissipation
- 73.5W
- Drain to Source Voltage
- 60V
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 46.8pF
- RDS(on)
- 3.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.9V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMT6005LPS-13-HXY#C51949314HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 158 | ₹60.50 · 158 in stock | View |
 | SIR186LDP-T1-RE3-HXY#C51949316HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 368 | ₹109.28 · 368 in stock | View |
 | NVMFS5C646NLWFAFT1G-HXY#C51949324HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 37 | ₹231.74 · 37 in stock | View |
 | NTMFS5C646NLT3G-HXY#C51949325HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 99 | ₹231.74 · 99 in stock | View |
 | SIR186DP-T1-RE3-HXY#C53262845HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 97 | ₹103.52 · 97 in stock | View |
