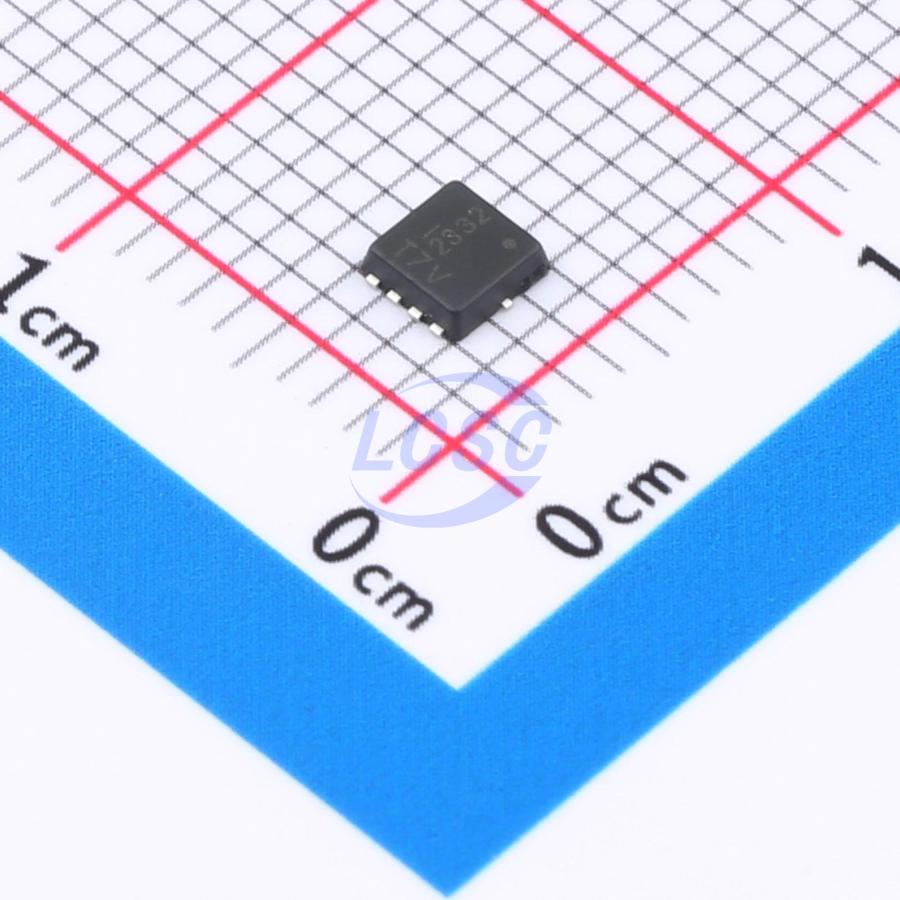

DMT6017LFV-7
N-Channel 65V 2.12W Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantActive
MOSFET N-CH 65V PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMT6017LFV-7
- Store part #
- C5157830
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
68 in stock
#C5157830
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.02 | ₹83.02 |
| 10+ | ₹81.27 | ₹812.70 |
| 30+ | ₹79.98 | ₹2,399.40 |
| 100+ | ₹78.67 | ₹7,867.00 |
1 × ₹83.02
₹83.02
excl. GST
₹97.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMT6017LFV-7
₹83.02 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 65V
- Output Capacitance(Coss)
- 223pF
- Current - Continuous Drain(Id)
- 36A
- Ciss-Input Capacitance
- 891pF
- Pd - Power Dissipation
- 2.12W
- Reverse Transfer Capacitance (Crss)
- 29pF
- RDS(on)
- 13mΩ@10V;17.1mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.095 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Motor Control
- DC-DC Converters
- Power Management
Key features
- 100% Unclamped Inductive Switching, Test in Production – Ensures More Reliable And Robust End Application
- Low RDS(ON) – Ensures On-State Losses are Minimized
- Small Form Factor Thermally Efficient Package Enables Higher Density End Products
- Occupies just 33% of the Board Area Occupied by SO-8 Enabling Smaller End Product
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTTFS012N10MDTAG#C5208924onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 8 | ₹158.20 · 8 in stock | View |
 | YJQ40G10A#C919608YANGJIE · DFN3333-8L | YANGJIE | DFN3333-8L | 1,27,875 | ₹48.30 · 1,27,875 in stock | View |
 | DMT8008LFG-7#C2960360DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 127 | ₹215.03 · 127 in stock | View |
| NTTFS6H854NLTAG#C900364onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 10 | ₹298.98 · 10 in stock | View | |
 | BMQ100N38#C42432421BORN · DFN3333-8L | BORN | DFN3333-8L | 2,105 | ₹33.45 · 2,105 in stock | View |
