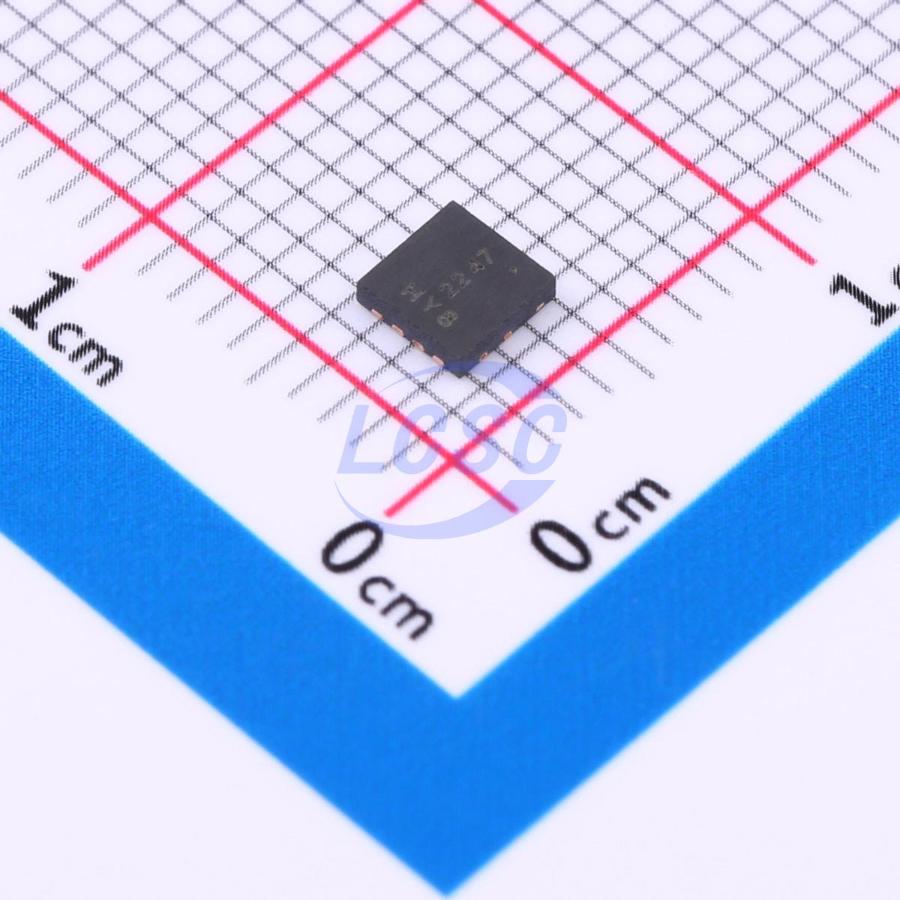

DMT8008LFG-7
N-Channel 80V 48A 23.5W Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantActive
MOSFET N-CH 80V 48A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMT8008LFG-7
- Store part #
- C2960360
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
127 in stock
#C2960360
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹215.03 | ₹215.03 |
| 10+ | ₹184.84 | ₹1,848.40 |
| 30+ | ₹165.94 | ₹4,978.20 |
| 100+ | ₹146.83 | ₹14,683.00 |
| 500+ | ₹137.92 | ₹68,960.00 |
| 1,000+ | ₹134.23 | ₹1,34,230.00 |
1 × ₹215.03
₹215.03
excl. GST
₹253.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMT8008LFG-7
₹215.03 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 48A
- Ciss-Input Capacitance
- 2.254nF
- Pd - Power Dissipation
- 23.5W
- Reverse Transfer Capacitance (Crss)
- 31pF
- RDS(on)
- 10.4mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 37.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.095 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlight Illumination - Power Management Functions - DC-DC Converter
Key features
- Low RDS(ON) — minimized conduction losses
- Excellent Qgd × RDS(ON) figure of merit (FOM)
- Advanced technology optimized for DC-DC converters
- Small, thermally efficient package for higher-density end products
- Occupies only 33% of the board area of an SO-8 package, enabling smaller end products
- 100% Unclamped Inductive Switching (UIS) tested during production — enhanced reliability and durability in end applications
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQS180ELNW-T1_GE3#C20346179VISHAY · PowerPAK1212-8SLW | VISHAY | PowerPAK1212-8SLW | 88 | ₹240.23 · 88 in stock | View |
 | CMSC100N10L#C55185728Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 215 | ₹34.52 · 215 in stock | View |
 | SISS32LDN-T1-GE3#C3279461VISHAY · PowerPAK1212-8SH | VISHAY | PowerPAK1212-8SH | 45 | ₹295.51 · 45 in stock | View |
 | FDMC007N08LCDC#C890917onsemi · PQFN-8(3.3x3.3) | onsemi | PQFN-8(3.3x3.3) | 10 | ₹409.61 · 10 in stock | View |
 | FDMC008N08C#C890919onsemi · PQFN-8(3.3x3.3) | onsemi | PQFN-8(3.3x3.3) | 16 | ₹138.21 · 16 in stock | View |
