DIODESDatasheet (PDF)

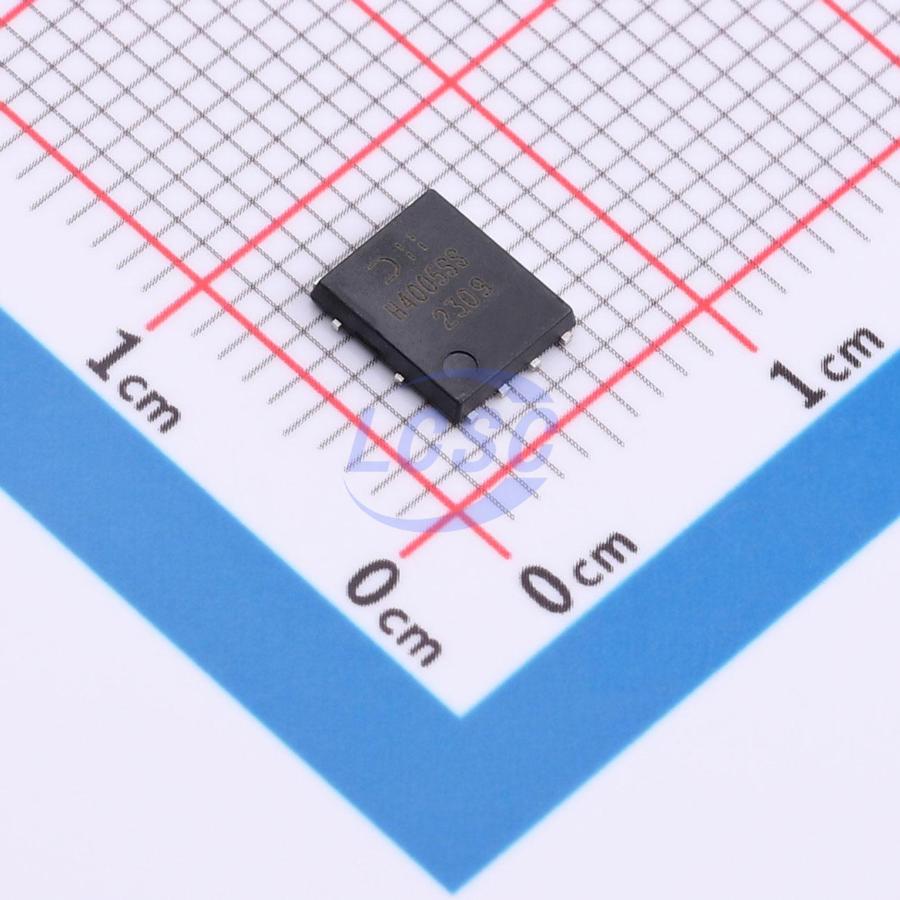

DMTH4005SPS-13
40V 100A 150W 3.7mΩ@10V 1 N-channel PowerDI5060-8 Single FETs, MOSFETs
PowerDI5060-8RoHSActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMTH4005SPS-13
- Store part #
- C5245449
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C5245449
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹436.76 | ₹436.76 |
| 10+ | ₹431.60 | ₹4,316.00 |
| 30+ | ₹427.95 | ₹12,838.50 |
| 100+ | ₹424.30 | ₹42,430.00 |
1 × ₹436.76
₹436.76
excl. GST
₹515.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMTH4005SPS-13
₹436.76 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 3.062nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 179.2pF
- RDS(on)
- 3.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 49.1nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.284 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Engine Management Systems
- Body Control Electronics
- DC-DC Converters
Key features
- Rated up to +175℃ — suitable for high ambient temperature environments
- 100% unclamped inductive switching — ensures greater reliability and durability in end applications
- Low RDS(ON) — minimizes power dissipation
- Low Qg — minimizes switching losses
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free. "Green" device
- This product meets JEDEC standards (as referenced in AEC-Q) for high reliability.
- Automotive-grade product is described in a separate datasheet (DMTH4005SPSQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HD510N060SG#C52204618R+O · PDFN-8(5x6) | R+O | PDFN-8(5x6) | 59,078 | ₹75.61 · 59,078 in stock | View |
 | BSC028N06LS3 G-VB#C20755473VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 20 | ₹252.90 · 20 in stock | View |
 | BSC031N06NS3 G-VB#C29778926VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 12 | ₹241.99 · 12 in stock | View |
 | BSC0702LS-VB#C55454386VBsemi Elec · DFN-8(5x6) | VBsemi Elec | DFN-8(5x6) | 5 | ₹206.80 · 5 in stock | View |
 | SIR662DP-T1-GE3-VB#C7525096VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 41 | ₹255.87 · 41 in stock | View |
