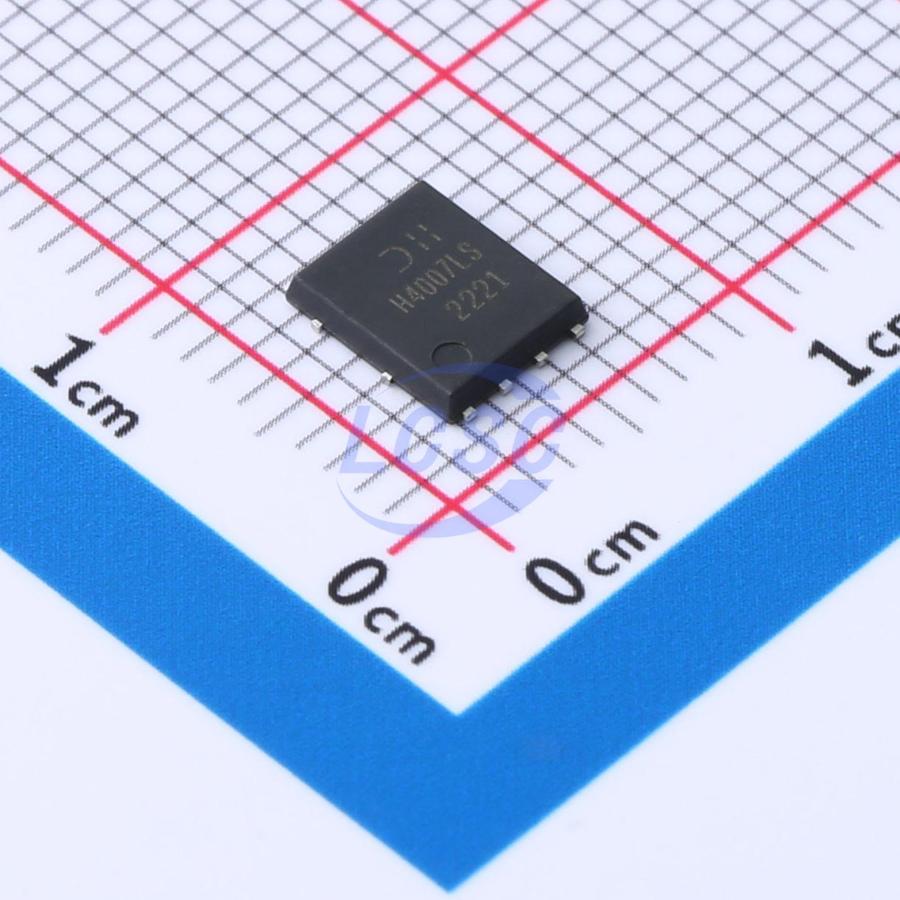

DMTH4007LPSQ-13
N-Channel 40V 85A 2.7W Surface Mount PowerDI5060-8
PowerDI5060-8ROHS3 CompliantActive
MOSFET N-CH 40V 85A PowerDI5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMTH4007LPSQ-13
- Store part #
- C3289394
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
66 in stock
#C3289394
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹187.07 | ₹187.07 |
| 10+ | ₹157.03 | ₹1,570.30 |
| 30+ | ₹140.69 | ₹4,220.70 |
| 100+ | ₹122.18 | ₹12,218.00 |
| 500+ | ₹113.90 | ₹56,950.00 |
| 1,000+ | ₹110.21 | ₹1,10,210.00 |
1 × ₹187.07
₹187.07
excl. GST
₹220.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMTH4007LPSQ-13
₹187.07 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 485pF
- Current - Continuous Drain(Id)
- 85A
- Ciss-Input Capacitance
- 1.895nF
- Pd - Power Dissipation
- 2.7W
- Reverse Transfer Capacitance (Crss)
- 20.9pF
- RDS(on)
- 9.8mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 29.1nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.259 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It complies with AEC-Q101 and supports PPAP, making it ideal for: motor control, DC-DC converters, and load switching.
Applications
- Motor control
- DC-DC converter
- Load switch
Key features
- Rated temperature up to +175°C for high ambient temperature environments
- 100% unclamped inductive switching tested for enhanced reliability and durability in end applications
- Thermally efficient package for reduced application operating temperature
- High conversion efficiency
- Low on-resistance RDS(ON) minimizes conduction losses
- Low input capacitance
- Fast switching speed
- Package height less than 1.1mm for slim and compact applications
- Lead-free finish, RoHS compliant
- Halogen- and antimony-free "Green" device
- DMTH4007LPSQ is suited for automotive applications requiring specific change control; the product is AEC-Q101 qualified, PPAP capable, and manufactured in an IATF 16949 certified facility.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP40N05GNK#C22466764Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | 3,280 | ₹15.55 · 3,280 in stock | View |
 | SP40N06NK#C41355044Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | 3,030 | ₹16.25 · 3,030 in stock | View |
 | HSBA4016#C701054HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 2,585 | ₹30.05 · 2,585 in stock | View |
 | DMTH4007LPS-13#C211373DIODES · PowerDI5060-8 | DIODES | PowerDI5060-8 | 47 | ₹104.20 · 47 in stock | View |
 | BSC070N10NS3G-ES#C39832216ElecSuper · PDFN5x6-8L | ElecSuper | PDFN5x6-8L | 115 | ₹67.00 · 115 in stock | View |
