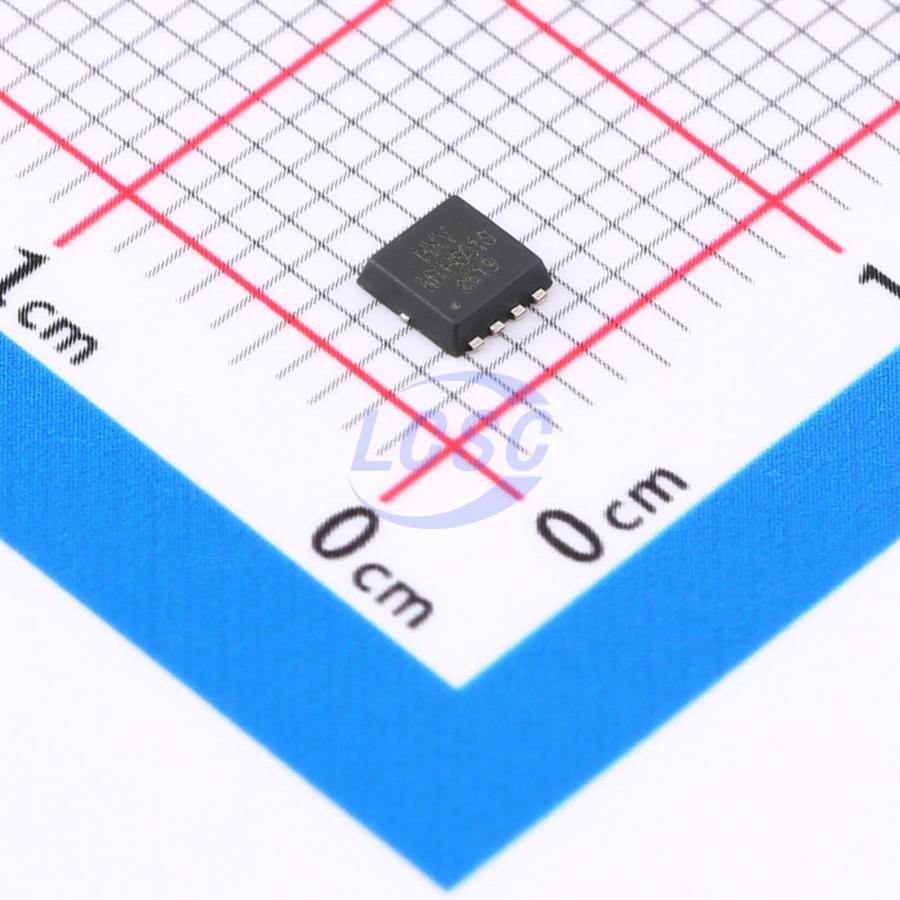

HXY MOSFETDatasheet (PDF)
DMTH6016LFVWQ-7-A-HXY
N-Channel 60V 40A 30W Surface Mount DFN-8L(3x3)
DFN-8L(3x3)ROHS CompliantActive
MOSFET N-CH 60V 40A DFN-8L(3x3)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMTH6016LFVWQ-7-A-HXY
- Store part #
- C48996537
- Package / case
- DFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
93 in stock
#C48996537
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.10 | ₹74.10 |
| 10+ | ₹59.28 | ₹592.80 |
| 30+ | ₹53.05 | ₹1,591.50 |
| 100+ | ₹45.10 | ₹4,510.00 |
| 500+ | ₹41.67 | ₹20,835.00 |
| 1,000+ | ₹39.52 | ₹39,520.00 |
1 × ₹74.10
₹74.10
excl. GST
₹87.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DMTH6016LFVWQ-7-A-HXY
₹74.10 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 230pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 930pF
- Pd - Power Dissipation
- 30W
- Reverse Transfer Capacitance (Crss)
- 8pF
- RDS(on)
- 12mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.071 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTTFS015N04CTAG-HXY#C48783745HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 45 | ₹33.15 · 45 in stock | View |
 | DMT6015LFV-7-HXY#C48996536HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 150 | ₹43.53 · 150 in stock | View |
 | DMTH6016LFVWQ-13-A-HXY#C48996538HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 72 | ₹55.84 · 72 in stock | View |
 | DMTH6016LFVW-13-HXY#C48996540HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 70 | ₹39.62 · 70 in stock | View |
 | AON7264E-HXY#C6285769HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 4,995 | ₹29.07 · 4,995 in stock | View |
