HXY MOSFETDatasheet (PDF)

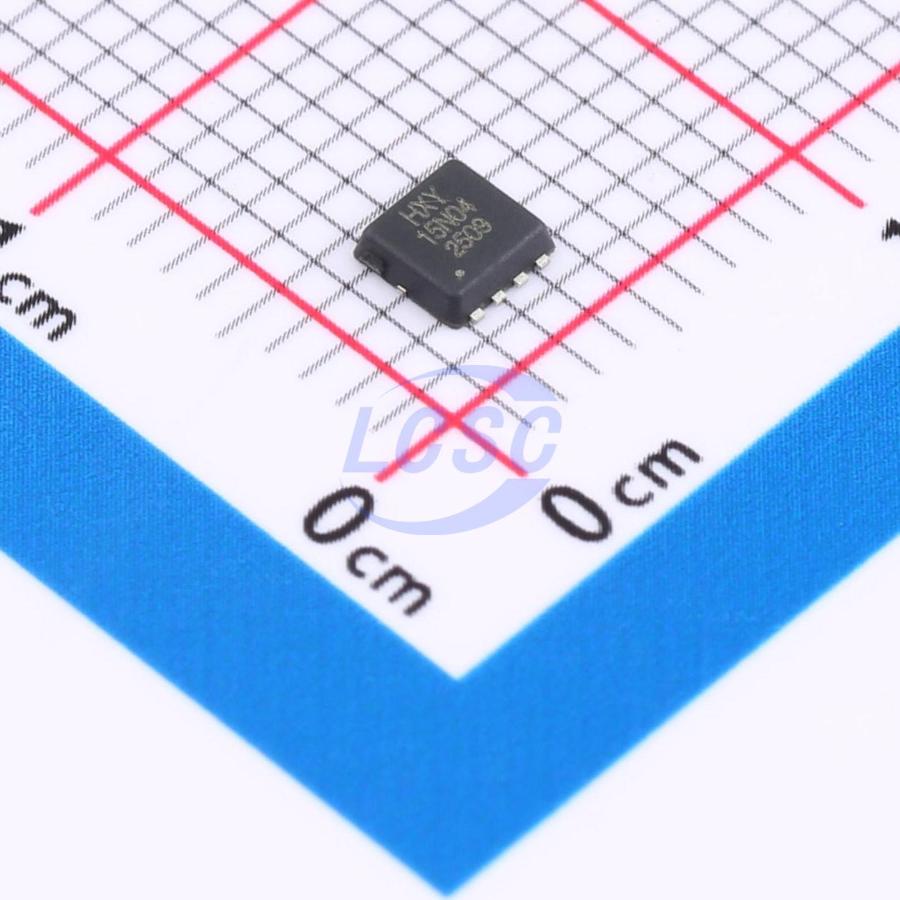

NTTFS015N04CTAG-HXY
N-Channel 60V 40A 30W Surface Mount DFN-8L(3x3)
DFN-8L(3x3)ROHS CompliantActive
MOSFET N-CH 60V 40A DFN-8L(3x3)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTTFS015N04CTAG-HXY
- Store part #
- C48783745
- Package / case
- DFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C48783745
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.15 | ₹165.75 |
| 50+ | ₹26.04 | ₹1,302.00 |
| 150+ | ₹22.98 | ₹3,447.00 |
| 500+ | ₹19.17 | ₹9,585.00 |
| 2,500+ | ₹17.48 | ₹43,700.00 |
| 5,000+ | ₹16.46 | ₹82,300.00 |
5 × ₹33.15
₹165.75
excl. GST
₹195.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NTTFS015N04CTAG-HXY
₹165.75 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 230pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 930pF
- Pd - Power Dissipation
- 30W
- Reverse Transfer Capacitance (Crss)
- 8pF
- RDS(on)
- 12mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.061 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMT6015LFV-7-HXY#C48996536HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 150 | ₹43.53 · 150 in stock | View |
 | DMTH6016LFVWQ-7-A-HXY#C48996537HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 93 | ₹74.10 · 93 in stock | View |
 | DMTH6016LFVWQ-13-A-HXY#C48996538HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 72 | ₹55.84 · 72 in stock | View |
 | DMTH6016LFVW-13-HXY#C48996540HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 70 | ₹39.62 · 70 in stock | View |
 | AON7264E-HXY#C6285769HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 4,995 | ₹29.07 · 4,995 in stock | View |
