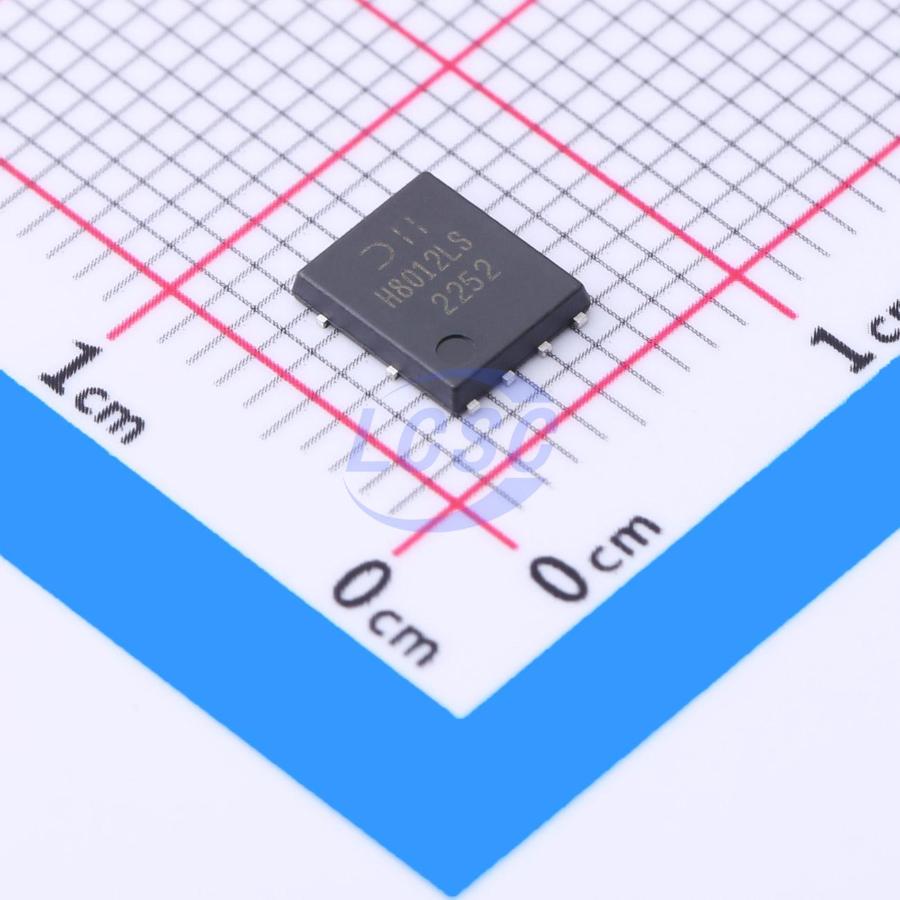

DMTH8012LPSQ-13
N-Channel 80V 50A 100W Surface Mount TDFN-8-Power
TDFN-8-PowerROHS3 CompliantActive
MOSFET N-CH 80V 50A TDFN-8-Power
- Manufacturer
- DIODES
- Manufacturer part #
- DMTH8012LPSQ-13
- Store part #
- C2960358
- Package / case
- TDFN-8-Power
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
233 in stock
#C2960358
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹224.80 | ₹224.80 |
| 10+ | ₹188.53 | ₹1,885.30 |
| 30+ | ₹165.94 | ₹4,978.20 |
| 100+ | ₹142.70 | ₹14,270.00 |
| 500+ | ₹132.27 | ₹66,135.00 |
| 1,000+ | ₹127.72 | ₹1,27,720.00 |
1 × ₹224.80
₹224.80
excl. GST
₹265.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMTH8012LPSQ-13
₹224.80 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 2.051nF
- Pd - Power Dissipation
- 100W
- Reverse Transfer Capacitance (Crss)
- 24.6pF
- RDS(on)
- 21mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 46.8nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It complies with the AEC-Q101 standard with PPAP support, making it ideal for: synchronous rectifiers, backlight lighting, power management functions, DC-DC converters
Applications
- Synchronous Rectifier
- Backlight Illumination
- Power Management Functions
- DC-DC Converter
Key features
- Rated up to +175°C for high ambient temperature environments
- High conversion efficiency
- Low on-resistance RDS(ON) to minimize conduction losses
- Low input capacitance
- Fast switching speed
- Lead-free finish, RoHS compliant
- Halogen- and antimony-free "Green" device
- Suitable for automotive applications requiring specific change control; AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDMS86150A#C891089onsemi · PowerTDFN-8 | onsemi | PowerTDFN-8 | 10 | ₹967.23 · 10 in stock | View |
 | ISC080N10NM6ATMA1#C3288845Infineon · TDSON-8FL | Infineon | TDSON-8FL | 1 | ₹285.12 · 1 in stock | View |
 | ISZ080N10NM6ATMA1#C3289314Infineon · TSDSON-8FL | Infineon | TSDSON-8FL | 60 | ₹743.00 · 60 in stock | View |
 | BSC152N15LS5ATMA1#C22442465Infineon · TDSON-8 | Infineon | TDSON-8 | 9 | ₹387.06 · 9 in stock | View |
 | IAUCN08S7N034ATMA1#C36336377Infineon · TSDSO-8 | Infineon | TSDSO-8 | 100 | ₹317.41 · 100 in stock | View |
