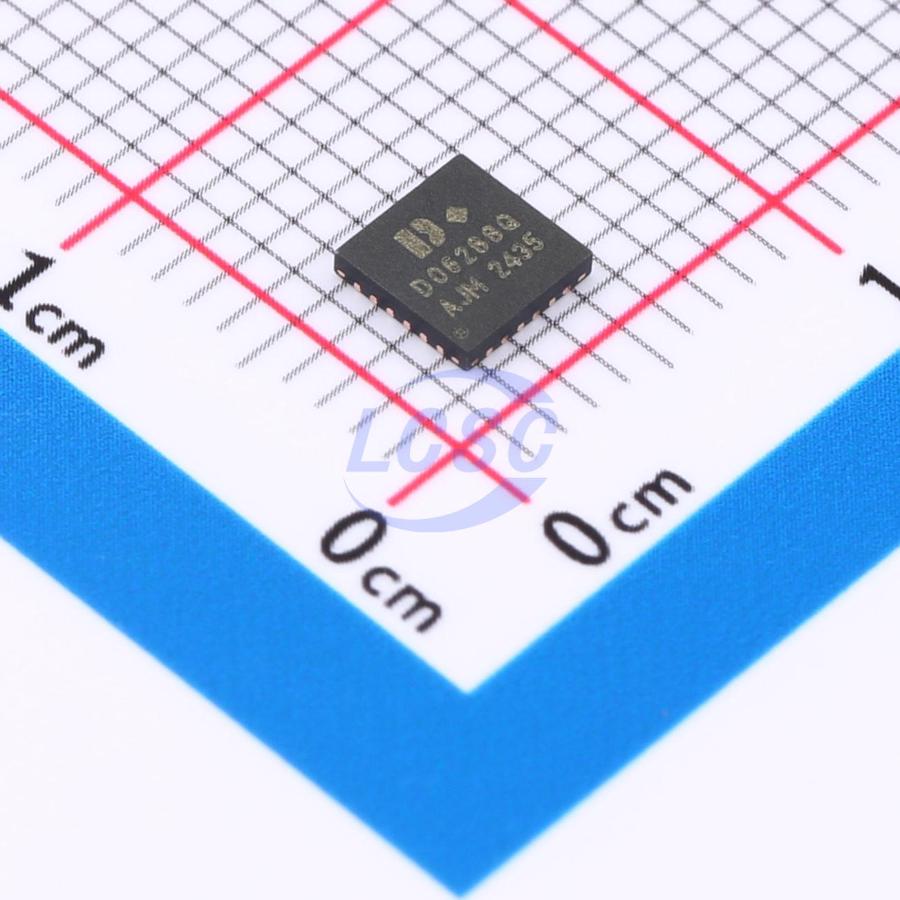

DO6288Q
8V~20V 1.5A 1.2A QFN-24-EP(4x4) Gate Drivers RoHS
Three-phase half-bridge MOSFET/IGBT gate driver
- Manufacturer
- DOINGTER
- Manufacturer part #
- DO6288Q
- Store part #
- C42386238
- Package / case
- QFN-24-EP(4x4)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,269 in stock
#C42386238
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹39.33 | ₹39.33 |
| 10+ | ₹34.33 | ₹343.30 |
| 30+ | ₹31.95 | ₹958.50 |
| 100+ | ₹29.33 | ₹2,933.00 |
| 500+ | ₹28.03 | ₹14,015.00 |
| 1,000+ | ₹27.39 | ₹27,390.00 |
1 × ₹39.33
₹39.33
excl. GST
₹46.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DO6288Q
₹39.33 for 1 + GST
Specifications
- Low Level Delay Time
- 150ns
- High Level Delay Time
- 120ns
- Quiescent Current
- 230uA
- Voltage - Supply
- 8V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
The DO6288Q is a high voltage, high speed power MOSFET drivers with dependent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver crossconduction. The floating channel can be used to drive an N-channel power MOSFET in the high-side configuration which operates up to 200 V. The DO6288Q is a three-phase high-voltage, high-speed power MOSFET high-low driver chip with separate highside and low-side reference output channels. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver crossconduction. The floating channel can be used to drive an N-channel power MOSFET in the highside configuration which operates up to 250 V, The floating channel requires additional bootstrap circuit support. In addition, both the high side and the low side of the DO6288Q include undervoltage protection.
Applications
- Motor Control
- Air Conditioners/ Washing Machines
- General Purpose Inverters
- Micro/Mini Inverter Drives
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +250V
- 3.3V, 5V and 15V input logic compatible
- dV/dt noise Immunity ±50 V/nsec
- Allowable negative Vs capability: -9V
- Gate drive supply range from 8V to 20V
- Cross-conduction prevention logic
- Deadtime: 200ns
- Matched propagation delay for both channels
- Wide operating temperature range -40°C~125°C
- Typically output Source/Sink current capability: 1.2A/1.5A
- RoSH compatible
