DIODESDatasheet (PDF)

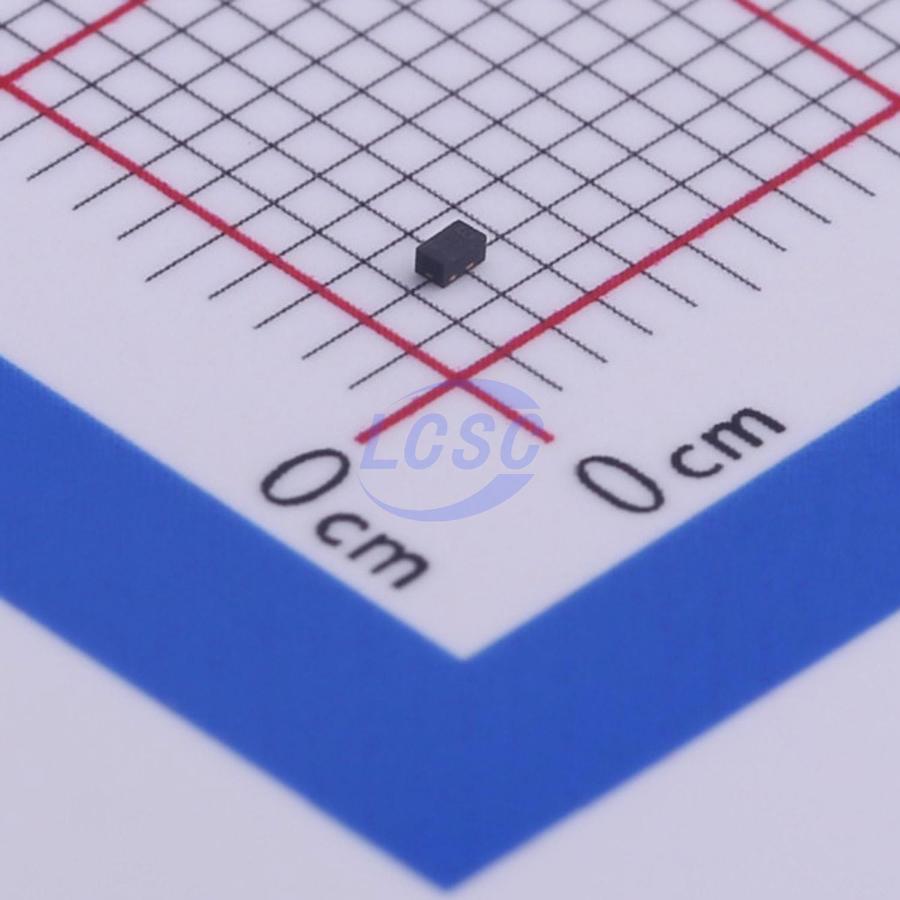

DRTR5V0U1LP-7B
10VC Clamp 5A@8/20us Ipp ESD DIODE DFN1006-2
DFN1006-2ROHS3 CompliantActive
ESD DIODE 5.5VWM 10VC DFN1006-2
- Manufacturer
- DIODES
- Manufacturer part #
- DRTR5V0U1LP-7B
- Store part #
- C444970
- Package / case
- DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,895 in stock
#C444970
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.93 | ₹79.65 |
| 50+ | ₹13.24 | ₹662.00 |
| 150+ | ₹11.91 | ₹1,786.50 |
| 500+ | ₹10.89 | ₹5,445.00 |
| 2,500+ | ₹10.09 | ₹25,225.00 |
| 5,000+ | ₹9.68 | ₹48,400.00 |
5 × ₹15.93
₹79.65
excl. GST
₹93.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DRTR5V0U1LP-7B
₹79.65 for 5 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.005 g
Overview
Key features
- IEC 61000 - 4 - 2 (ESD): Air ±15 kV, Contact ±8 kV
- 1 Channel of ESD Protection
- Low Channel Input Capacitance of 1.0 pF Typical
- Low Profile Package (0.55 mm max) and Ultra - small PCB Footprint Area (1.08 * 0.68 mm max) Suitable for Compact Portable Electronics
- Typically Used at High Speed Ports such as USB 2.0, IEEE1394, Serial ATA, DVI, HDMI, PCI
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC - Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ESD5V0U03-1006#C970007TECH PUBLIC · DFN1006-2 | TECH PUBLIC | DFN1006-2 | 1,890 | ₹6.36 · 1,890 in stock | View |
